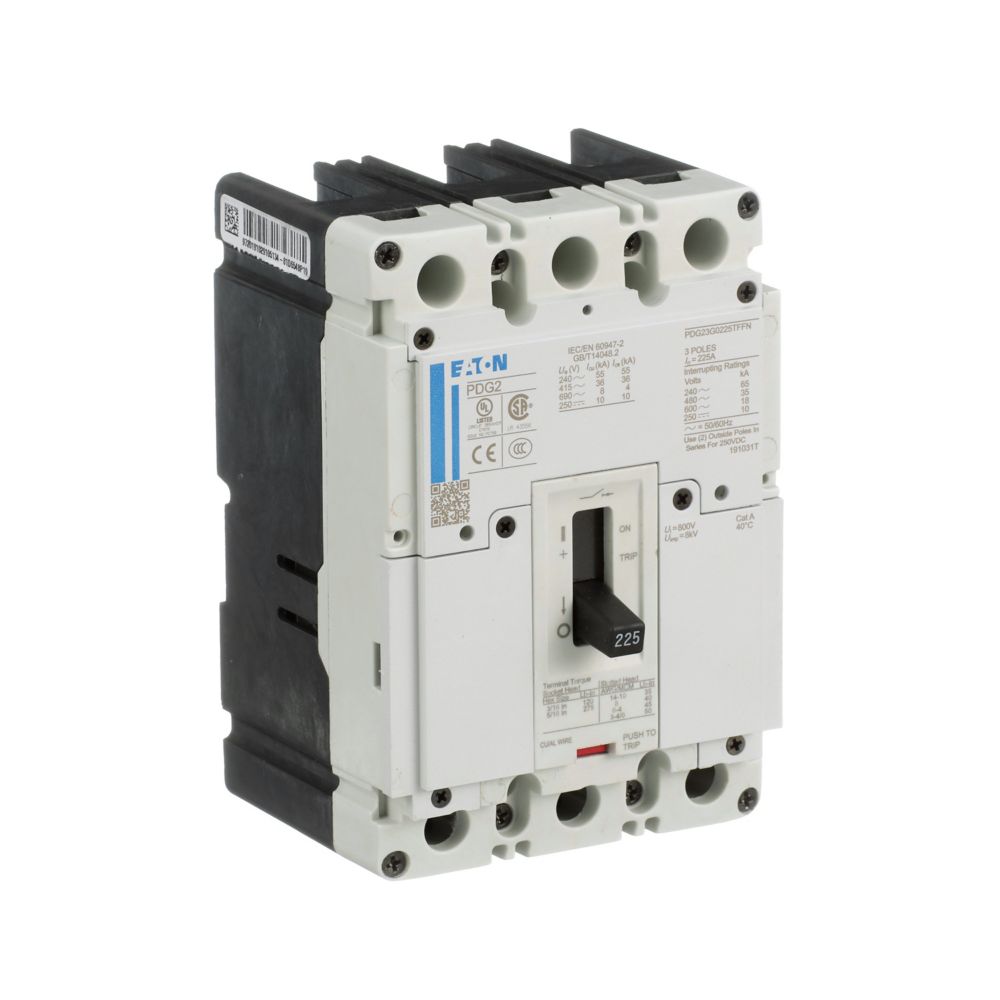

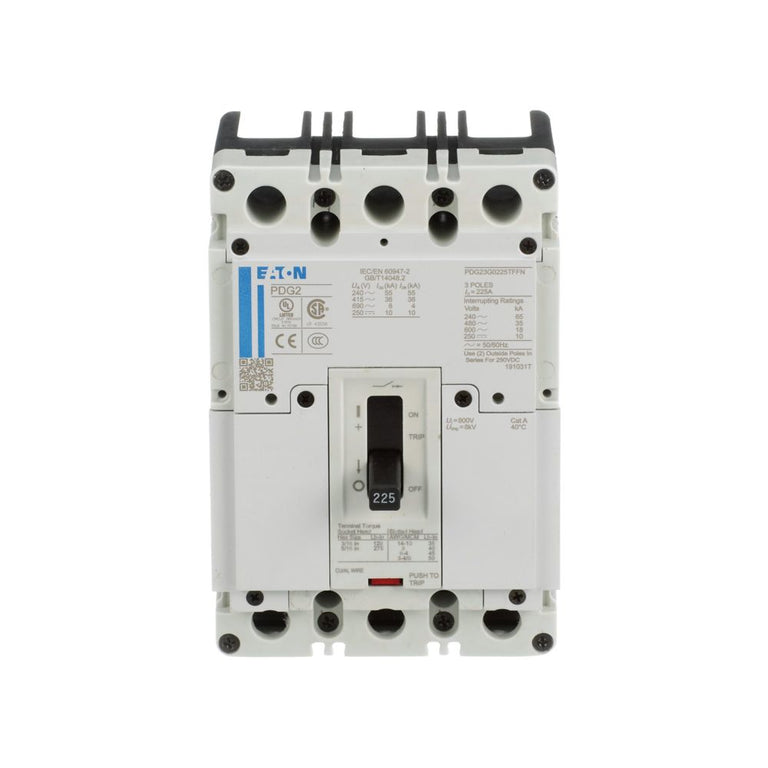

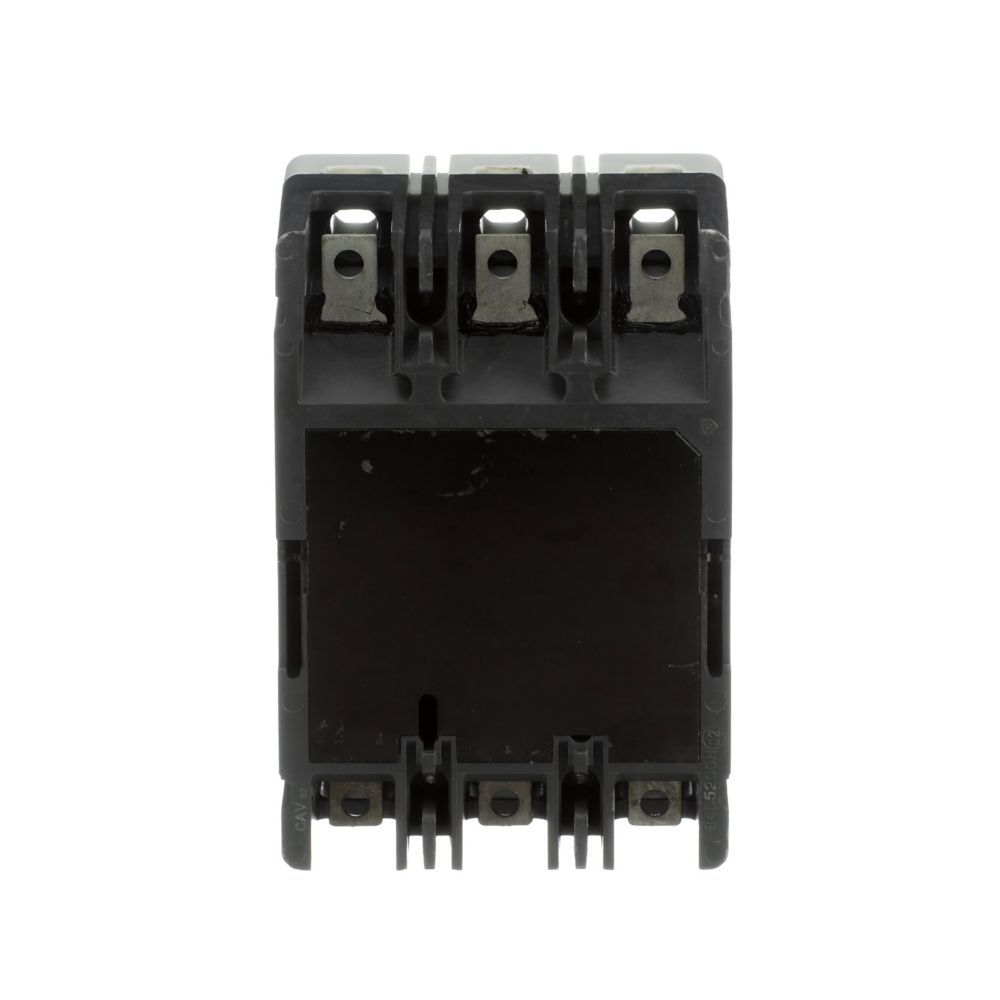

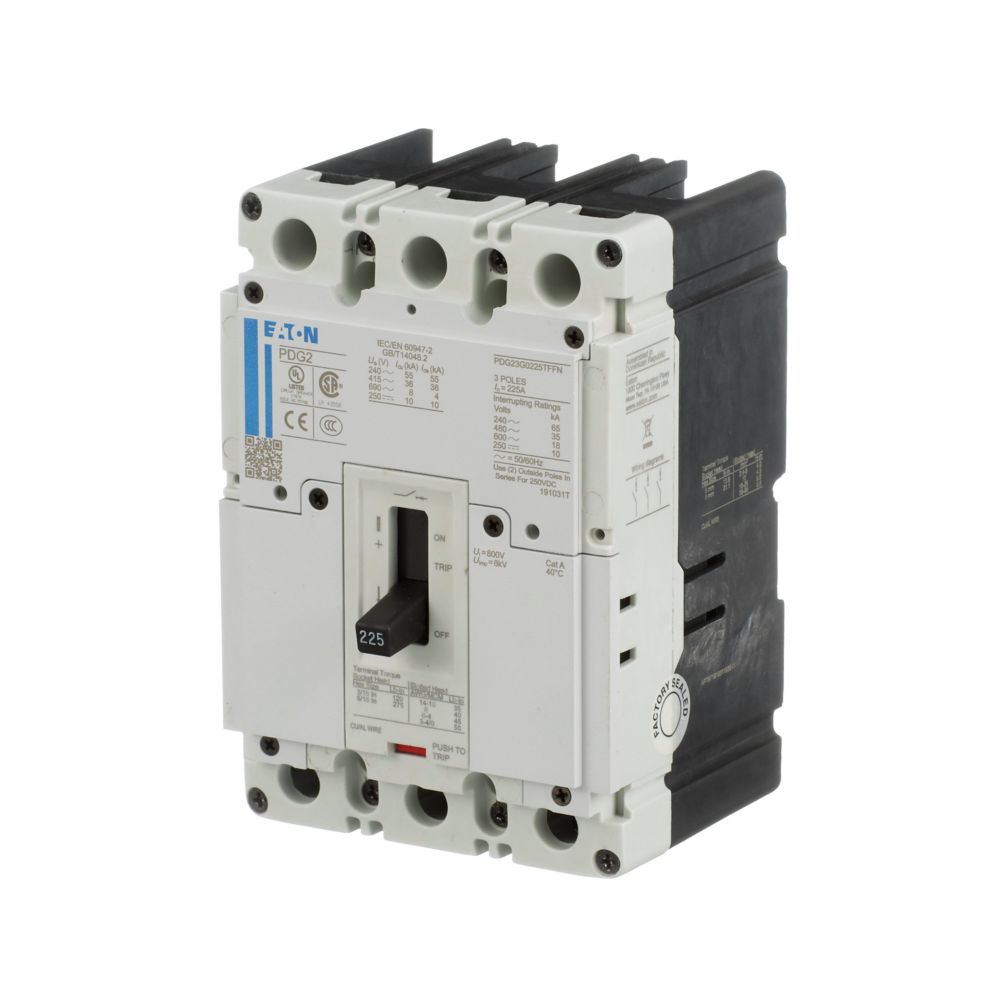

Eaton PDG23F0050TFFJ 50 Amp Molded Case Circuit Breaker – 3 Pole – 480 V – 25 kA – Fixed Thermal-Magnetic – Power Defense

The Eaton PDG23F0050TFFJ is a globally rated Power Defense molded case circuit breaker featuring Frame Size 2 construction, a three-pole configuration, and a 50 Amp rating. It is equipped with a fixed-fixed thermal-magnetic trip unit and standard line and load terminals. The breaker is designed for circuit protection and power distribution applications and is part of the Eaton Power Defense PD-2 frame family, which supports ratings from 15 A through 225 A and multiple trip unit configurations.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Power Defense
• Frame Size: Frame 2
• Catalog Number / MPN: PDG23F0050TFFJ
• Primary Rating: 50 Amp
• Poles / Configuration: 3 Pole
• Voltage: 480 V
• Interrupting Rating: 25 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Fixed-Fixed
• Terminals: Standard Line and Load
• Global Rating: Globally Rated
• Frame Rating Range: 15 A–225 A

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: PDG23F0050TFFJ
• Series: Power Defense
• Frame: Frame 2
• Current Rating: 50 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Fixed-Fixed
• Terminals: Standard Line and Load
• UPC: 786679243633

Compatibility

The Eaton PDG23F0050TFFJ is designed for compatible Eaton Power Defense Frame 2 electrical distribution and circuit protection applications. Frame Size 2 breakers support ratings from 15 A through 225 A and can be configured with thermal-magnetic or electronic PXR trip units. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and terminal requirements before installation.
