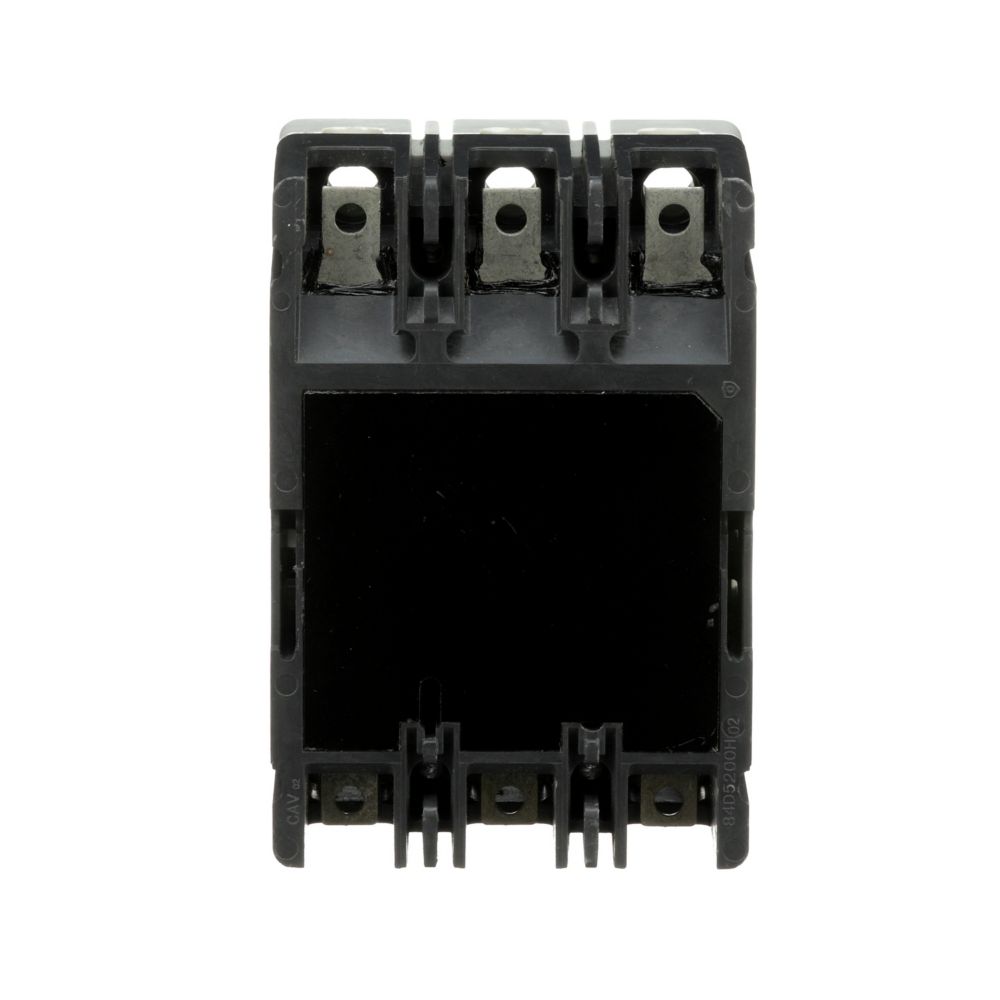

Eaton PDG23M0100TFFJ Molded Case Circuit Breaker – 100A – 3-Pole – 480V – 65kA @ 480V – Fixed Thermal-Magnetic – Power Defense Frame 2

The Eaton PDG23M0100TFFJ is a 100A, 3-pole molded case circuit breaker from the Eaton Power Defense Frame Size 2 family. It features a fixed-fixed thermal-magnetic trip unit and is designed for a wide range of circuit protection and power distribution applications.

The breaker provides a 65kA interrupting rating at 480V and is factory configured with a trip unit. Power Defense Frame Size 2 breakers support ratings from 15A through 225A and are available with fixed-fixed thermal-magnetic and PXR electronic trip units. Depending on configuration, the platform supports options such as ground-fault protection, current limiting, energy metering, communications, breaker health indication, and zone-selective interlocking.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Power Defense
• Frame Size: Frame 2
• Catalog No.: PDG23M0100TFFJ
• Current Rating: 100A
• Number of Poles: 3-Pole
• Voltage Rating: 480V
• Interrupting Rating: 65kA @ 480V
• Trip Unit Type: Thermal-Magnetic
• Trip Configuration: Fixed-Fixed
• Line Connection: Standard Line
• Load Connection: Standard Load
• Trip Unit: Factory Configured
• Frame Size Range: 15A–225A
• Application: Circuit Protection and Power Distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): PDG23M0100TFFJ
• Catalog Number: PDG23M0100TFFJ
• Product Family: Eaton Power Defense
• Frame: Frame 2
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: PDG23M0100TFFJ
• Breaker Configuration: 3-Pole, 100A
• Related Configuration: PDG2X3T100
• UPC:786679278307

Compatibility:

Designed for use with compatible Eaton Power Defense Frame Size 2 electrical distribution equipment. Frame Size 2 breakers are available in ratings from 15A through 225A with multiple trip-unit options, including fixed-fixed thermal-magnetic and PXR electronic trip units.

Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, trip-unit requirements, terminal configuration, and installation requirements before installation.
