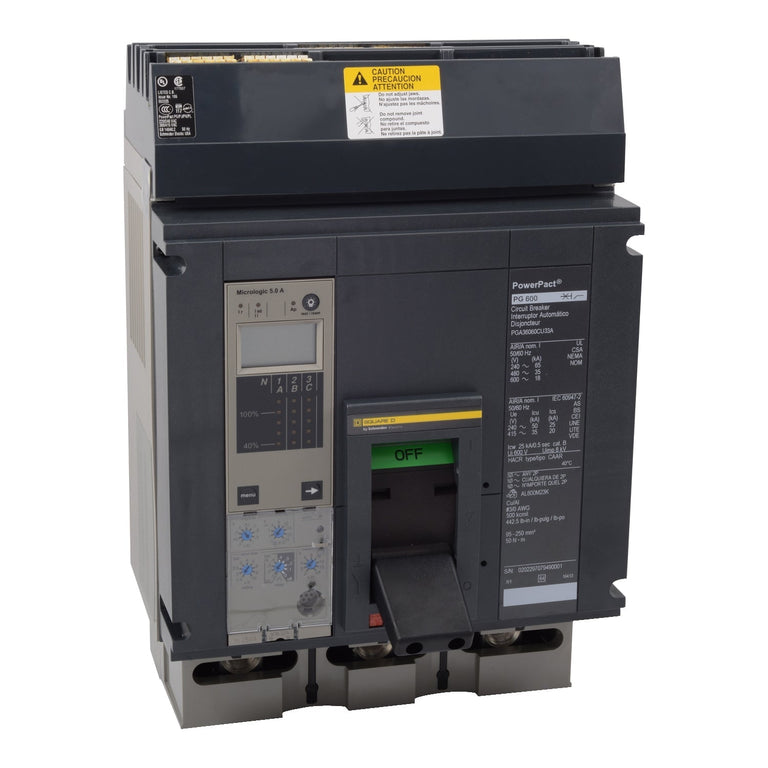

Square D PowerPact PGA36060CU33A 600 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 35 kA @ 480V – PGA Frame

The Square D PowerPact PGA36060CU33A is a 600A, 3-pole molded case circuit breaker designed for three-phase electrical distribution systems. It features a 600V rating and a 35 kA interrupting capacity at 480V. The breaker is 100% rated and equipped with a solid-state electronic Micrologic 5.0 interchangeable standard trip unit, providing LSI protection (Long-Time, Short-Time, and Instantaneous). Its I-Line plug-in configuration supports installation in compatible Square D electrical distribution equipment.

Specifications

• Brand: Schneider Electric / Square D
• Product Series: PowerPact
• Type: PGA
• Model / MPN: PGA36060CU33A
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 600A
• Poles: 3 Pole
• Phase: 3 Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Capacity: 35 kA @ 480V
• Interrupting Class: Standard Interrupting
• Mounting / Connection: I-Line Style Plug-In
• Rating: 100% Rated
• Trip Unit: Micrologic 5.0 Interchangeable Standard Trip
• Trip Functions: LSI – Long-Time, Short-Time, and Instantaneous
• Trip Technology: Solid-State Electronic

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: PGA36060CU33A
• Product Family: PowerPact
• Breaker Type: PGA
• UPC:3606486285510

Compatibility

Designed for compatible Square D PowerPact I-Line panelboards and switchboards supporting 600A, 3-pole, 100%-rated breakers with matching electrical and mounting configurations.

Certifications

• Certification: UL Listed
