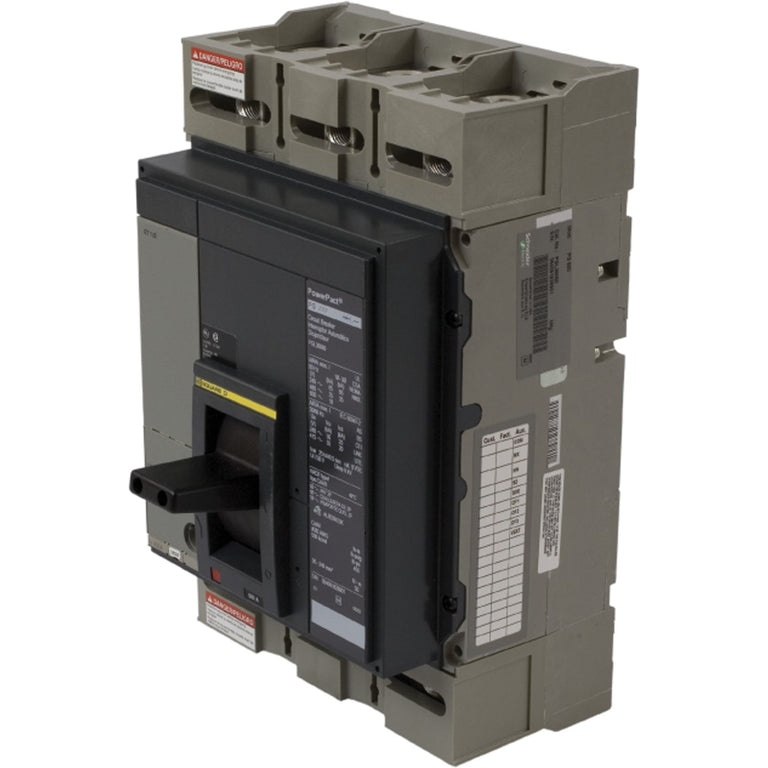

Square D PowerPact PGL36025U31A 250 Amp Molded Case Circuit Breaker – 3 Pole – 600V AC – 35 kA @ 480V – PGL Frame

The Square D PowerPact PGL36025U31A is a 250A, three-pole molded case circuit breaker designed for three-phase electrical distribution systems. It features a feed-through connection configuration and an interchangeable Micrologic Standard 3.0 solid-state electronic trip unit. Its LI protection provides long-time and instantaneous trip functions for overload and short-circuit protection. Line- and load-side lug terminals are included.

Specifications

• Brand: Schneider Electric / Square D
• Product Series: PowerPact
• Circuit Breaker Type: PGL
• Amperage Rating: 250A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 600V AC
• Interrupting Capacity: 35 kA @ 480V AC
• Interrupting Class: Standard interrupting capacity
• Connection Type: Feed-through
• Trip Unit: Micrologic Standard 3.0
• Trip Unit Type: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Protection Technology: Solid-state electronic
• Terminals: Line- and load-side lug terminals included

Part Numbers & Identification

• Manufacturer Part Number (MPN): PGL36025U31A
• Brand: Square D
• Product Series: PowerPact
• Type: PGL
• UPC:785901621959

Compatibility

Designed for compatible Square D PowerPact PGL-frame installations requiring a 250A, three-pole breaker with Micrologic Standard 3.0 electronic LI protection. The feed-through configuration and supplied line- and load-side lugs support integration into compatible electrical distribution equipment.

Certifications

• Certification: UL Listed
