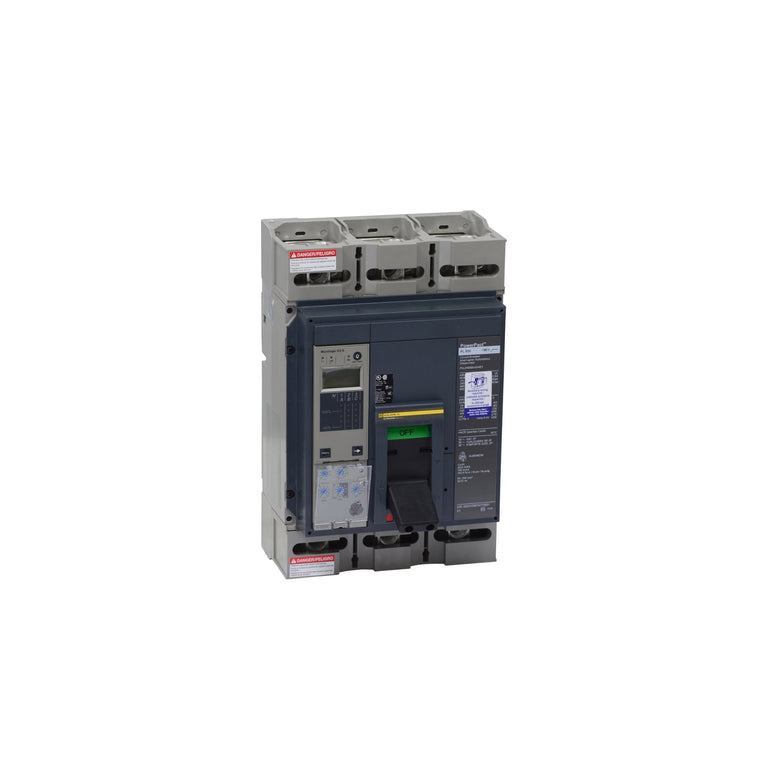

Square D PowerPact PGL36060CU44A 600 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 35 kA @ 480V – PGL Frame

The Square D PowerPact PGL36060CU44A is a 600A, 3-pole molded case circuit breaker designed for three-phase electrical distribution systems. It features a 600V rating, 35 kA interrupting capacity at 480V, and a 100%-rated design. The breaker is equipped with an interchangeable Micrologic Ammeter 6.0A trip unit, providing LSIG protection (Long-Time, Short-Time, Instantaneous, and Ground Fault). Its feed-through configuration includes line- and load-side lug terminals for connection in compatible Square D PowerPact equipment.

Specifications

• Brand: Schneider Electric / Square D
• Product Series: PowerPact
• Type: PGL
• Model / MPN: PGL36060CU44A
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 600A
• Poles: 3 Pole
• Phase: 3 Phase
• Voltage Rating: 600V
• Interrupting Capacity: 35 kA @ 480V
• Interrupting Class: Standard Interrupting
• Rating: 100% Rated
• Configuration: Feed-Through
• Trip Unit: Micrologic Ammeter 6.0A, Interchangeable
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground Fault
• Terminals: Line- and Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: PGL36060CU44A
• Product Family: PowerPact
• Breaker Type: PGL
• UPC:785901748175

Compatibility

Designed for compatible Square D PowerPact electrical distribution equipment supporting 600A, 3-pole, 100%-rated breakers with matching voltage, interrupting capacity, and feed-through configuration.

Certifications

• Certification: UL Listed
