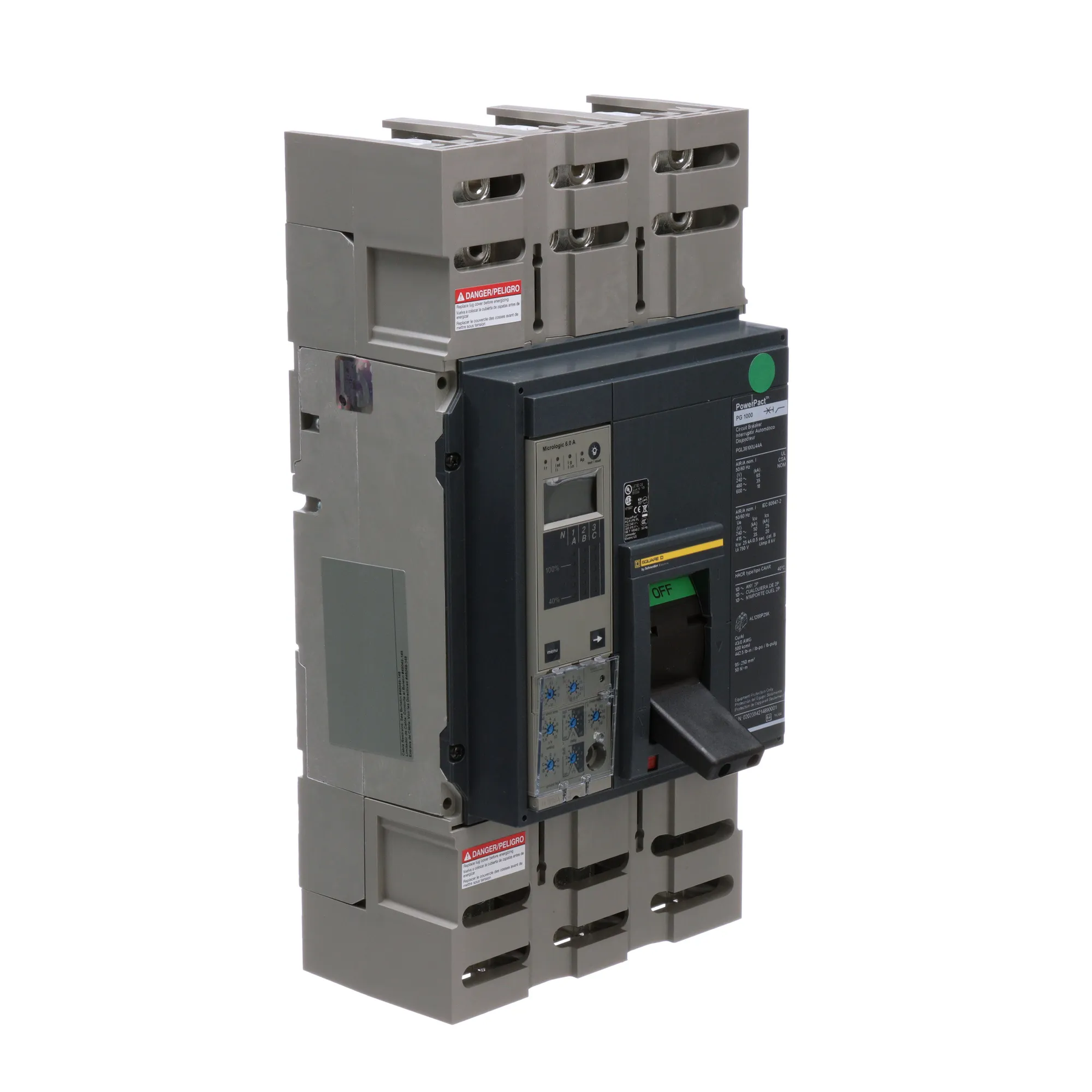

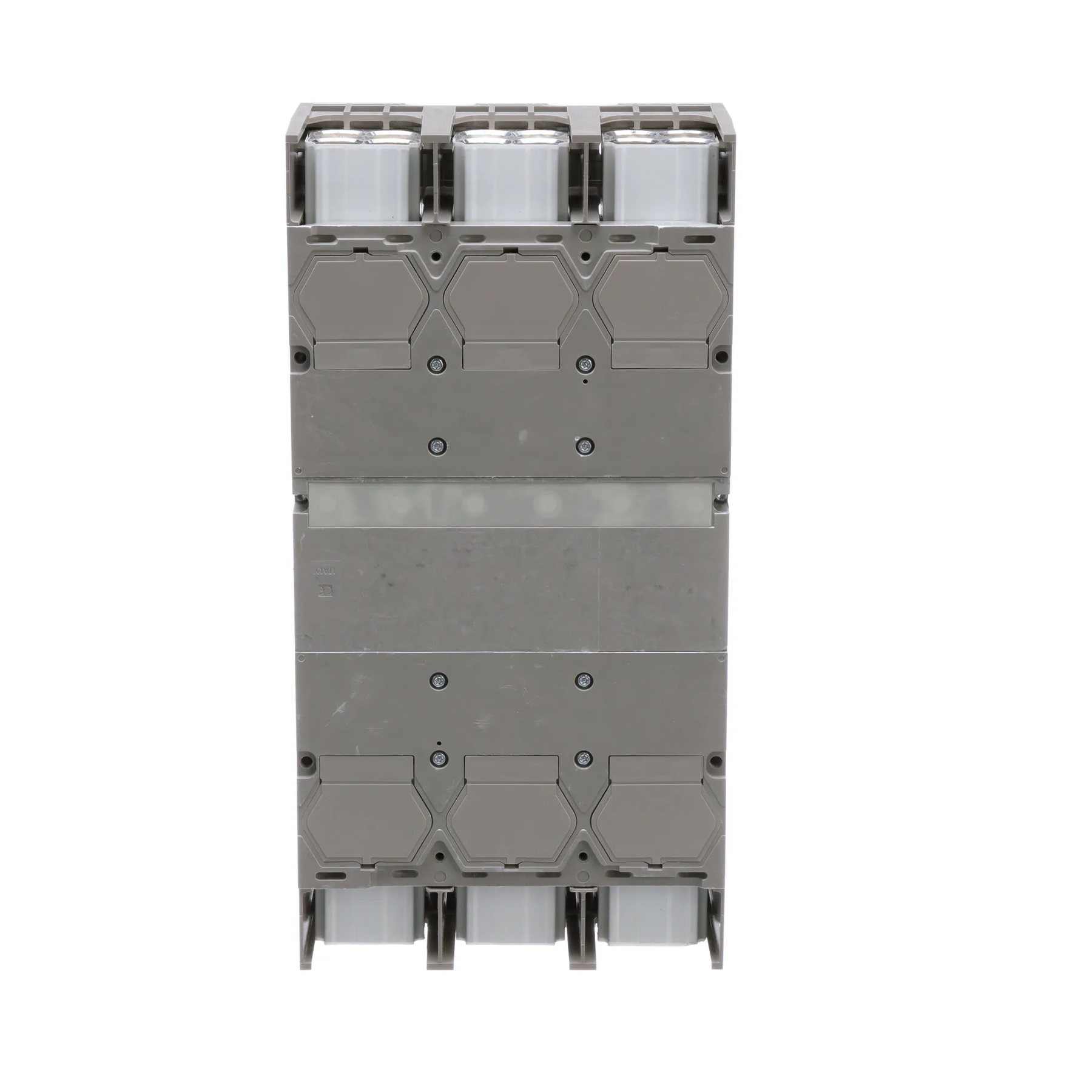

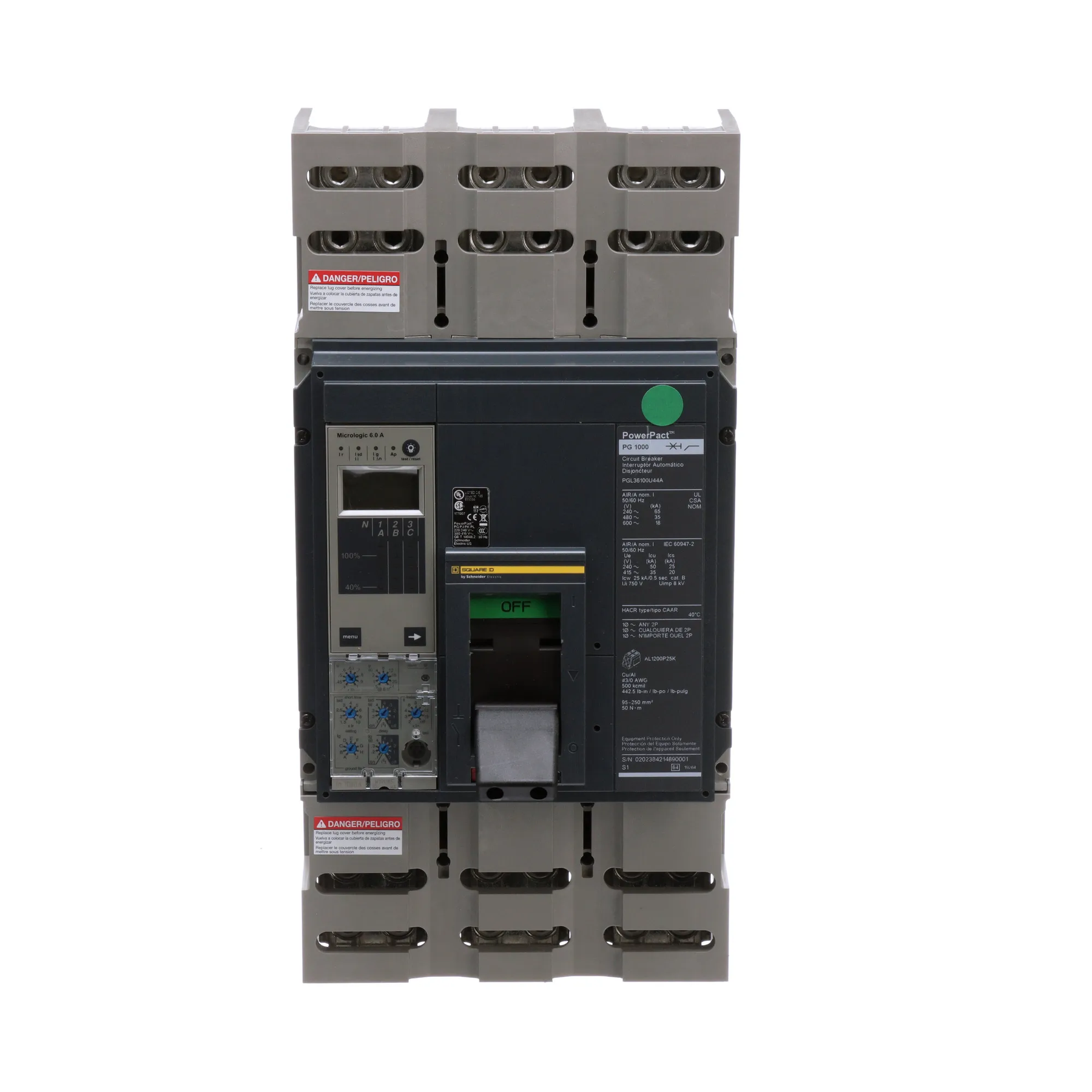

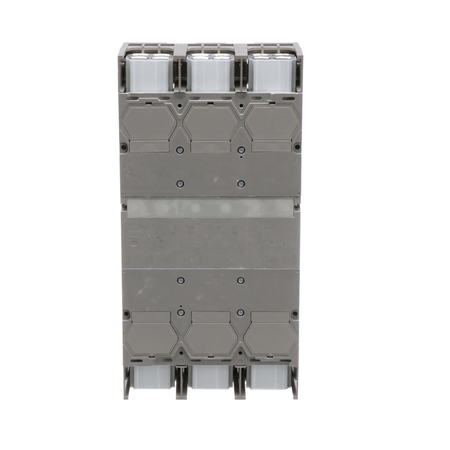

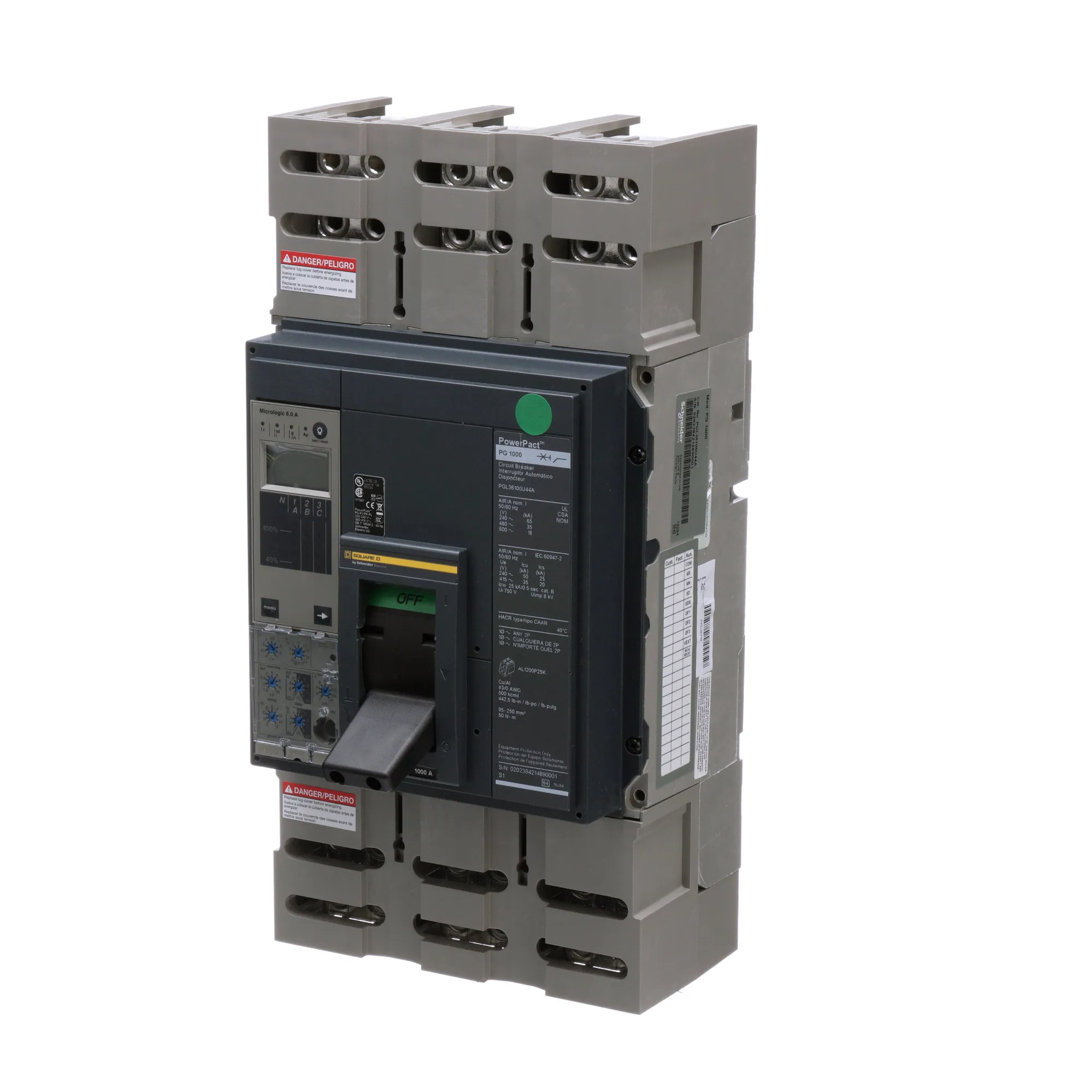

Square D PGL36100U44A 1000 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Feed-Thru – PowerPact Series

The Schneider Electric / Square D PGL36100U44A is a 1000 Amp, 3-pole, 3-phase molded case circuit breaker from the PowerPact Type PGL Series. It is rated for 600 V with a 35 kA interrupting capacity at 480 V and features standard interrupting capacity. The breaker uses a solid-state electronic Micrologic interchangeable ammeter 6.0A trip unit with LSIG protection functions and includes line and load-side lug terminals. It is designed for feed-thru mounting.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: PGL
• Catalog Number / MPN: PGL36100U44A
• Primary Rating: 1000 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Solid-State Electronic
• Trip Unit: Micrologic Interchangeable Ammeter 6.0A
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous and Ground Fault
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: PGL36100U44A
• Series: PowerPact
• Type: PGL
• Current Rating: 1000 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Micrologic Interchangeable Ammeter 6.0A
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminals: Line & Load-Side Lug Terminals
• UPC: 785901912590

Compatibility

The Square D PGL36100U44A is designed for compatible Schneider Electric / Square D PowerPact Type PGL electrical distribution applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, Micrologic trip unit requirements, and terminal requirements before installation.

Certifications

• UL Listed
