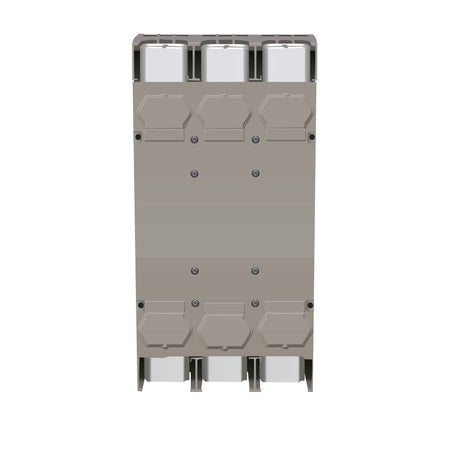

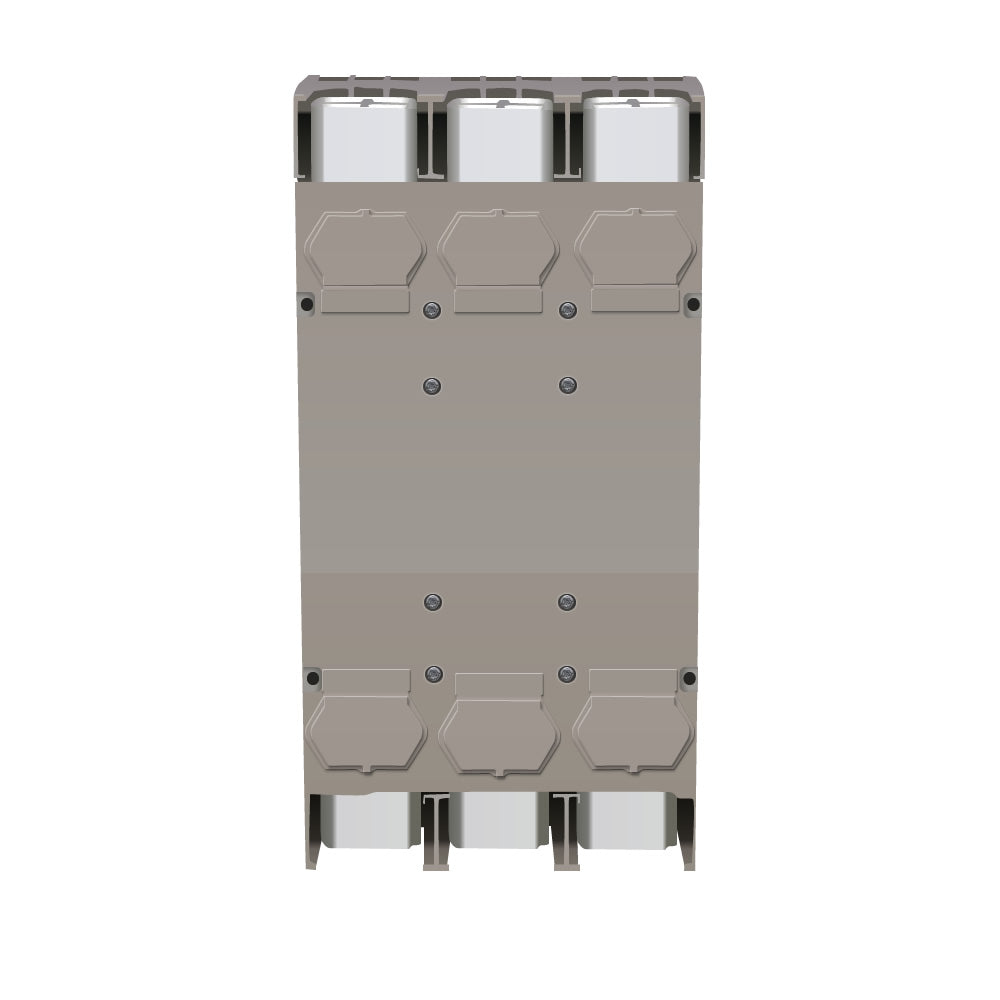

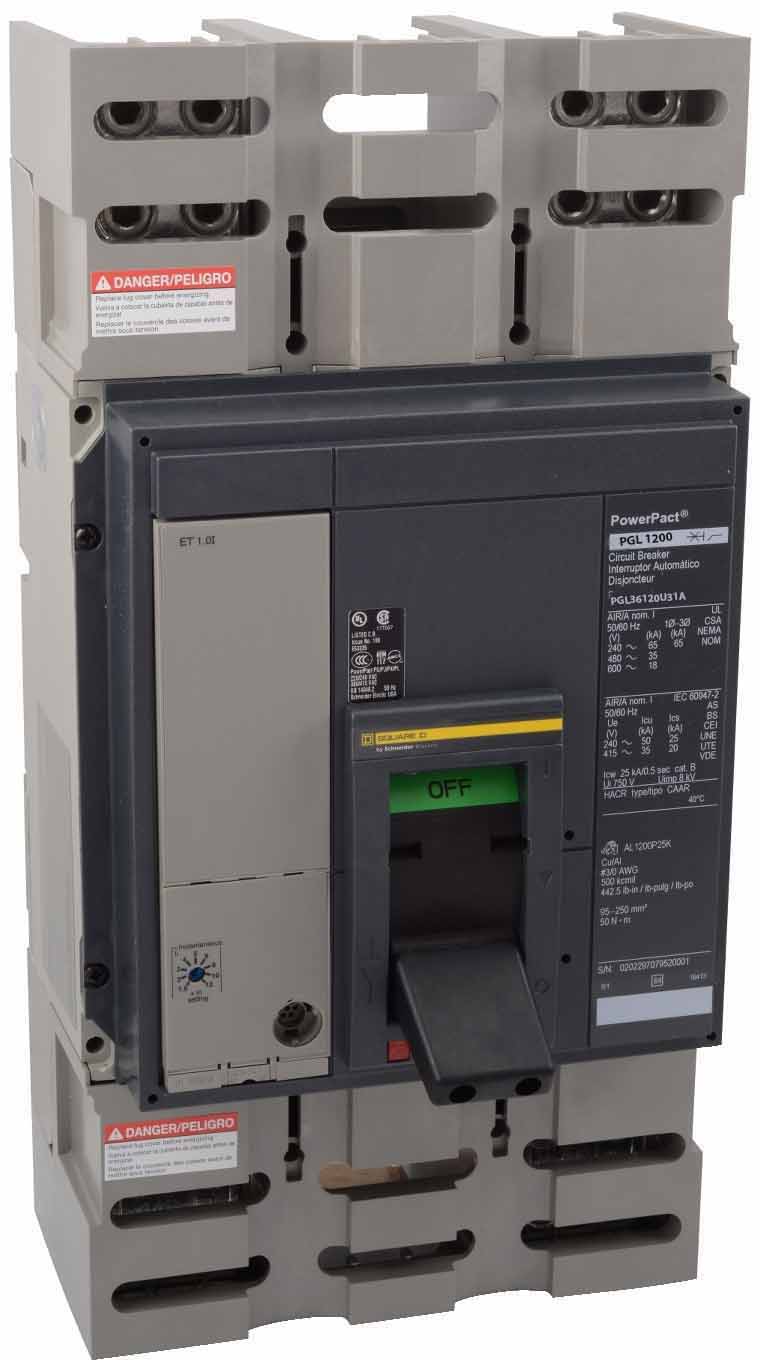

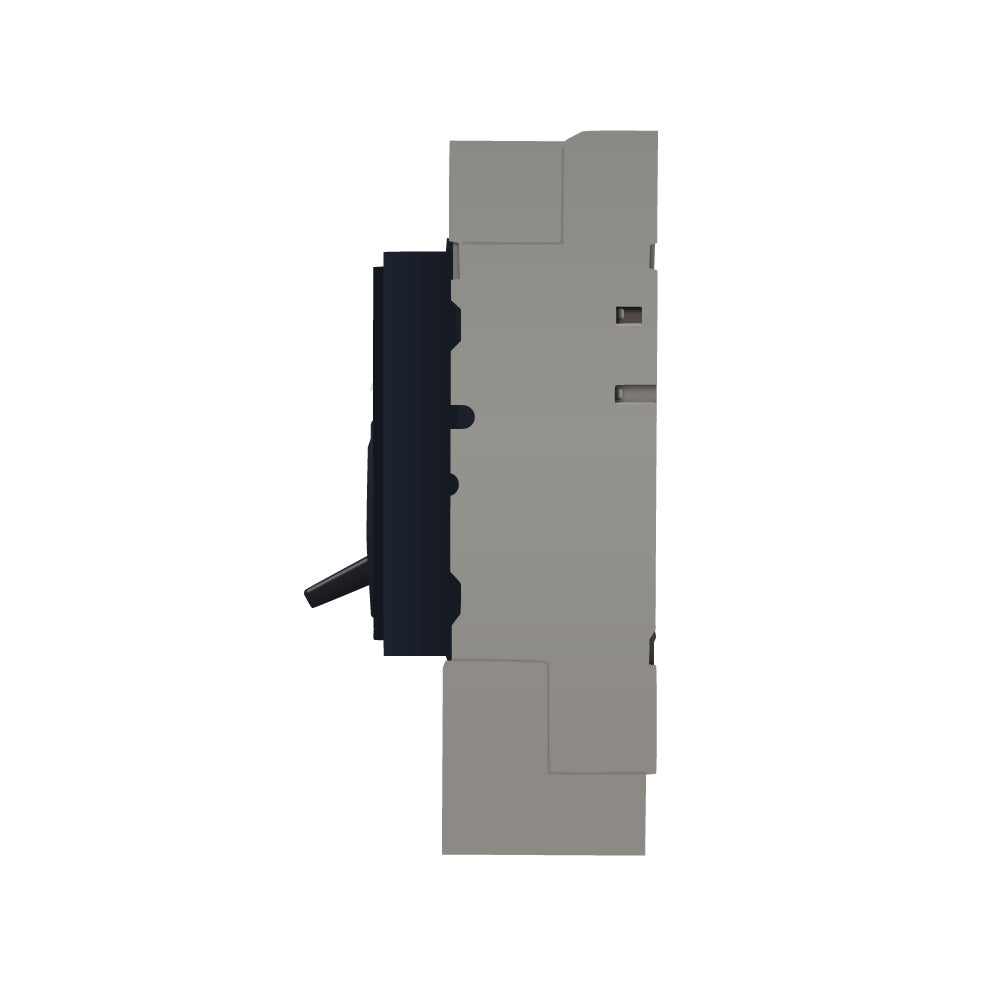

Square D PGL36120U31A 1200 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Solid State Electronic – PGL Series

The Square D PGL36120U31A is a 1200 Amp, 3-pole, 3-phase molded case circuit breaker from Schneider Electric / Square D. This solid-state electronic breaker features a standard interrupting capacity, a Micrologic interchangeable Standard 3.0 trip unit, LI (Long-Time and Instantaneous) trip functions, and line- and load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PGL
• Catalog Number / MPN: PGL36120U31A
• Primary Rating: 1200 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Solid State Electronic
• Trip Unit: Micrologic Interchangeable Standard 3.0
• Trip Functions: LI (Long-Time and Instantaneous)
• Terminals: Line & Load Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: PGL36120U31A
• Series: PGL
• Current Rating: 1200 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Unit: Micrologic Standard 3.0
• Trip Configuration: Interchangeable
• UPC:785901790495

Compatibility

The Square D PGL36120U31A is designed for compatible Schneider Electric / Square D electrical distribution applications using the specified Micrologic trip configuration. Verify the specific panelboard, system voltage, breaker frame, trip-unit configuration, and terminal requirements before installation.
