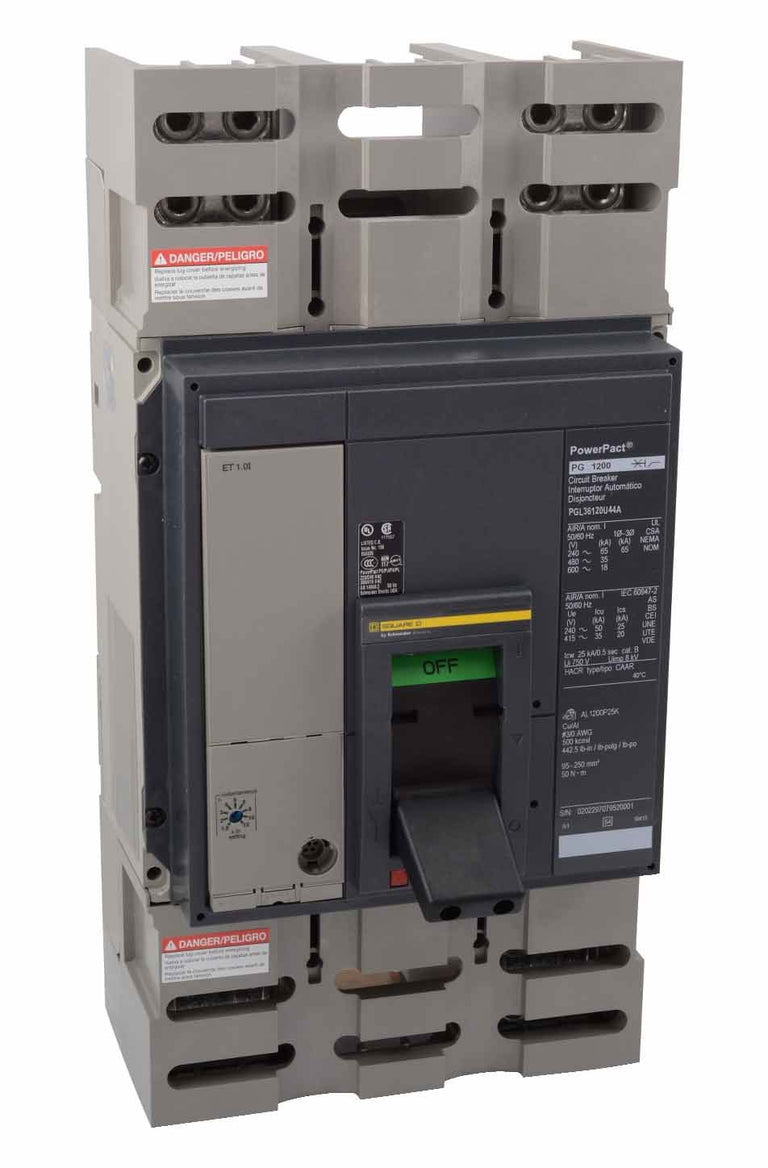

Square D PGL36120U44A Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact PGL

The Square D PGL36120U44A is a 1200A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type PGL Series. It features solid-state electronic protection and a MicroLogic interchangeable ammeter 6.0A trip unit.

The PGL36120U44A is rated for 600V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It features Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) trip functions, a feed-thru configuration, and line- and load-side lug terminals. The breaker is UL Listed and supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: PGL
• Type: PGL
• Catalog No.: PGL36120U44A
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Interchangeable Ammeter 6.0A
• Trip Functions: Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG)
• Trip Type: Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): PGL36120U44A
• Catalog Number: PGL36120U44A
• Model: PGL36120U44A
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: PGL
• Type: PGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Unit: MicroLogic Interchangeable Ammeter 6.0A
• Trip Functions: LSIG
• UPC:785901942603

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact PGL Series electrical distribution equipment that accepts PGL Series molded case circuit breakers. The PGL36120U44A provides 1200A, 3-pole electronic protection for compatible 600V electrical distribution applications.

The breaker features an interchangeable MicroLogic 6.0A trip unit, LSIG protection, feed-thru configuration, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, trip-unit compatibility, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact PGL Series
• 1200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Solid-State Electronic Protection
• MicroLogic Interchangeable Ammeter 6.0A Trip Unit
• LSIG Trip Functions
• Interchangeable Trip
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Complete Breaker
