Square D PJA36100U41A Molded Case Circuit Breaker – 1000A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – I-Line Style Plug-In – PowerPact PJA Series

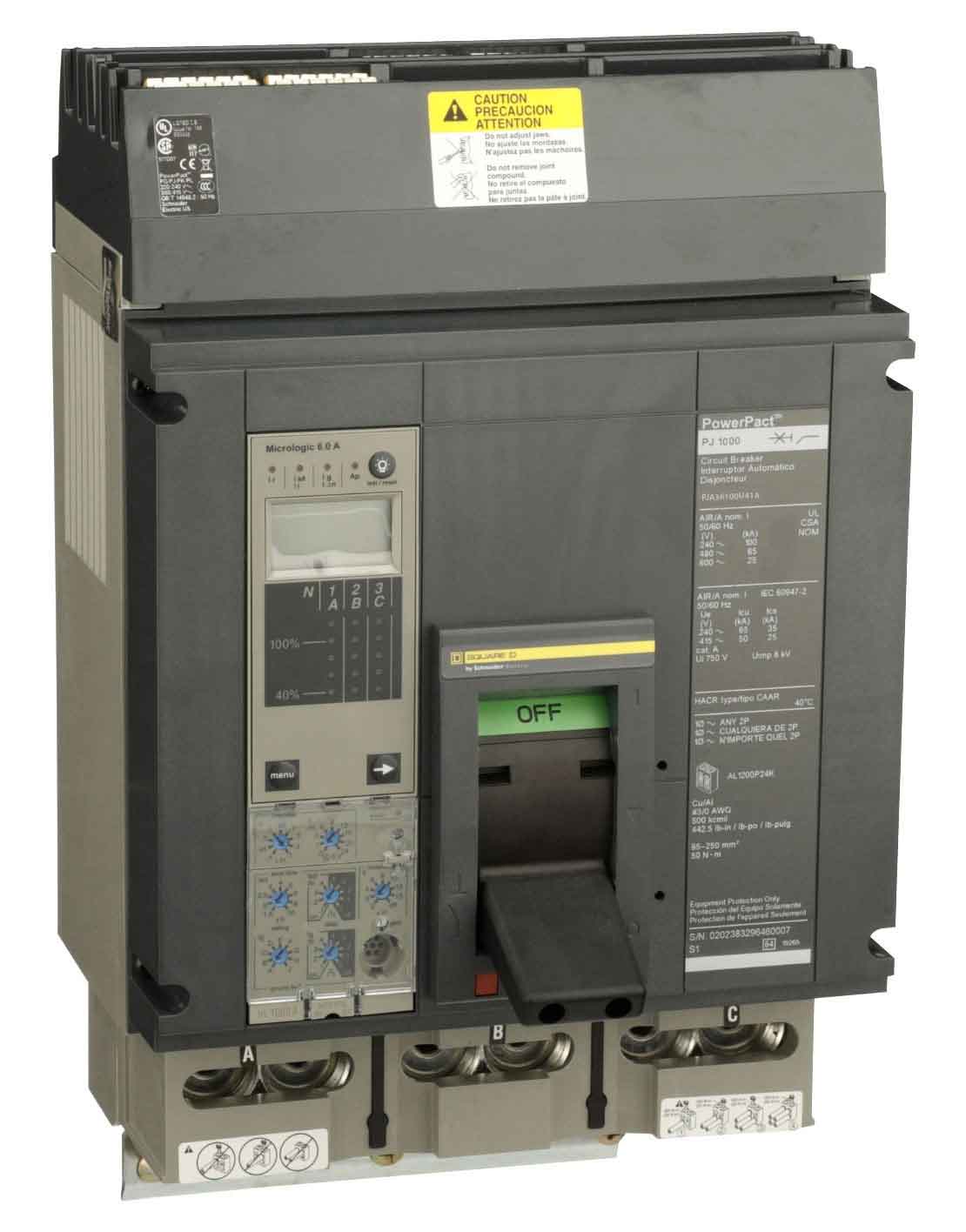

The Square D PJA36100U41A is a 1000A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type PJA Series. It features a solid-state electronic MicroLogic interchangeable ammeter 3.0A trip unit and is designed for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses an I-Line style plug-in connection and an ABC phase connection. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: PJA
• Type: PJA
• Catalog No.: PJA36100U41A
• Current Rating: 1000A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Trip Unit: MicroLogic Interchangeable Ammeter 3.0A
• Trip Type: Interchangeable
• Protection Type: Solid-State Electronic
• Mounting / Connection: I-Line Style Plug-In
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): PJA36100U41A
• Catalog Number: PJA36100U41A
• Model: PJA36100U41A
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: PJA
• Type: PJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1000A
• Trip Unit: MicroLogic Interchangeable Ammeter 3.0A
• UPC:785901973171

Compatibility:

Designed for use with compatible Square D PowerPact PJA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The PJA36100U41A provides 1000A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker uses an ABC phase connection and includes a MicroLogic interchangeable ammeter 3.0A trip unit.

Certifications:

• UL Listed
• PowerPact PJA Series
• 1000A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• MicroLogic Interchangeable Ammeter 3.0A Trip
• I-Line Style Plug-In
• ABC Phase Connection
