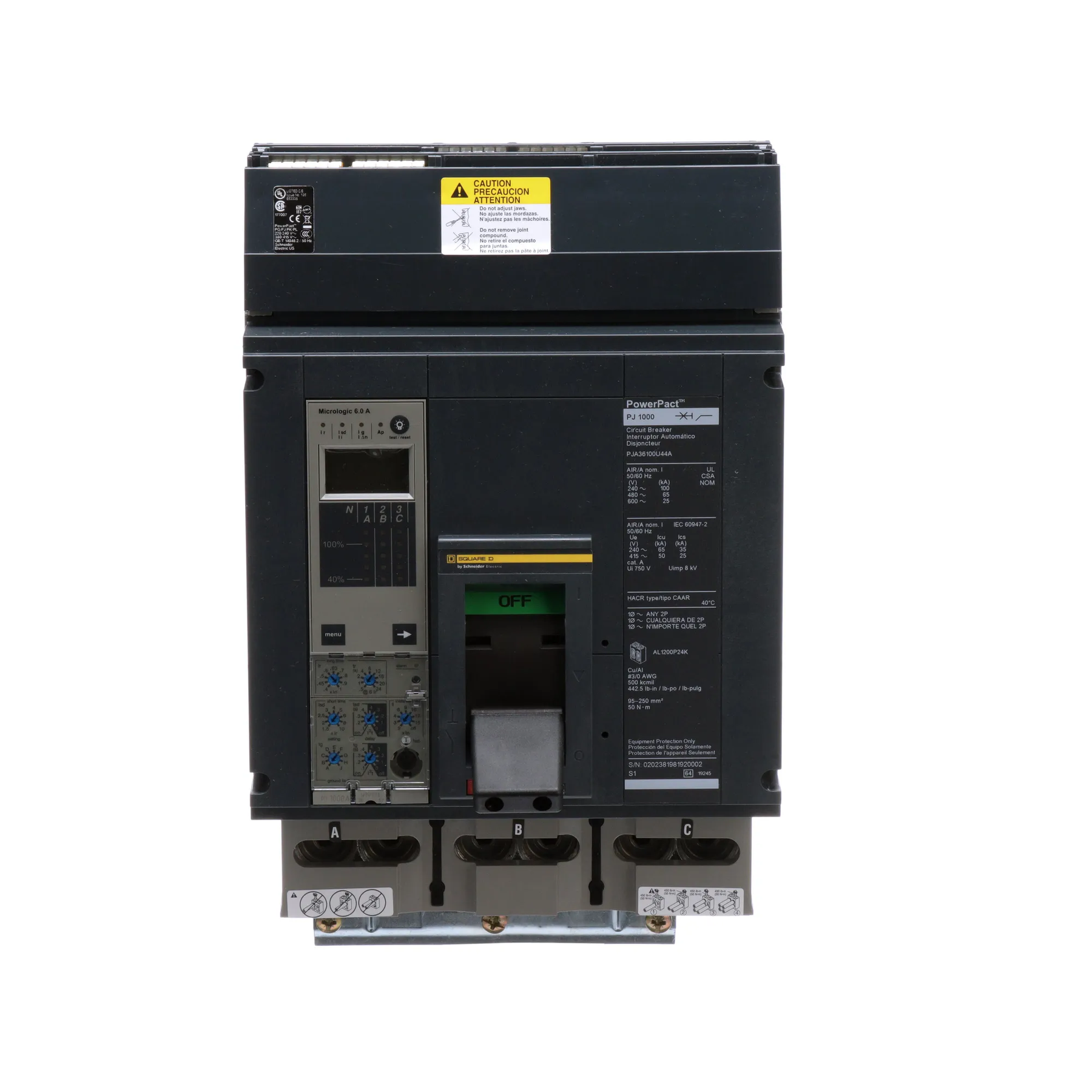

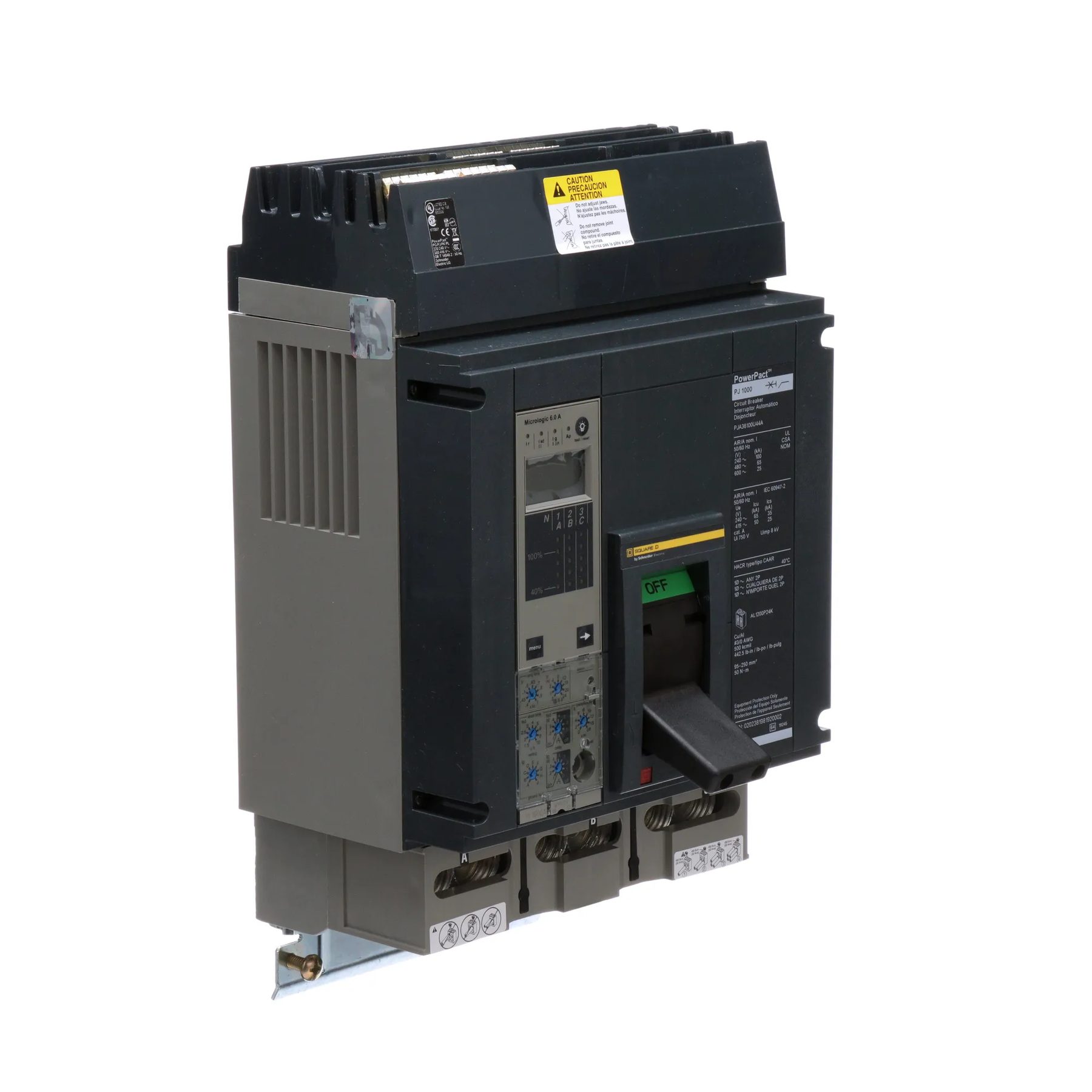

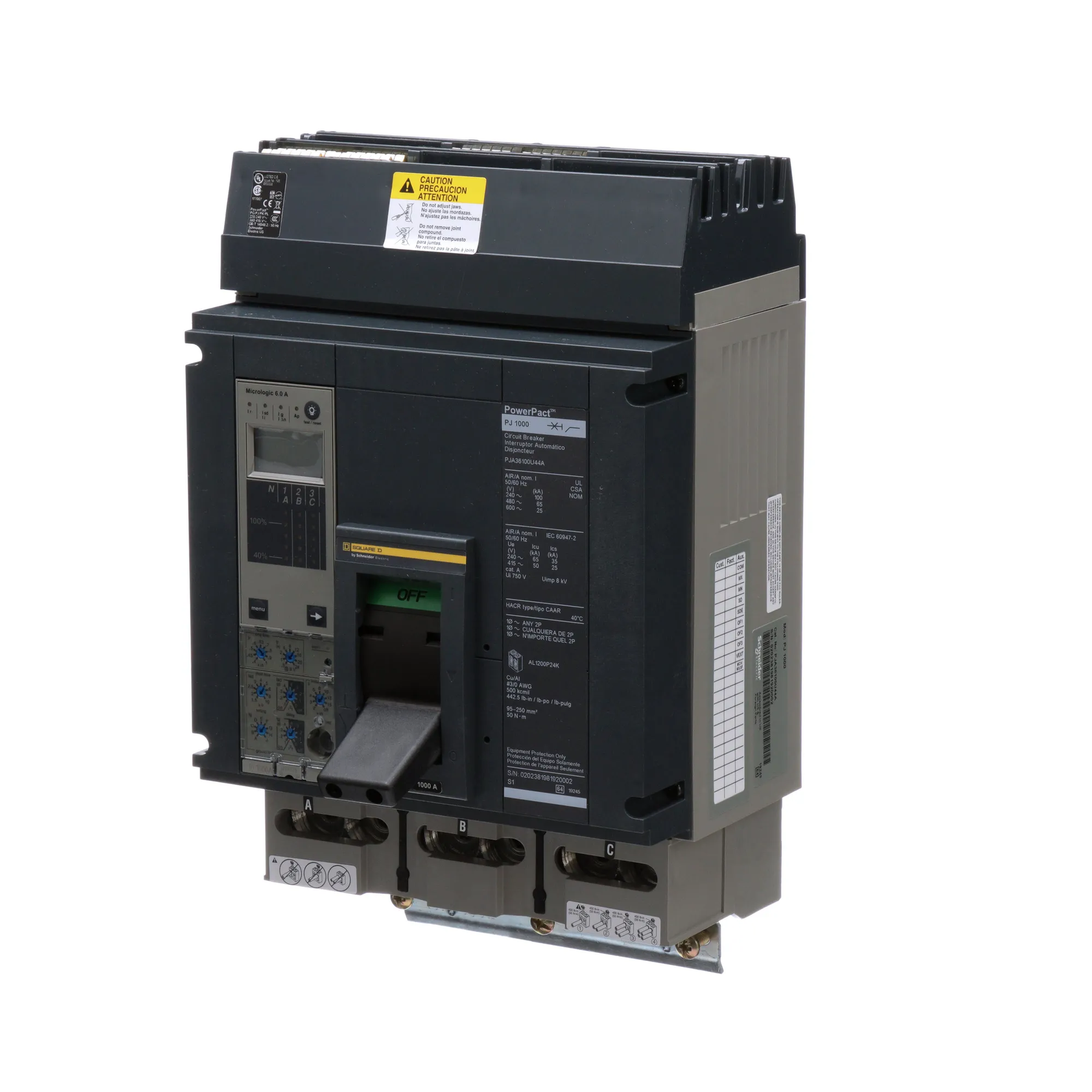

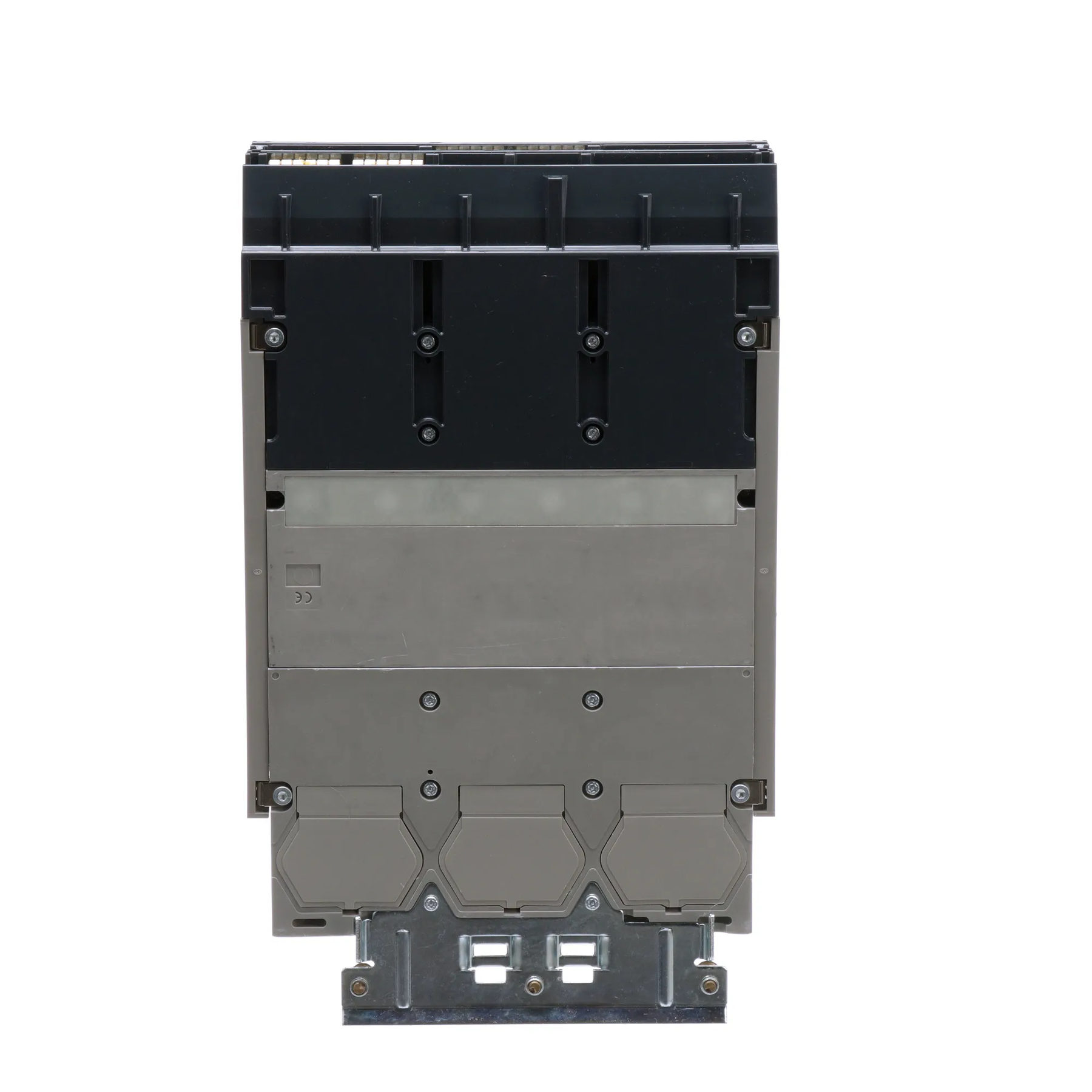

Square D PJA36100U44A 1000 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – I-Line Style Plug-In – PowerPact Series

The Square D PJA36100U44A is a 1000 Amp, 3-pole molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type PJA. It is rated for 600 V with a 65 kA interrupting rating at 480 V and features high interrupting capacity. The breaker uses a solid-state electronic trip system with an interchangeable Micrologic ammeter 6.0A trip unit and LSIG (Long-Time, Short-Time, Instantaneous and Ground Fault) protection functions. It is designed for I-Line style plug-in mounting and uses an ABC phase connection.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: PJA
• Catalog Number / MPN: PJA36100U44A
• Primary Rating: 1000 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Phase Connection: ABC
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Trip Type: Solid-State Electronic
• Trip Unit: Interchangeable Micrologic Ammeter 6.0A
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous and Ground Fault
• Connection / Mounting: I-Line Style Plug-In

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: PJA36100U44A
• Series: PowerPact
• Type: PJA
• Current Rating: 1000 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Phase Connection: ABC
• Trip Unit: Interchangeable Micrologic Ammeter 6.0A
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous and Ground Fault
• Connection: I-Line Style Plug-In
• UPC: 785901282235

Compatibility

The Square D PJA36100U44A is designed for compatible Schneider Electric / Square D PowerPact Type PJA and I-Line style applications. Verify the specific panelboard, system voltage, phase connection, mounting configuration, and breaker compatibility before installation.

Certifications

• UL Listed
