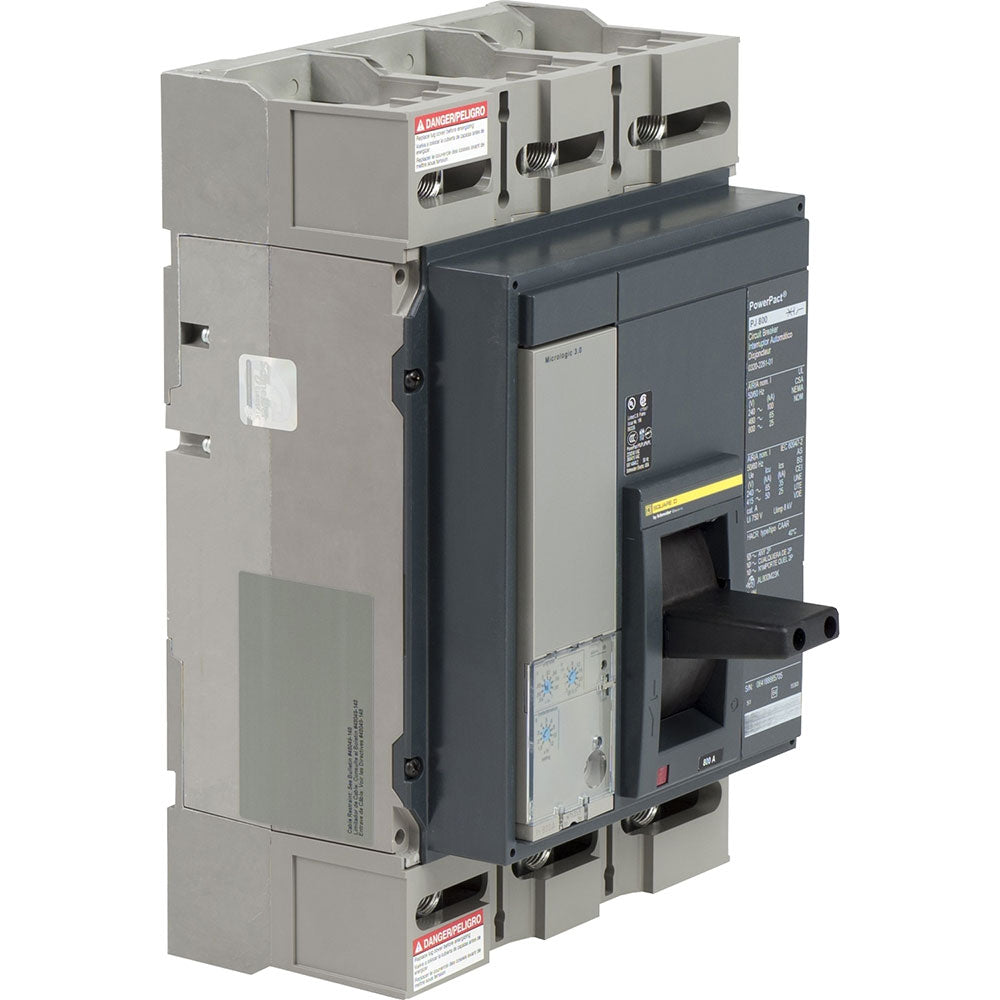

Square D PJL36080U31A 800 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – PowerPact Series

The Square D PJL36080U31A is an 800 Amp, 3-pole, 3-phase molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type PJL. It is rated for 600 V with a high interrupting capacity of 65 kA at 480 V. The breaker features feed-thru connection, a Micrologic interchangeable standard 3.0 trip, LI – Long-Time and Instantaneous trip functions, and line and load-side lug terminals. It uses solid-state electronic protection and is UL Listed.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: PJL
• Catalog Number / MPN: PJL36080U31A
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Trip Unit: Micrologic Interchangeable Standard 3.0
• Trip Functions: LI – Long-Time and Instantaneous
• Protection Type: Solid-State Electronic
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: PJL36080U31A
• Series: PowerPact
• Type: PJL
• Current Rating: 800 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Micrologic Interchangeable Standard 3.0
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Line & Load-Side Lug Terminals
• UPC: 785901982623

Compatibility

The Square D PJL36080U31A is designed for compatible Square D PowerPact Type PJL molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, trip-unit requirements, terminal configuration, and breaker compatibility before installation.

Certifications

• UL Listed
