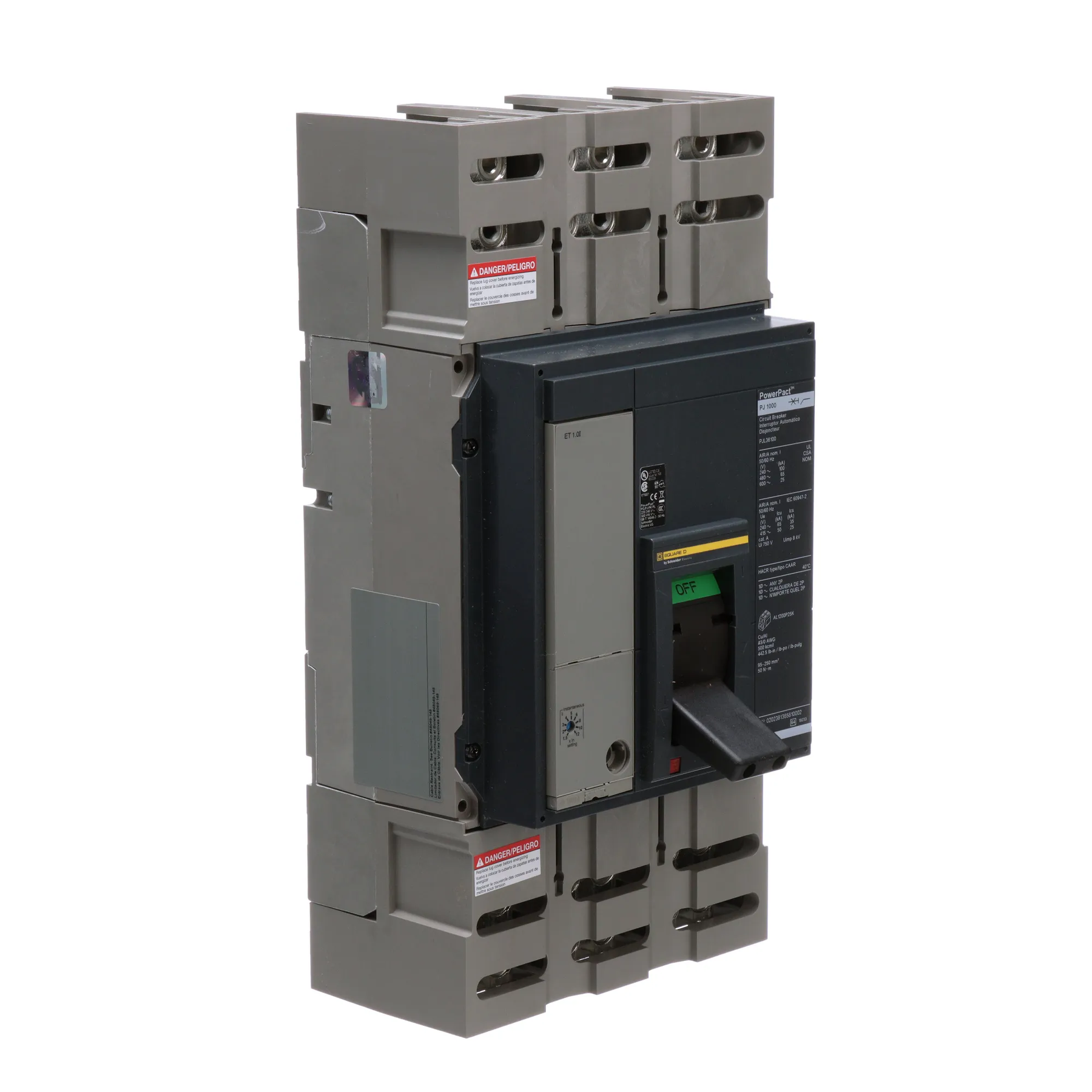

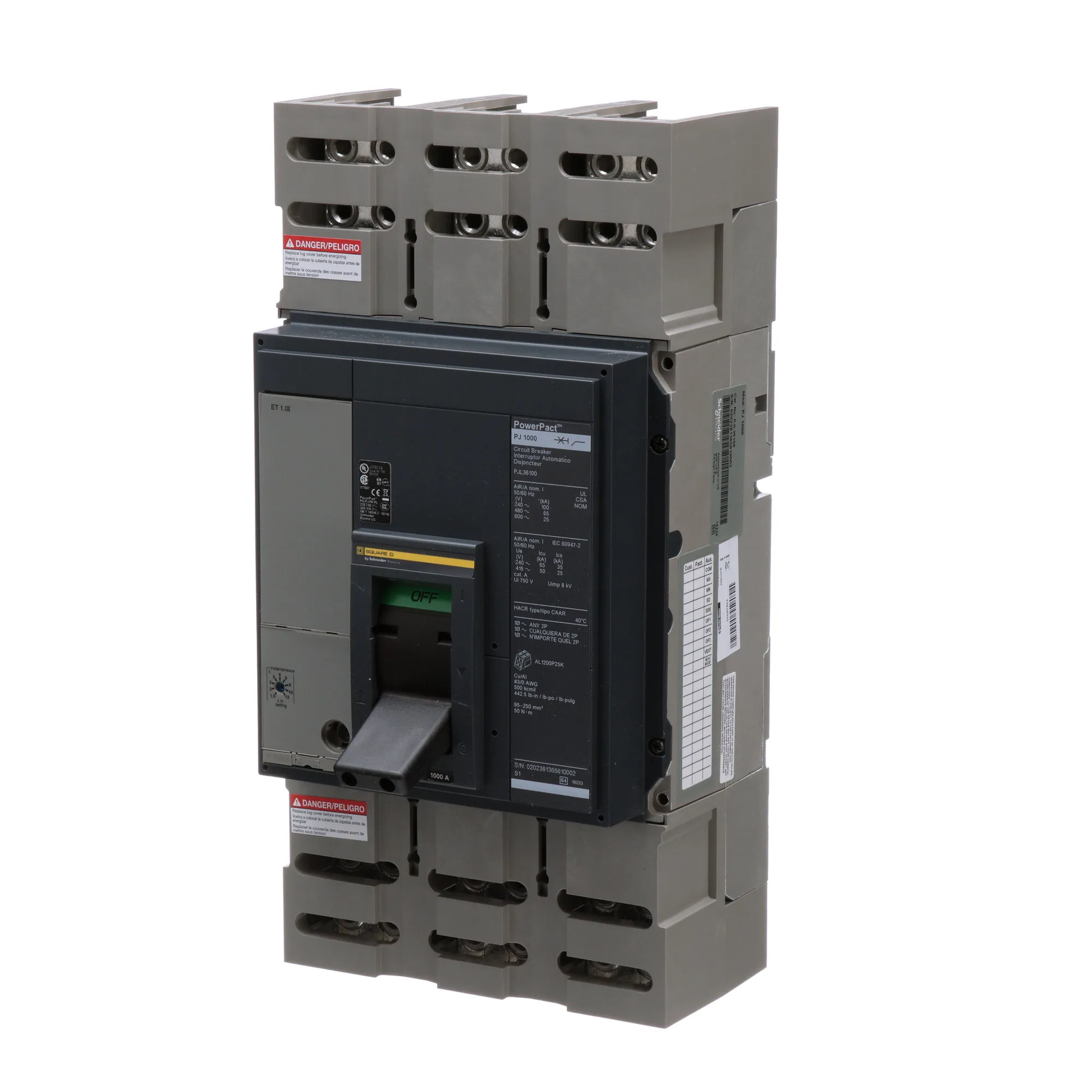

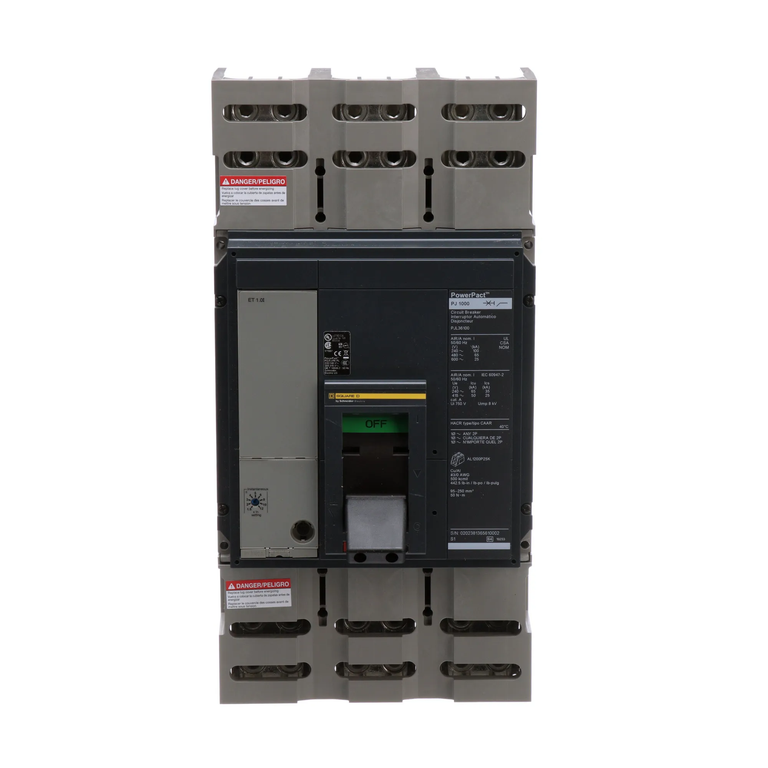

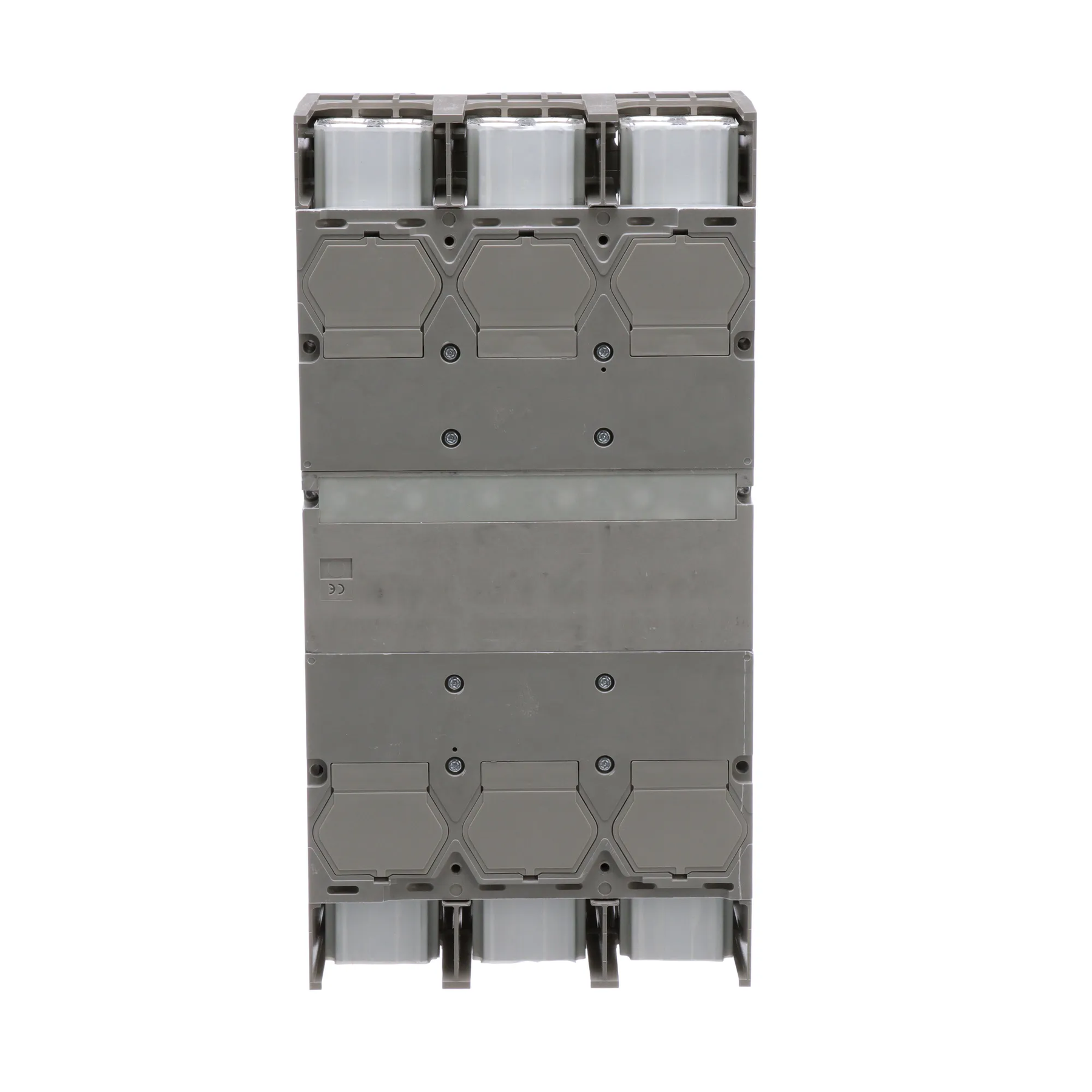

Square D PJL36100 Molded Case Circuit Breaker – 1000A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact PJL Series

The Square D PJL36100 is a 1000A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type PJL Series. It features a solid-state electronic trip system with a basic non-interchangeable ET 1.0I trip unit and Long-Time and Instantaneous (LI) trip functions.

The PJL36100 is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration, line-side and load-side lug terminals, and is supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: PJL
• Type: PJL
• Catalog No.: PJL36100
• Current Rating: 1000A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: Basic ET 1.0I
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): PJL36100
• Catalog Number: PJL36100
• Model: PJL36100
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: PJL
• Type: PJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1000A
• Trip Unit: Basic ET 1.0I
• Trip Configuration: Non-Interchangeable LI
• UPC:785901892939

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact PJL Series electrical distribution equipment that accepts PJL Series molded case circuit breakers. The PJL36100 provides 1000A, 3-pole protection for compatible 600V electrical distribution applications.

The breaker features a solid-state electronic trip system, basic ET 1.0I non-interchangeable trip unit, LI Long-Time and Instantaneous trip functions, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact PJL Series
• 1000A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• Basic ET 1.0I Trip Unit
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Complete Breaker
