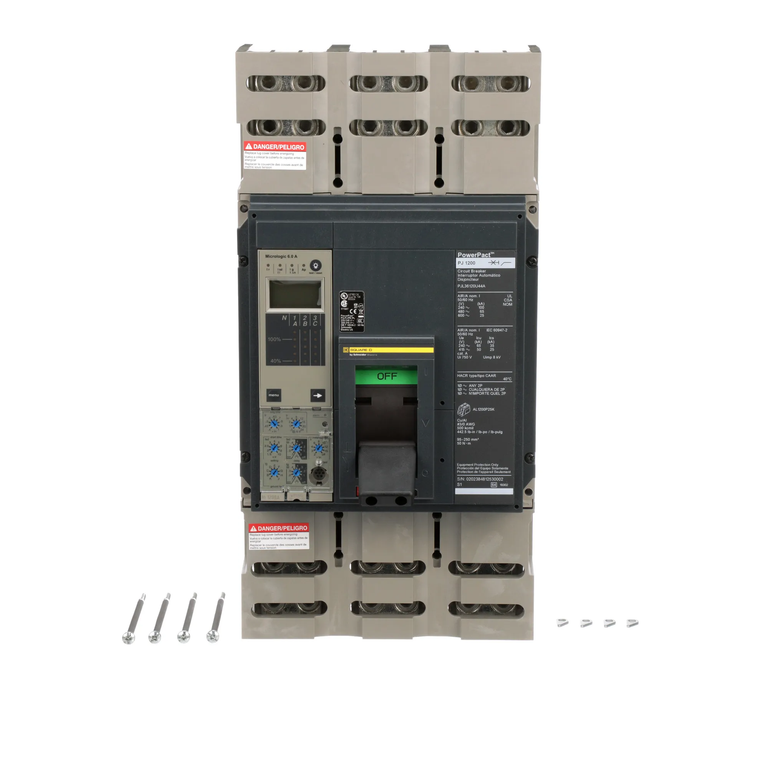

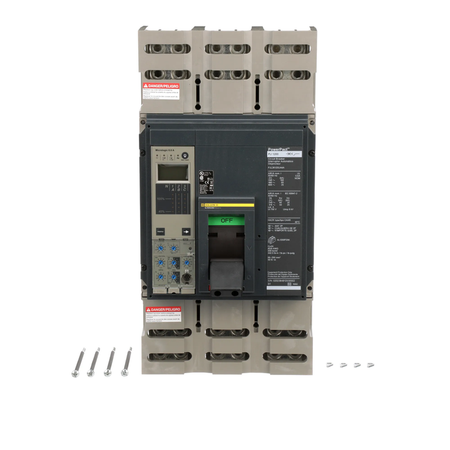

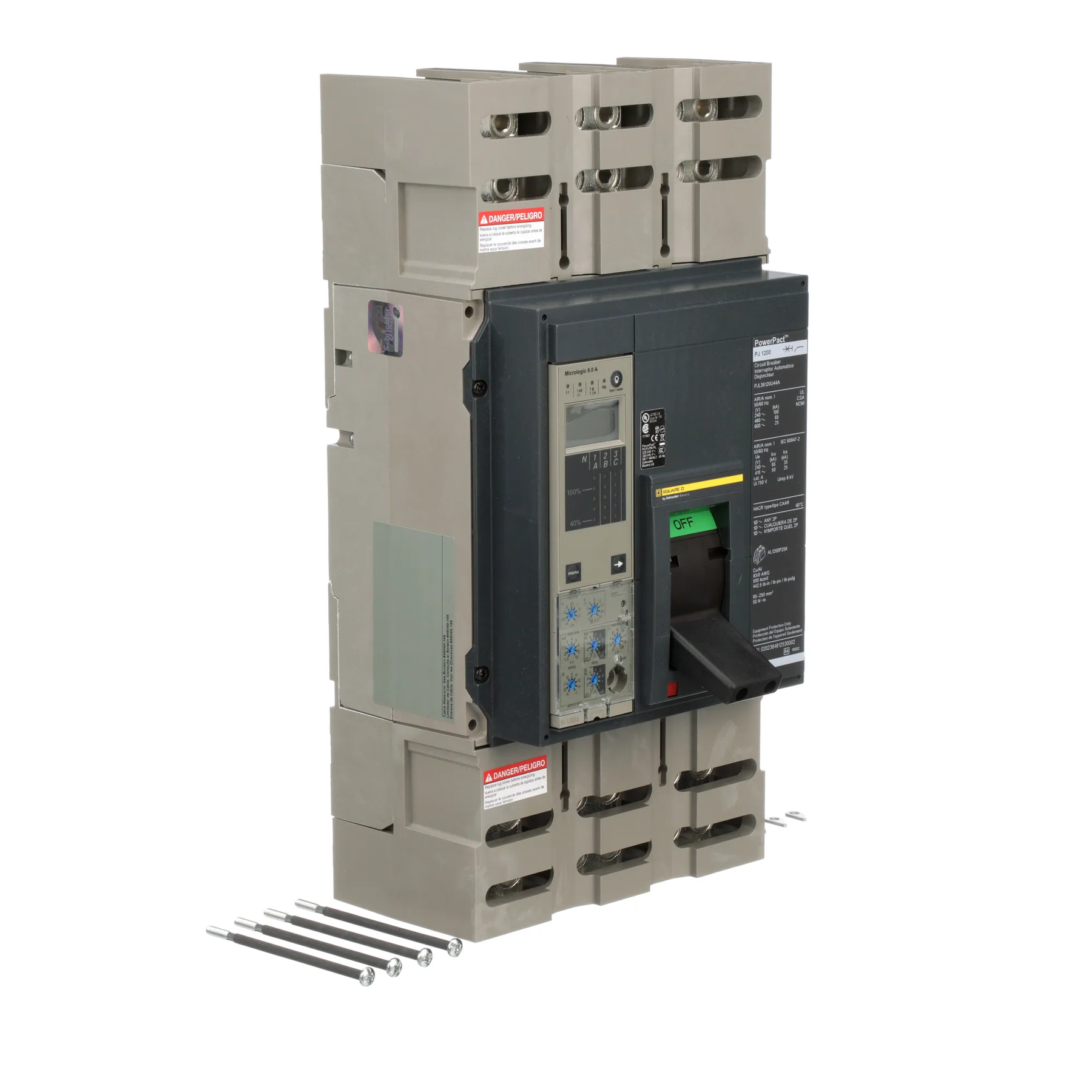

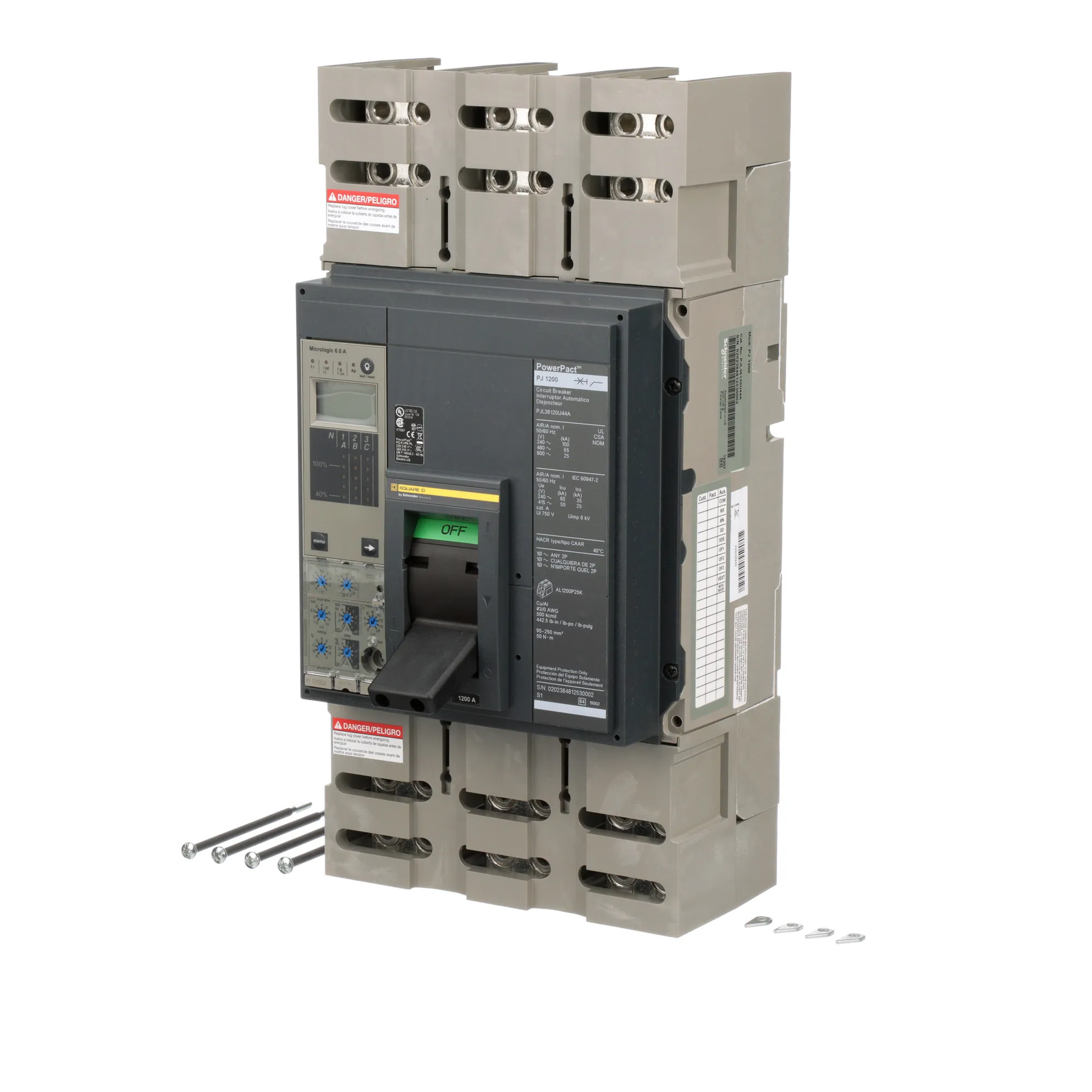

Square D PJL36120U44A Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact PJL Series

The Square D PJL36120U44A is a 1200A, 3-pole, 3-phase molded case circuit breaker from the Schneider Electric / Square D PowerPact PJL Series. It features solid-state electronic protection with a MicroLogic interchangeable ammeter 6.0A trip and LSIG trip functions.

The PJL36120U44A is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration with line- and load-side lug terminals and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: PJL
• Type: PJL
• Catalog No.: PJL36120U44A
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Interchangeable Ammeter 6.0A
• Trip Functions: Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG)
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): PJL36120U44A
• Catalog Number: PJL36120U44A
• Model: PJL36120U44A
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: PJL
• Type: PJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Unit: MicroLogic Interchangeable Ammeter 6.0A
• Trip Functions: LSIG
• UPC:785901863731

Compatibility:

Designed for use with compatible Square D PowerPact PJL Series electrical distribution equipment that accepts PJL Series molded case circuit breakers. The PJL36120U44A provides 1200A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a MicroLogic interchangeable ammeter trip unit, LSIG protection, feed-thru configuration, and line- and load-side lug terminals.

Certifications:

• UL Listed
• PowerPact PJL Series
• 1200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• MicroLogic Interchangeable Ammeter 6.0A Trip
• LSIG Trip Functions
• Feed-Thru Configuration
