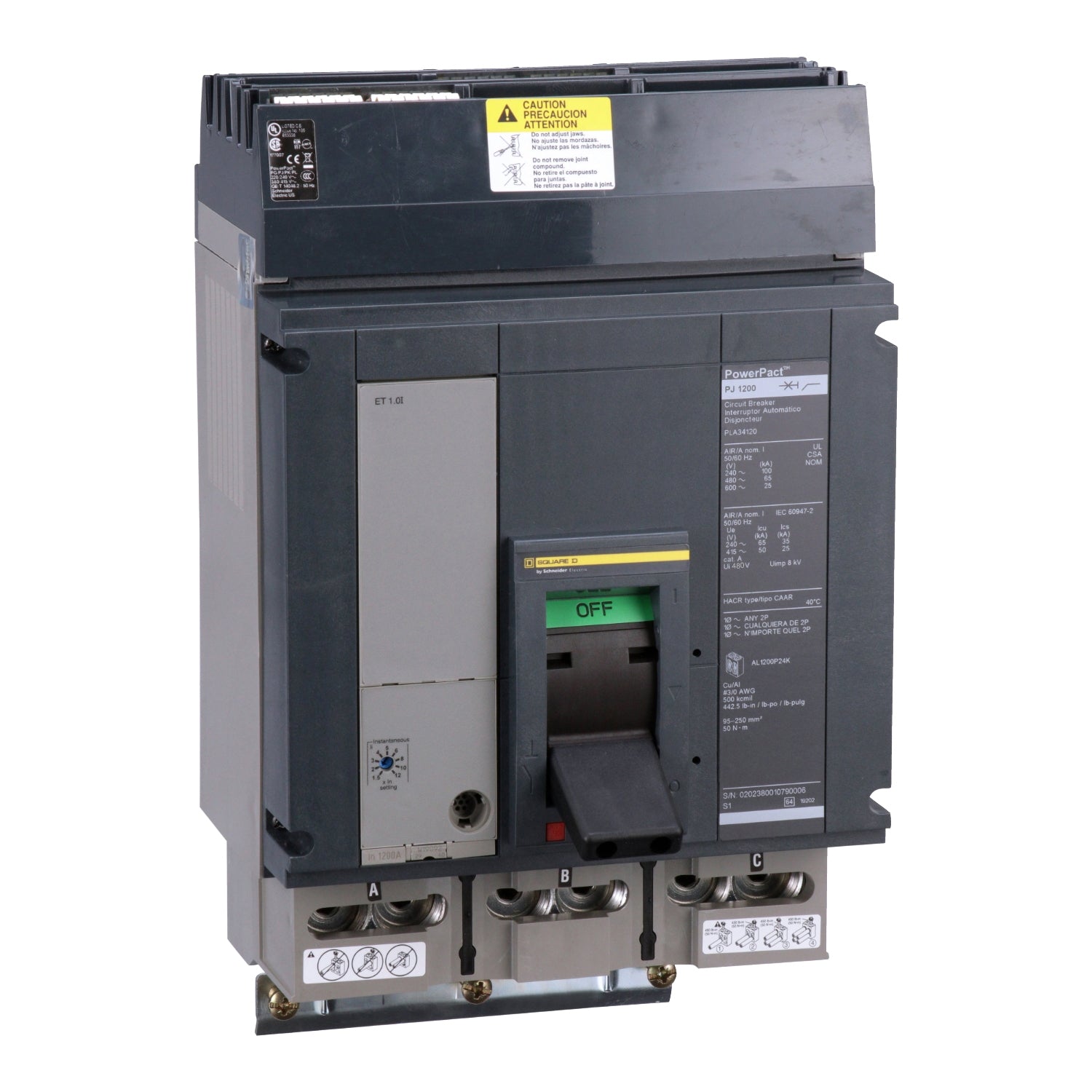

Square D PLA34120 Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 480V – 100kA @ 480V – I-Line Style Plug-In – PowerPact PLA Series

The Square D PLA34120 is a 1200A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type PLA Series. It features solid-state electronic protection with a basic non-interchangeable ET 1.0I trip unit and Long-Time and Instantaneous (LI) trip functions.

The PLA34120 is rated for 480V and provides an 100kA interrupting rating at 480V with extra-high interrupting capacity. It features an ABC phase connection, an I-Line style plug-in connection, and is supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: PLA
• Type: PLA
• Catalog No.: PLA34120
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 480V
• Interrupting Rating: 100kA @ 480V
• Interrupting Capacity: Extra High
• Protection Type: Solid-State Electronic
• Trip Unit: Basic Non-Interchangeable ET 1.0I
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): PLA34120
• Catalog Number: PLA34120
• Model: PLA34120
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: PLA
• Type: PLA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Unit: ET 1.0I
• Trip Configuration: Non-Interchangeable LI
• UPC:785901497318

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact PLA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The PLA34120 provides 1200A, 3-pole solid-state electronic protection for compatible 480V electrical distribution applications.

The breaker features an ABC phase connection, I-Line style plug-in connection, and a basic non-interchangeable ET 1.0I trip unit with Long-Time and Instantaneous functions. Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, trip-unit compatibility, phase connection, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact PLA Series
• 1200A Rated
• 3-Pole / 3-Phase
• 480V Rated
• 100kA @ 480V Interrupting Rating
• Extra-High Interrupting Capacity
• Solid-State Electronic Protection
• Basic Non-Interchangeable ET 1.0I Trip Unit
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Style Plug-In
• ABC Phase Connection
• Complete Breaker
