Product Title RGF36160U31A – Square D PowerPact R 3‑Pole 1600A 600V AC Molded Case Circuit Breaker, Thermal‑Magnetic, 35 kAIC @ 480V

Product Title

RGF36160U31A – Square D PowerPact R 3‑Pole 1600A 600V AC Molded Case Circuit Breaker, Thermal‑Magnetic, 35 kAIC @ 480V

Product Description

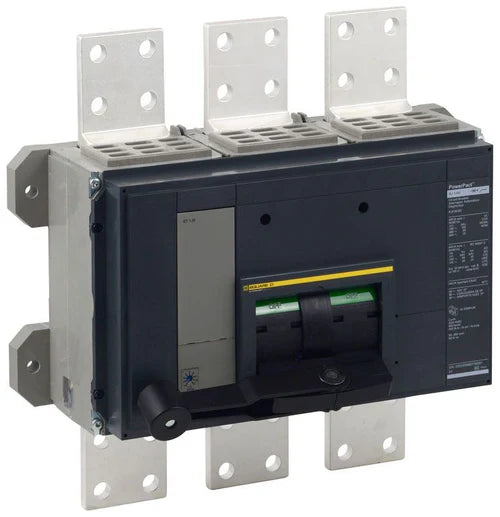

The Square D RGF36160U31A is a 3‑pole, 1600 Amp, 600 V AC PowerPact R frame molded case circuit breakerengineered for industrial and commercial electrical distribution systems. This breaker features a thermal‑magnetic trip unit with Long‑Time (LI) and Instantaneous protection for reliable performance under overload and short‑circuit conditions.

It delivers high interrupting capacity at multiple voltages: 65 kAIC @ 240 V AC, 35 kAIC @ 480 V AC, and 18 kAIC @ 600 V AC, providing robust protection in demanding applications. The RGF36160U31A is UL listed and CSA certified, built to meet rigorous safety and performance standards required in industrial environments.

Key Features

• Poles: 3

• Amperage: 1600 A

• Voltage: 600 V AC (also suitable for 250 V DC)

• Type: PowerPact R Molded Case Circuit Breaker

• Thermal‑magnetic trip with Long‑Time (LI) and Instantaneous functions

• High interrupting capacity: 65 kAIC @ 240 V AC, 35 kAIC @ 480 V AC, 18 kAIC @ 600 V AC

• Bolt‑on mounting for secure panel installation

• Durable molded case construction for industrial use

• UL and CSA certified for commercial and industrial electrical protection

Technical Specifications

• Manufacturer: Square D (Schneider Electric)

• Catalog Number: RGF36160U31A

• Frame: R Frame (PowerPact R)

• Phase: 3‑phase

• Trip Type: Thermal‑Magnetic

• Mounting Type: Bolt‑on

• Frequency Rating: 50/60 Hz

• Operating Temperature: Standard industrial range

Product Data

• UPC / GTIN: 78590198281

• Provides reliable overload and short‑circuit protection in industrial and commercial panels

• Compatible with PowerPact switchboards and distribution equipment

• Built to meet UL 489, CSA C22.2, and IEC 60947‑2 safety standards
