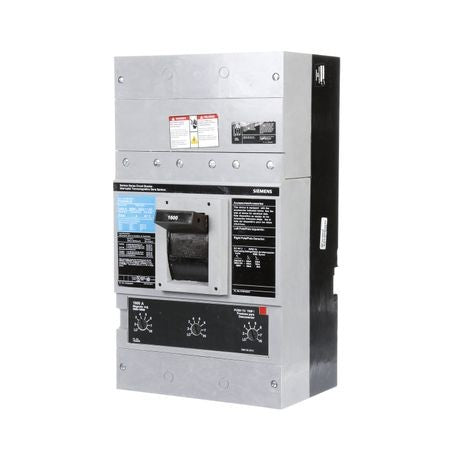

Siemens PXD63B160 1600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 50 kA@480 V – Bolt-On – SENTRON Series

The Siemens PXD63B160 is a 1600 Amp, 3-pole molded case circuit breaker from the SENTRON Series, Type PXD. It is rated for 600 V with a 50 kA interrupting capacity at 480 V and features a thermal-magnetic trip mechanism with a non-interchangeable trip unit. The breaker is designed for 40°C applications and is UL Listed for reverse-fed applications.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: PXD
• Catalog Number / MPN: PXD63B160
• Primary Rating: 1600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 50 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Bolt-On
• Reverse Feed: UL Listed for Reverse-Fed Applications

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: PXD63B160
• Series: SENTRON
• Type: PXD
• Current Rating: 1600 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• UPC: 783643247581

Compatibility

The Siemens PXD63B160 is designed for compatible Siemens SENTRON Type PXD molded case circuit breaker applications. Its UL listing for reverse-fed applications allows use in approved reverse-feed configurations. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.

Certifications

• UL Listed for Reverse-Fed Applications
