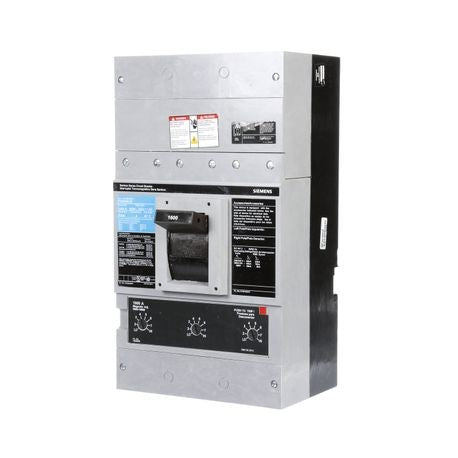

PXD63B160H – Siemens Sentron PD Frame 3‑Pole 1600A 600V AC Molded Case Circuit Breaker, Thermal‑Magnetic, 50 kAIC @ 480V

Product Description

The Siemens PXD63B160H is a 3-pole, 1600 Amp, 600 V AC Sentron PD frame molded case circuit breakerdesigned for industrial and commercial electrical distribution systems. This breaker features a thermal-magnetic trip unit with Long-Time (LI) and instantaneous protection for dependable performance across demanding electrical applications.

It offers high interrupting capacity at key voltages: 50 kAIC @ 480 V AC, 25 kAIC @ 600 V AC, ensuring safe interruption of high fault currents. The PXD63B160H is UL listed for reverse-fed applications and built to withstand the rigors of heavy usage.

Key Features

• Poles: 3

• Amperage: 1600 A

• Voltage: 600 V AC (also suitable for 250/500 V DC)

• Type: Sentron PD Frame Molded Case Circuit Breaker

• Thermal-magnetic trip with Long-Time (LI) and instantaneous functions

• High interrupting capacity: 50 kAIC @ 480 V AC, 25 kAIC @ 600 V AC

• Non-interchangeable trip unit for secure protection

• Bolt-on mounting for secure installation

• UL listed and suitable for reverse-fed applications

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: PXD63B160H

• Frame Size: PD

• Phase: 3-phase

• Trip Type: Thermal-Magnetic

• Mounting Type: Bolt-On

• Frequency Rating: 50/60 Hz

• Temperature Rating: Standard 40°C

Product Data

• UPC / GTIN: 00783643320345

• Provides reliable overload and short-circuit protection in industrial and commercial panels

• Compatible with power distribution equipment requiring PD frame breakers

• Built to meet UL 489 and IEC 60947-2 safety standards
