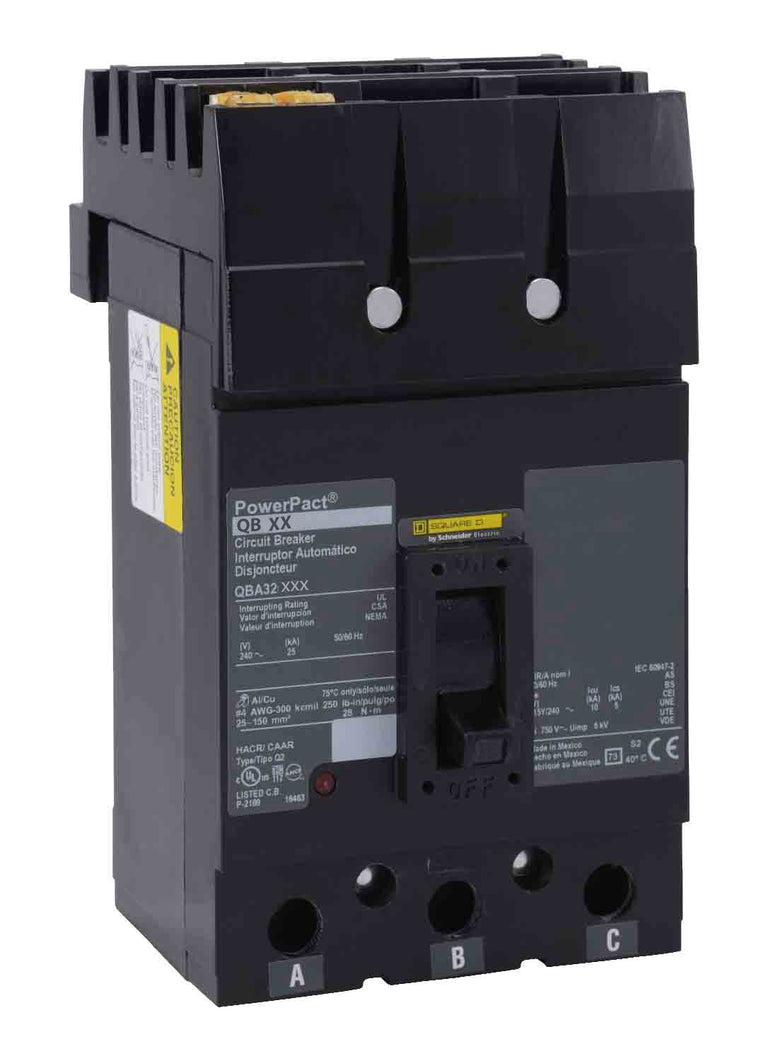

Square D QBA32100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – I-Line Style Plug-In – QBA Series

The Square D QBA32100 is a 100A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Square D I-Line Type QBA Series. It is designed for compatible electrical distribution applications and features Long-Time and Instantaneous (LI) trip functions with a non-interchangeable trip.

The breaker is rated for 240V and provides a 10kA interrupting rating at 240V with standard interrupting capacity. It features an I-Line style plug-in connection, ABC phase connection, and a load-side lug terminal. The breaker is supplied as a complete breaker and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: QBA
• Type: QBA
• Catalog No.: QBA32100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Lug Terminal
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QBA32100
• Catalog Number: QBA32100
• Model: QBA32100
• Product Family: Square D I-Line Circuit Breakers
• Series: QBA
• Type: QBA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Rated Current: 100A
• Rated Voltage: 240V
• Trip Configuration: Non-Interchangeable LI Trip

• UPC : 785901412618

Compatibility:

Designed for use with compatible Square D I-Line Type QBA electrical distribution equipment that accepts QBA Series I-Line style plug-in molded case circuit breakers. The QBA32100 provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 240V, 3-phase applications.

The breaker uses an ABC phase connection, I-Line style plug-in mounting, and a load-side lug terminal. It is supplied complete with a non-interchangeable LI trip. Always verify the specific I-Line panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip-unit requirements, terminal arrangement, and installation specifications before installation.

Certifications:

• UL Listed
• Square D I-Line
• QBA Series
• 100A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Lug Terminal
• Complete Breaker
