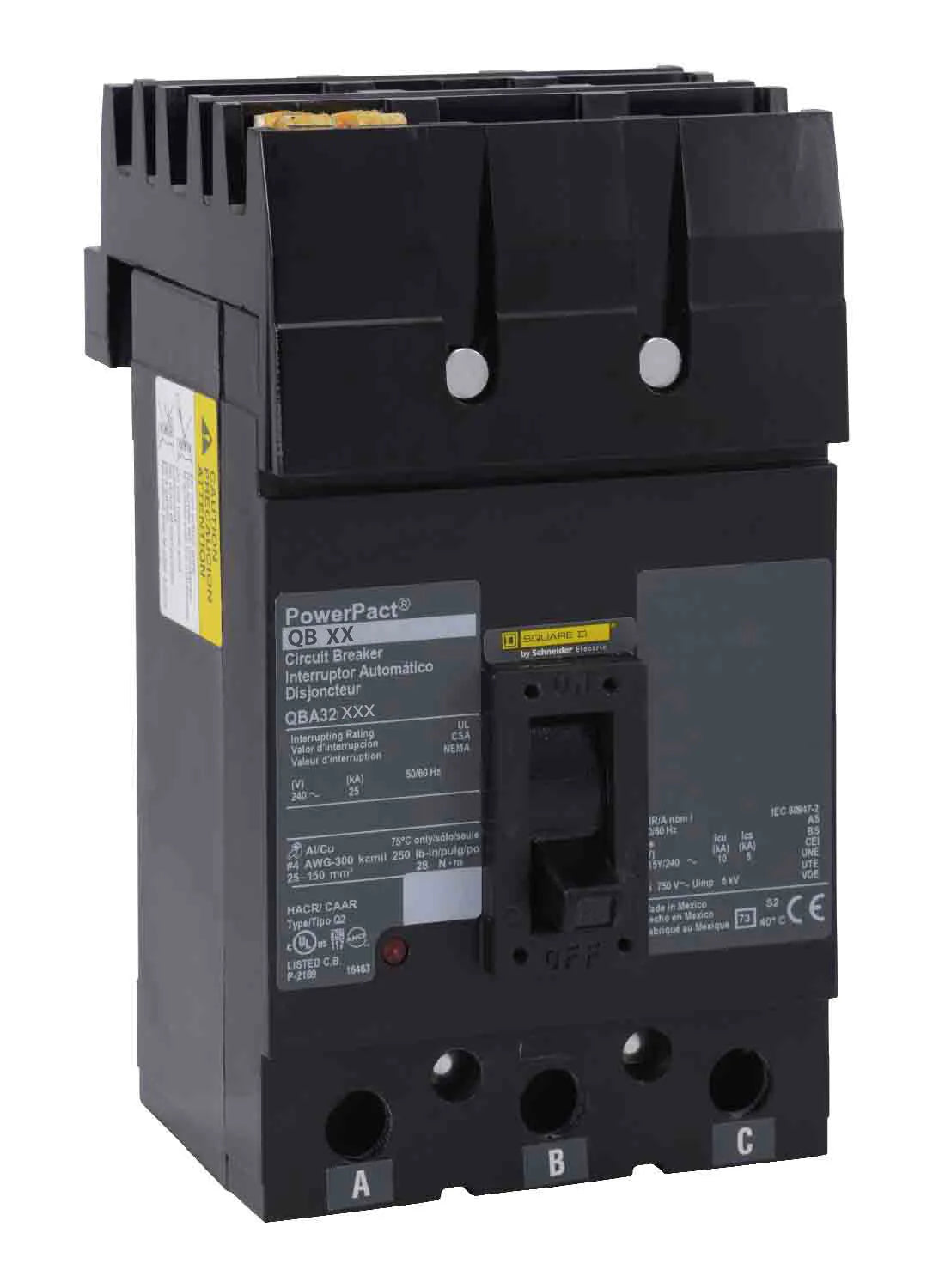

Square D QBA32175 Molded Case Circuit Breaker – 175A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – I-Line Style Plug-In – QBA Series

The Square D QBA32175 is a 175A, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line Type QBA Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 240V and provides a standard interrupting rating of 10kA at 240V. It features an ABC phase connection, I-Line style plug-in mounting, and is supplied complete with load-side lug terminals. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: QBA
• Type: QBA
• Catalog No.: QBA32175
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QBA32175
• Catalog Number: QBA32175
• Model: QBA32175
• Product Family: Square D I-Line Circuit Breakers
• Series: QBA
• Type: QBA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 175A
• Trip Configuration: Non-Interchangeable LI Trip
• UPC:785901405146

Compatibility:

Designed for use with compatible Square D I-Line electrical distribution equipment that accepts QBA Series molded case circuit breakers. The QBA32175 provides 175A, 3-pole thermal-magnetic protection for compatible 240V electrical distribution applications.

The breaker features an ABC phase connection, I-Line style plug-in mounting, a non-interchangeable LI trip, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• 175A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• ABC Phase Connection
• I-Line Style Plug-In
• Load-Side Lug Terminals
• Complete Breaker
• Square D QBA Series
