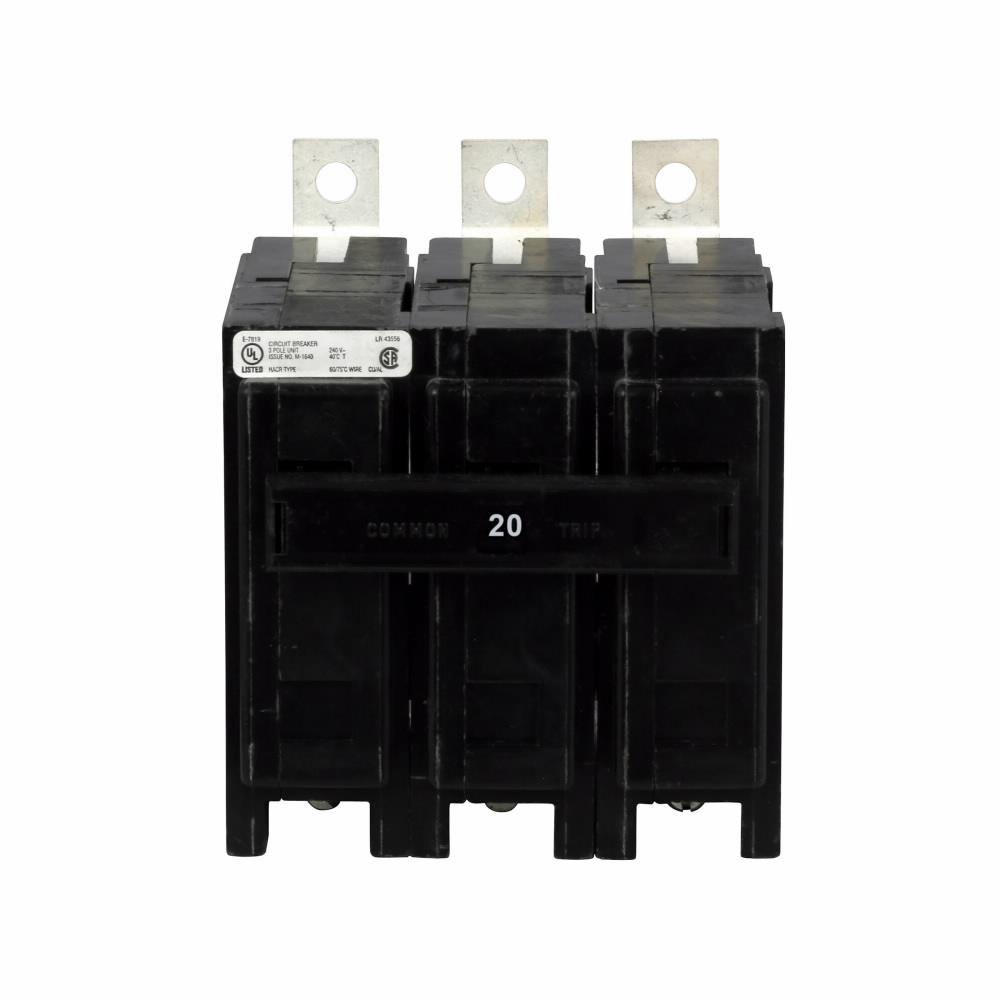

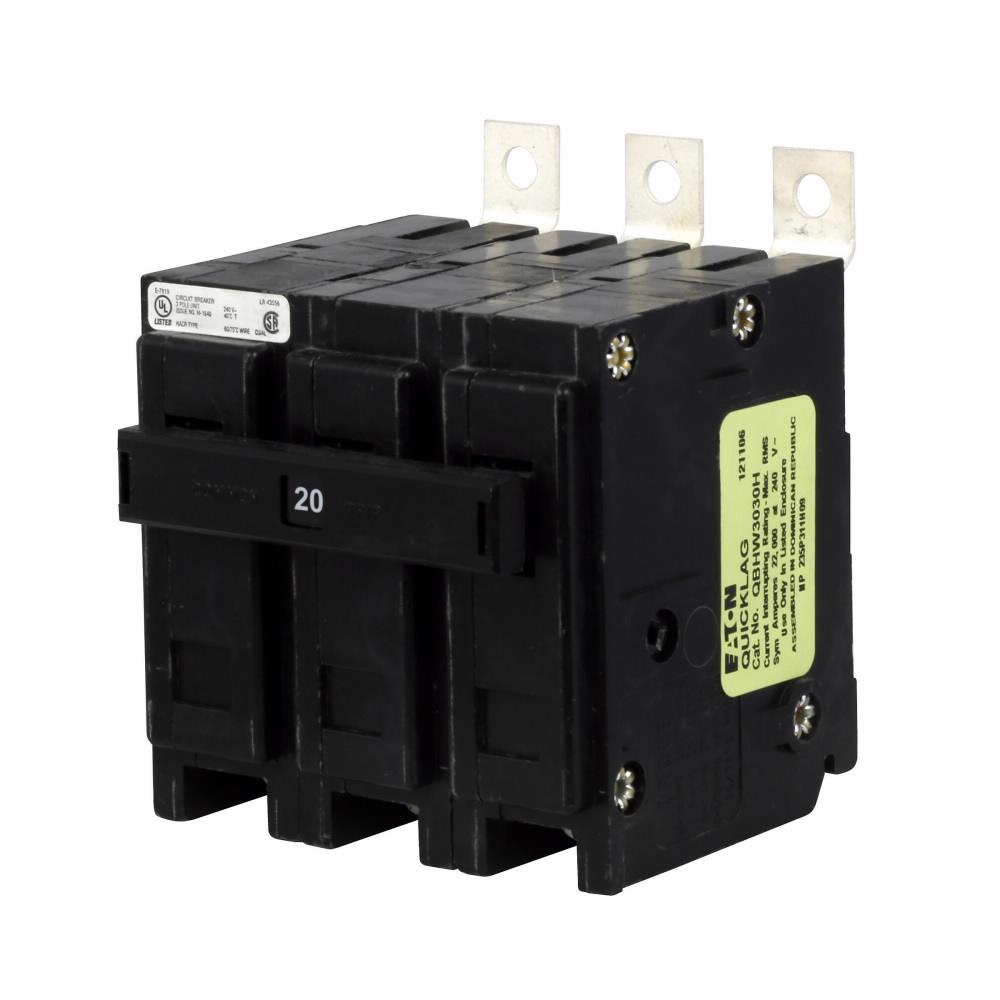

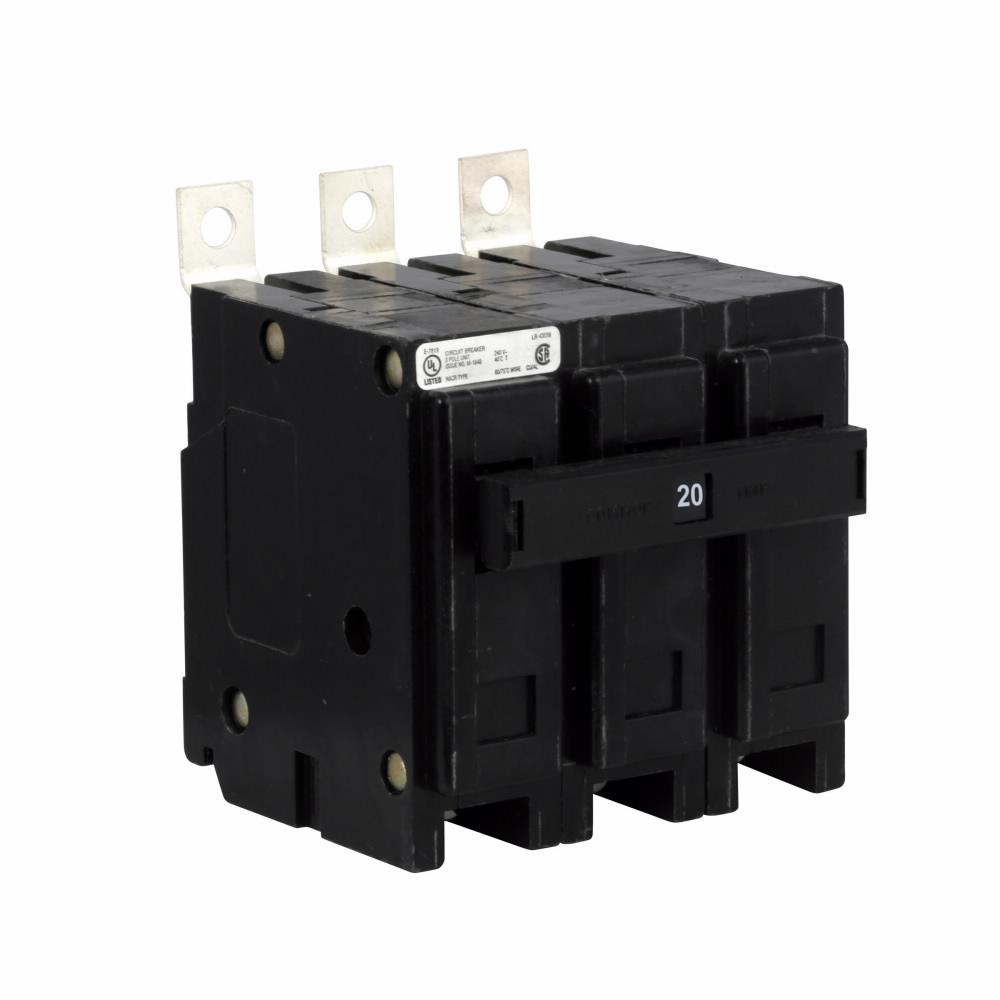

Eaton QBHW3020H Circuit Breaker – 20A – 3-Pole – 240V – 22kAIC – Bolt-On – Quicklag Industrial

The Eaton QBHW3020H is a 20A, 3-pole, 3-phase bolt-on molded case circuit breaker from the Cutler-Hammer Quicklag QBHW Series. It features thermal-magnetic protection, a 240V maximum voltage rating, and a 22kA interrupting rating at 240V.

The QBHW3020H includes long-time and instantaneous (LI) trip functions with a non-interchangeable trip design. It is HACR rated and is suitable for compatible electrical distribution applications requiring bolt-on mounting.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Series: Quicklag
• Circuit Breaker Type: QBHW
• Catalog No.: QBHW3020H
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 22kAIC at 240V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting: Bolt-On
• Ratings: HACR Rated
• Dimensions (H × W × L): 4.7" × 3.2" × 3.8"
• Product Length: 3.8"
• Product Height: 4.7"
• Product Width: 3.2"
• Product Weight: 1.1 lb
• Quantity: Q32
• Authenticity: Authentic Eaton / Cutler-Hammer Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QBHW3020H
• Catalog Number: QBHW3020H
• Product Family: Cutler-Hammer Quicklag
• Series: Quicklag
• Circuit Breaker Type: QBHW
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: QBHW3020H
• upc:786679393208

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Quicklag QBHW Series electrical distribution equipment that accepts bolt-on circuit breakers. The QBHW3020H is a 3-pole, 20A, 240V thermal-magnetic breaker with a 22kAIC interrupting rating and LI long-time and instantaneous trip functions.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• HACR Rated
• 20A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 22kAIC Interrupting Rating
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• Bolt-On Mounting
• Non-Interchangeable Trip
• Genuine Eaton / Cutler-Hammer Product
