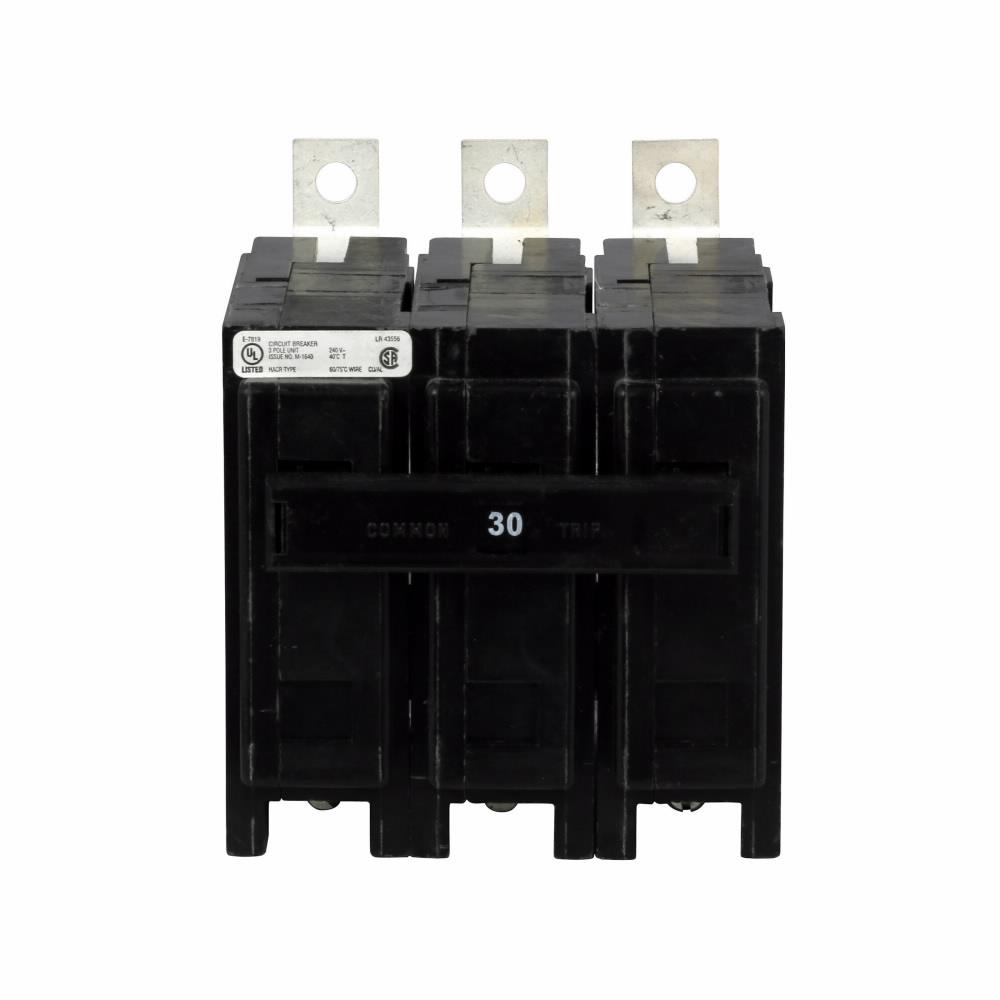

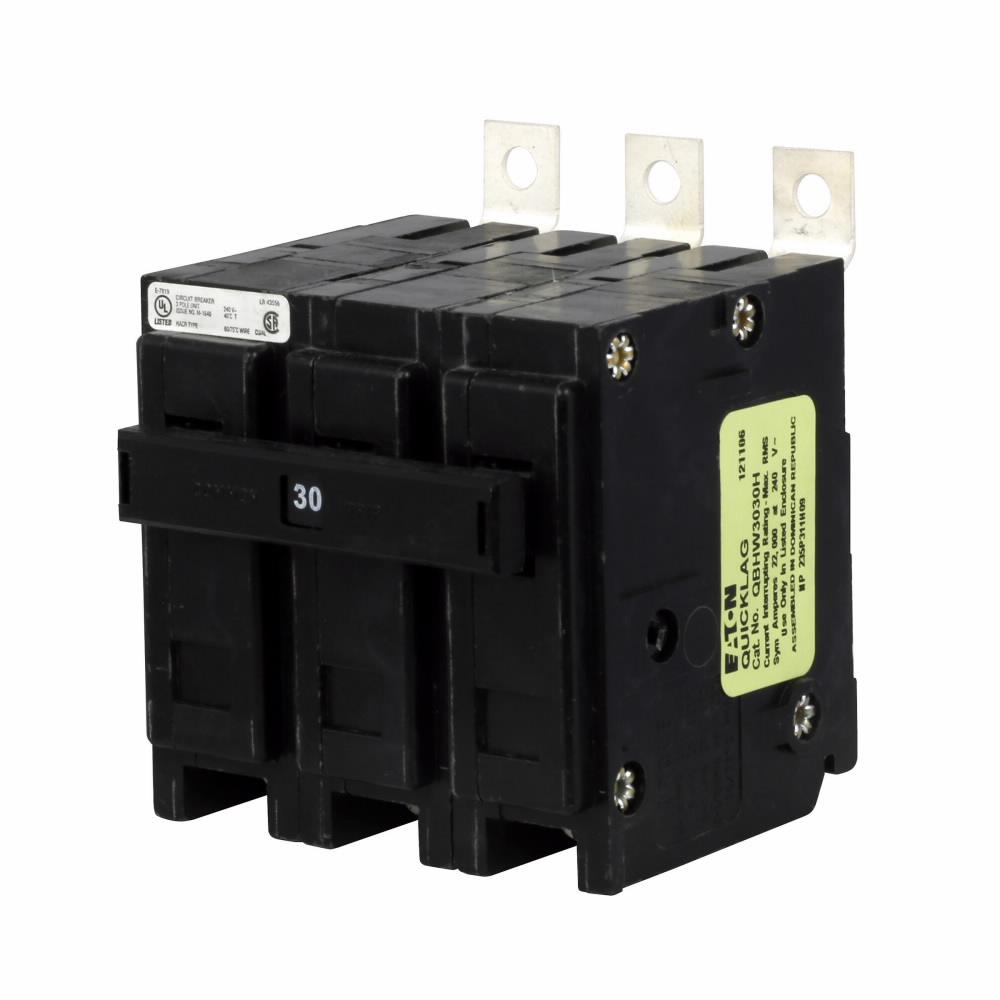

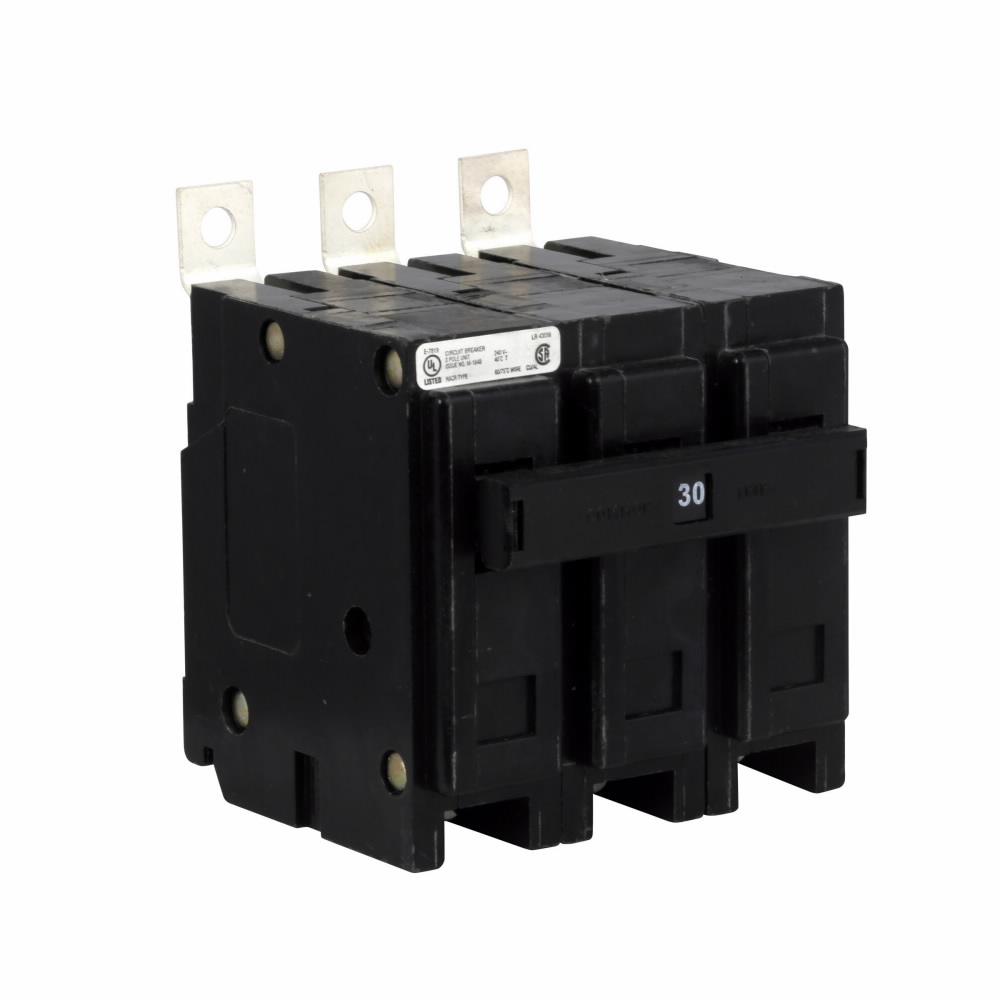

Eaton QBHW3030H Circuit Breaker – 30A – 3-Pole – 240V – 22kAIC – Bolt-On – QBHW Series

The Eaton Cutler-Hammer QBHW3030H is a 30A, 3-pole Quicklag thermal-magnetic circuit breaker designed for three-phase electrical protection applications. It is rated for 240V AC and provides a 22kAIC interrupting rating.

The breaker features bolt-on mounting, a non-interchangeable trip, and a thermal-magnetic trip mechanism. It is HACR rated and designed for compatible Eaton/Cutler-Hammer electrical distribution equipment.

Specifications

• Brand: Eaton / Cutler-Hammer
• Product Type: Thermal-Magnetic Circuit Breaker
• Series: QBHW
• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Circuit Breaker Type: QBHW
• Catalog No.: QBHW3030H
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V AC
• Interrupting Rating: 22kAIC
• Trip Technology: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Ratings: HACR Rated
• Quantity: Q32
• Product Weight: 1.1 lb
• Dimensions (H × W × L): 4.7 × 3.2 × 3.8 in
• Application: Three-Phase Circuit Protection
• Authenticity: Authentic Eaton / Cutler-Hammer Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): QBHW3030H
• Catalog Number: QBHW3030H
• Product Family: QBHW / Quicklag
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Circuit Breaker
• Model: QBHW3030H
• upc:786679393307

Compatibility

Designed for use with compatible Eaton / Cutler-Hammer Quicklag QBHW electrical distribution equipment requiring a 30A, 3-pole bolt-on circuit breaker. The QBHW3030H is suitable for compatible 240V AC, 3-phase applications with a 22kAIC interrupting rating.

Always verify the exact panelboard or load center model, system voltage, interrupting requirements, mounting configuration, and approved breaker combinations before installation.

Certifications

• UL Listed
• CSA Certified
• HACR Rated
• Authentic Eaton / Cutler-Hammer Product
