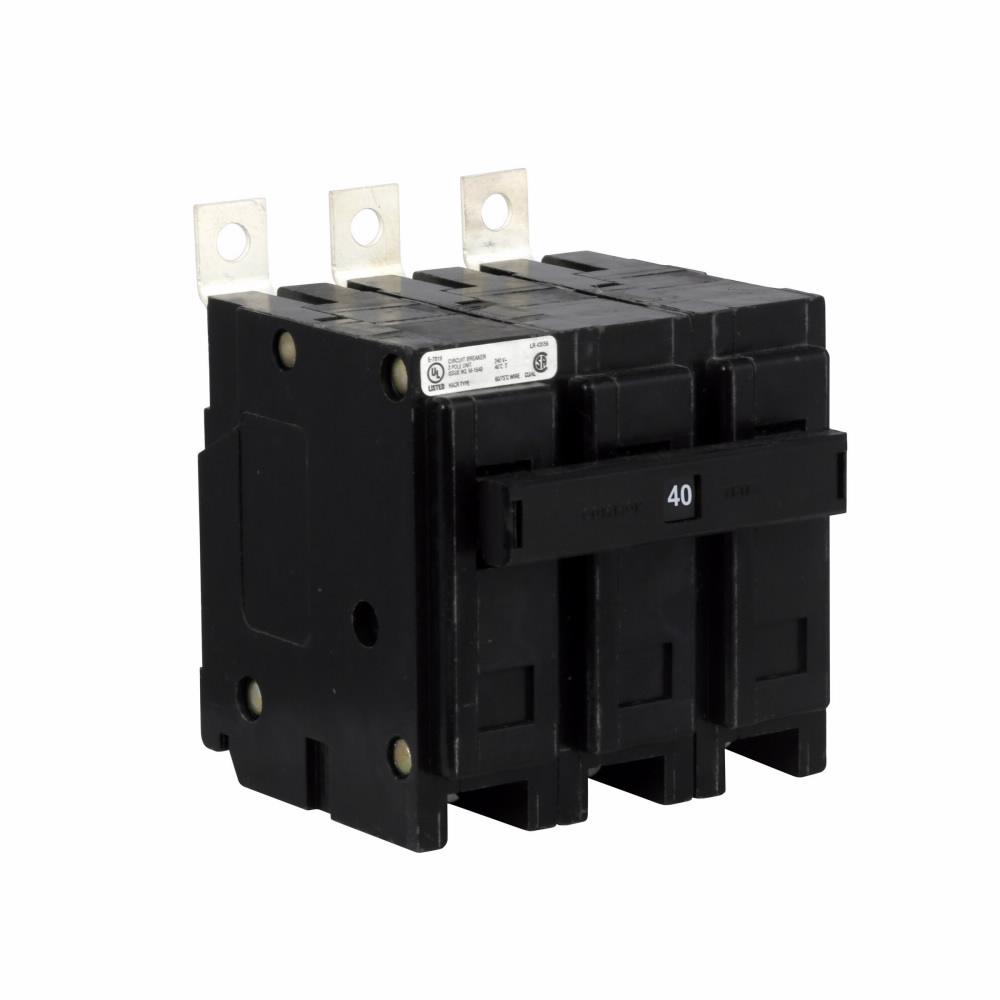

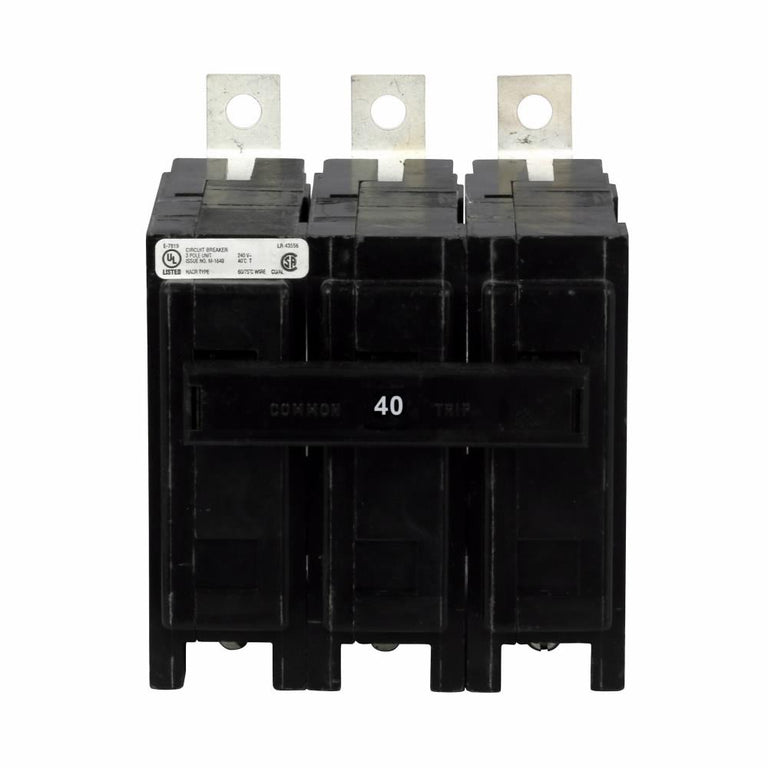

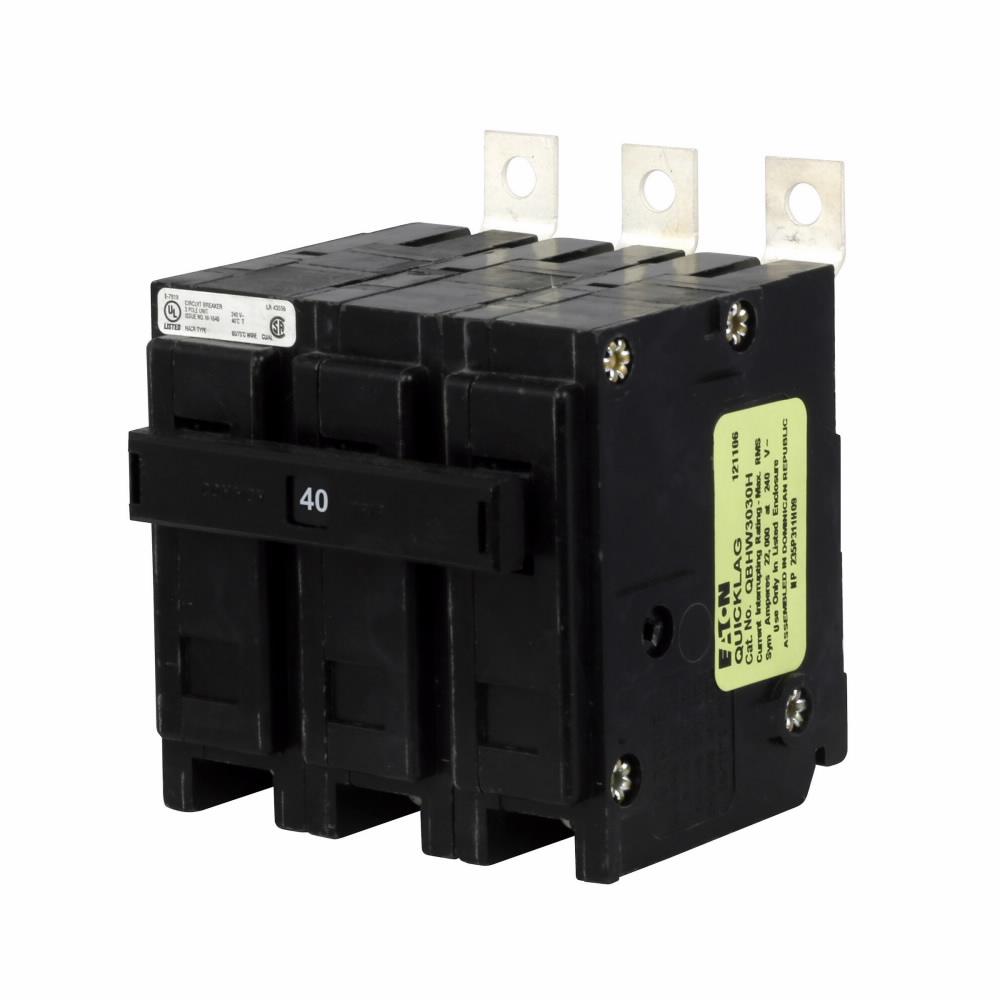

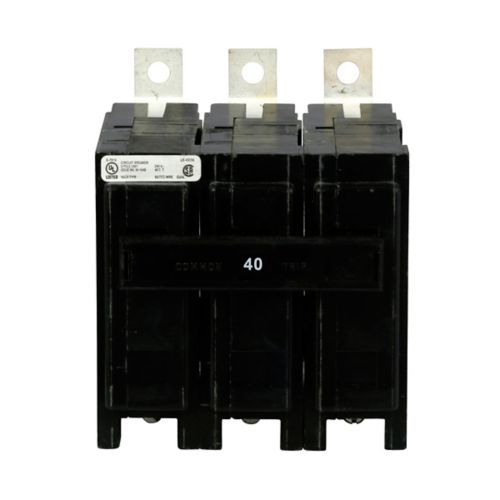

Eaton QBHW3040H Circuit Breaker – 40A – 3-Pole – 240V AC – 22kAIC – Bolt-On – Quicklag Industrial

The Eaton Cutler-Hammer QBHW3040H is a 40A, 3-pole thermal-magnetic circuit breaker from the Quicklag Industrial series. It is rated for 240V AC and provides a 22kAIC interrupting rating for compatible electrical distribution applications.

The QBHW3040H features a bolt-on connection, non-interchangeable trip, and a compact design intended for compatible three-phase applications. It is HACR rated, with CSA certification and UL Listing.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Brand: Eaton / Cutler-Hammer
• Product Type: Circuit Breaker
• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Circuit Breaker Type: QBHW
• Catalog No.: QBHW3040H
• Type: Quicklag
• Current Rating: 40A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V AC
• Protection Type: Thermal-Magnetic
• Interrupting Rating: 22kAIC
• Mounting Type: Bolt-On
• Trip Type: Non-Interchangeable
• Temperature Rating: 40°C
• HACR Rating: HACR Rated
• Quantity: Q32
• Dimensions (H × W × L): 4.7" × 3.2" × 3.8"
• Product Length: 3.8 in
• Product Height: 4.7 in
• Product Width: 3.2 in
• Product Weight: 1.1 lb
• Authenticity: Authentic Eaton / Cutler-Hammer Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QBHW3040H
• Catalog Number: QBHW3040H
• Product Family: Quicklag Industrial
• Series: QBHW
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Circuit Breaker
• Model: QBHW3040H
• Breaker Configuration: 3-Pole, 40A
• upc:786679393406

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Quicklag Industrial electrical distribution equipment that accepts QBHW bolt-on circuit breakers. The QBHW3040H is configured for 3-phase, 40A, 240V AC applications.

Always verify the specific panelboard or load center model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and terminal requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• HACR Rated
• Quicklag Industrial
• 40A Rating
• 3-Pole / 3-Phase
• 240V AC Rated
• 22kAIC Interrupting Rating
• Thermal-Magnetic Protection
• Bolt-On Mounting
• Non-Interchangeable Trip
• Genuine Eaton / Cutler-Hammer Product
