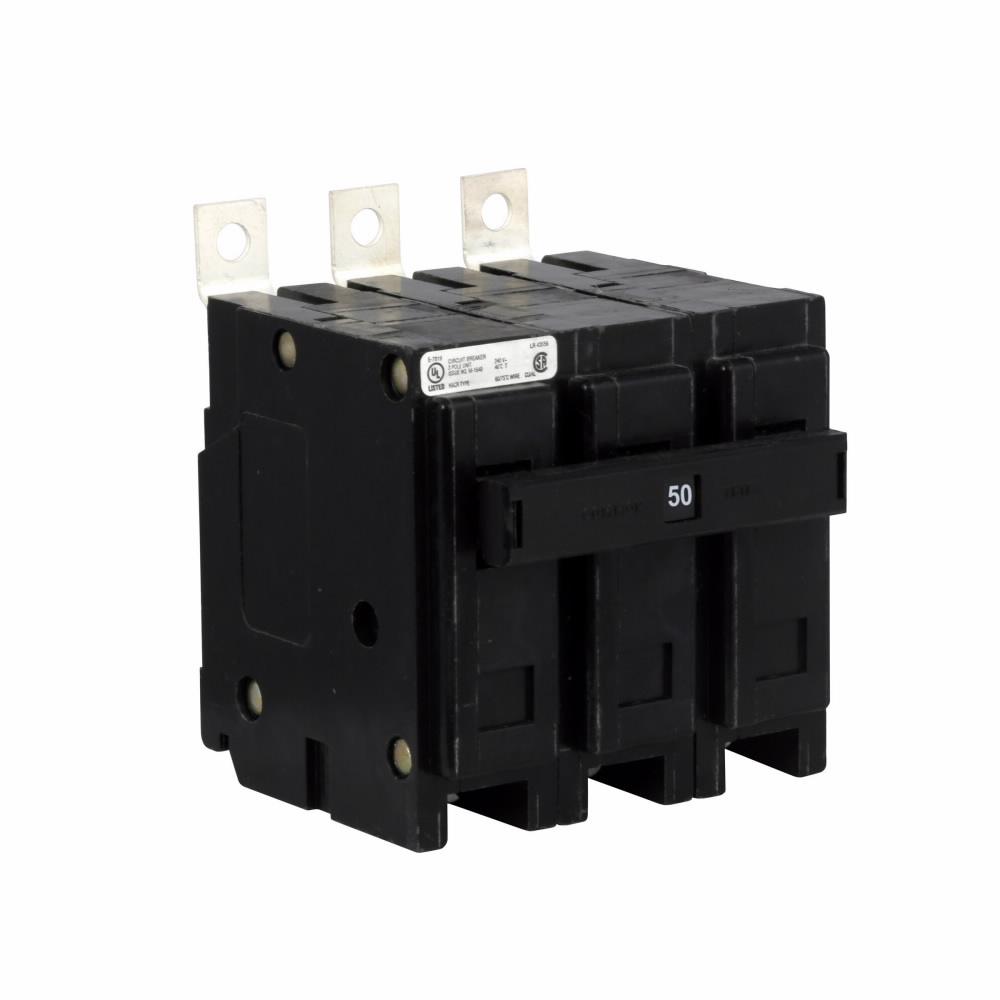

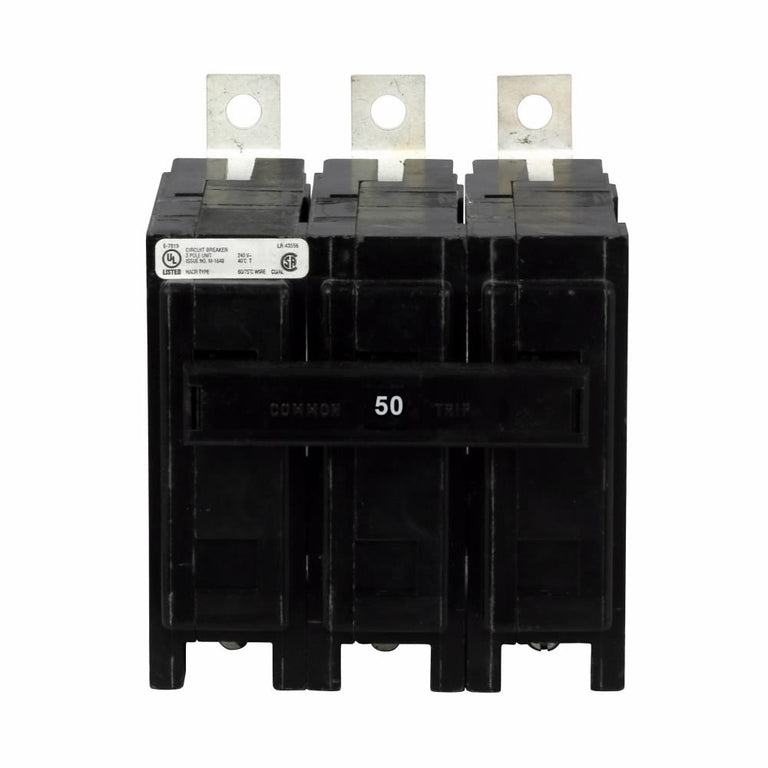

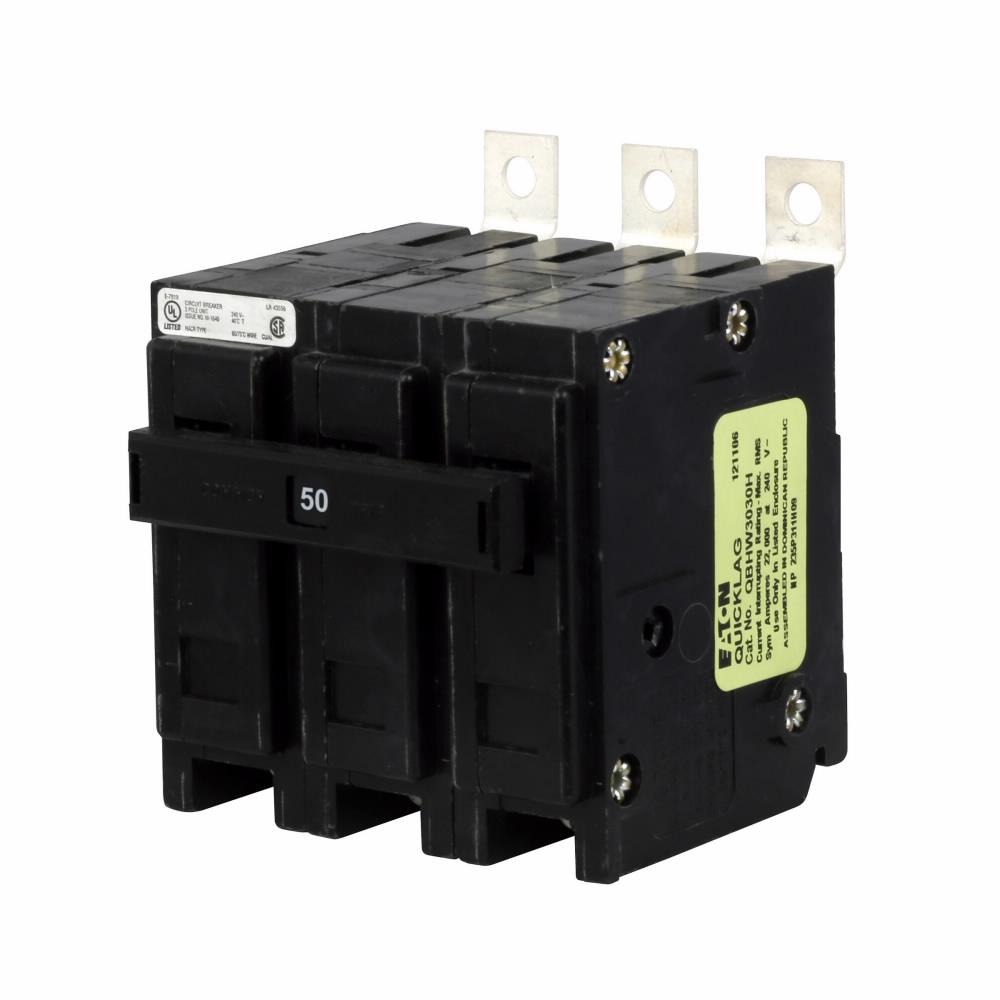

Eaton QBHW3050H Circuit Breaker – 50A – 3-Pole – 240V AC – 22kAIC – Bolt-On – Quicklag Industrial

The Eaton Cutler-Hammer QBHW3050H is a 50A, 3-pole, 3-phase thermal-magnetic miniature circuit breaker from the Quicklag Industrial family. It is rated for 240V AC and provides a 22kAIC interrupting rating.

The breaker features a bolt-on connection, a non-interchangeable trip, and is HACR rated. It is designed for compatible electrical distribution and circuit protection applications.

Specifications:

• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Miniature Circuit Breaker
• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Catalog No.: QBHW3050H
• Circuit Breaker Type: QBHW
• Series / Type: Quicklag Industrial
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V AC
• Interrupting Rating: 22kAIC
• Trip Technology: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Catalog Notes: HACR Rated
• Quantity: Q32
• Dimensions (H × W × L): 4.7" × 3.2" × 3.8"
• Height: 4.7"
• Width: 3.2"
• Length: 3.8"
• Weight: 1.1 lb
• Application: Electrical circuit protection
• Authenticity: Authentic Eaton / Cutler-Hammer Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QBHW3050H
• Catalog Number: QBHW3050H
• Product Family: Quicklag Industrial
• Series: QBHW
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Miniature Circuit Breaker
• Model: QBHW3050H
• Breaker Configuration: 3-Pole, 50A
• upc:786679393451

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Quicklag Industrial electrical distribution equipment that accepts QBHW Series bolt-on circuit breakers. The QBHW3050H provides 50A, 3-pole circuit protection at 240V AC with a 22kAIC interrupting rating.

Always verify the specific equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• Quicklag Industrial
• 50A Rating
• 3-Pole / 3-Phase
• 240V AC Rated
• 22kAIC Interrupting Rating
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Bolt-On Mounting
• HACR Rated
• Genuine Eaton / Cutler-Hammer Product
