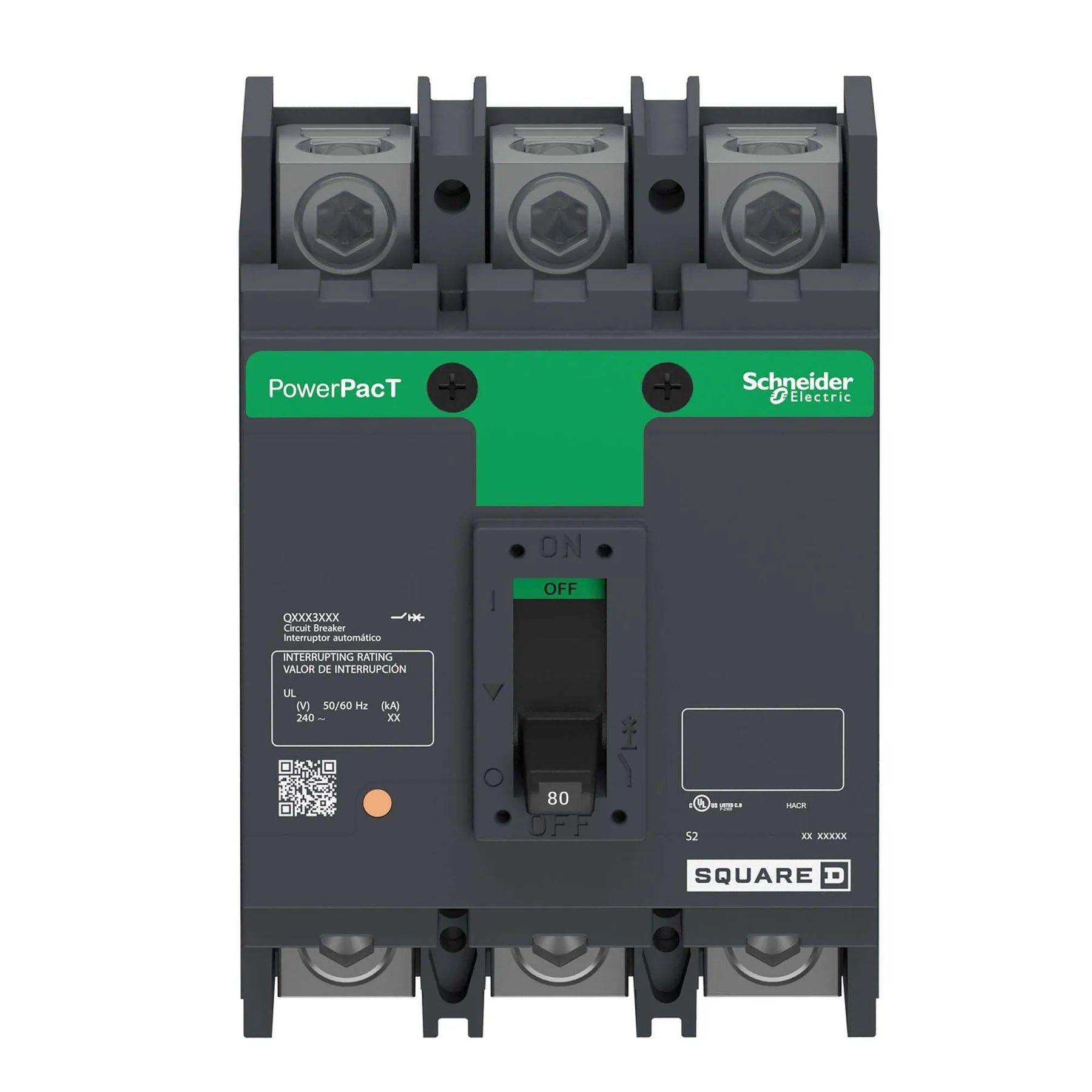

Square D QBL32080 80 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 10 kA@240 V – Feed-Thru – PowerPact

The Square D QBL32080 is an 80 Amp, 3-pole molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type QBL. It is rated for 240 V and provides a 10 kA interrupting rating at 240 V with standard interrupting capacity. The breaker features thermal-magnetic protection and a non-interchangeable trip unit with LI (Long-Time and Instantaneous) trip functions. It is designed for feed-thru installation and includes line and load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: QBL
• Catalog Number / MPN: QBL32080
• Primary Rating: 80 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 10 kA @ 240 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: QBL32080
• Series: PowerPact
• Type: QBL
• Current Rating: 80 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 785901458548

Compatibility

The Square D QBL32080 is designed for compatible Schneider Electric / Square D PowerPact Type QBL electrical distribution applications

Certifications

• UL Listed
