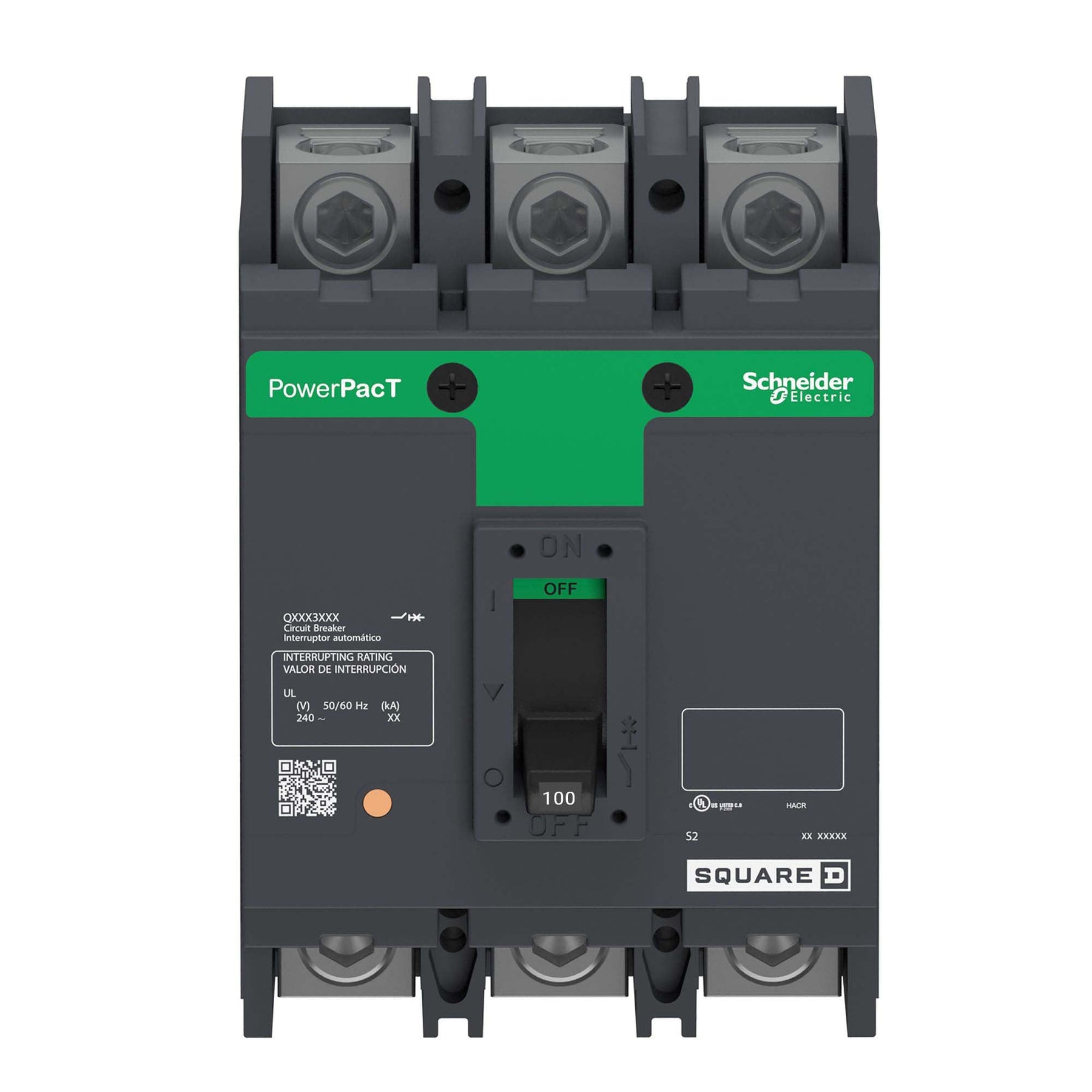

Square D QBL32100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Feed-Thru – PowerPact QBL Series

The Square D QBL32100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact QBL Series. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with a non-interchangeable trip.

The QBL32100 is rated for 240V and provides a 10kA interrupting rating at 240V with standard interrupting capacity. It features Long-Time and Instantaneous (LI) trip functions, a feed-thru configuration, and line-side and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: QBL
• Type: QBL
• Catalog No.: QBL32100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QBL32100
• Catalog Number: QBL32100
• Model: QBL32100
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: QBL
• Type: QBL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:785901702870

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact QBL Series electrical distribution equipment that accepts QBL Series molded case circuit breakers. The QBL32100 provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 240V applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact QBL Series
• 100A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA @ 240V Interrupting Rating
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
