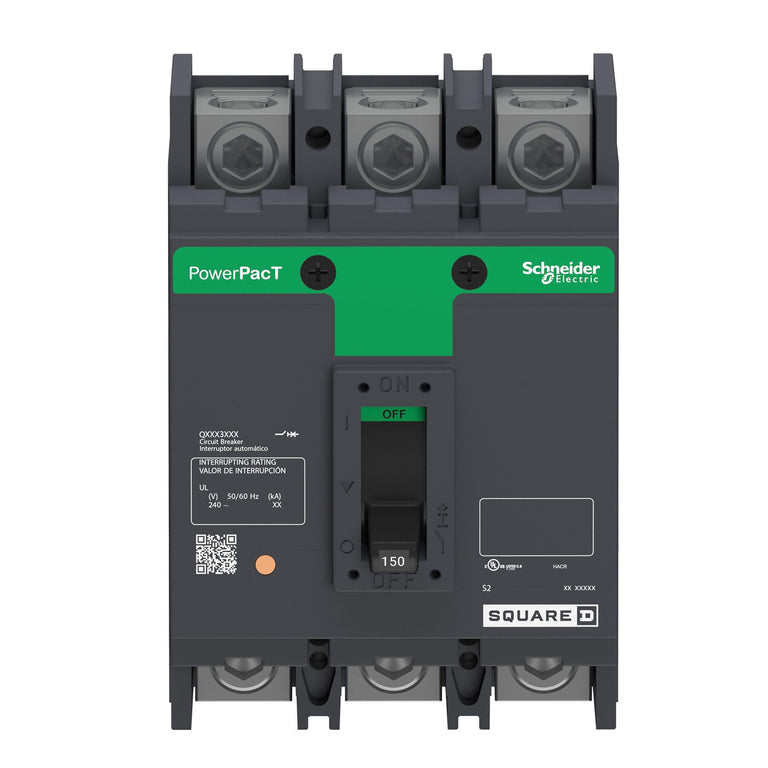

Square D QBL32150 Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Feed-Thru – PowerPact QBL

The Square D QBL32150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact family, Type QBL. It features thermal-magnetic protection with a non-interchangeable Long-Time and Instantaneous (LI) trip.

The QBL32150 is rated for 240V and provides a 10kA interrupting rating at 240V with standard interrupting capacity. It features a feed-thru configuration with line-side and load-side lug terminals and is designed for compatible electrical distribution applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: QBL
• Type: QBL
• Catalog No.: QBL32150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QBL32150
• Catalog Number: QBL32150
• Model: QBL32150
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: QBL
• Type: QBL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• UPC:785901417835

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact Type QBL electrical distribution equipment that accepts QBL Series molded case circuit breakers. The QBL32150 provides 150A, 3-pole thermal-magnetic protection for compatible 240V applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
