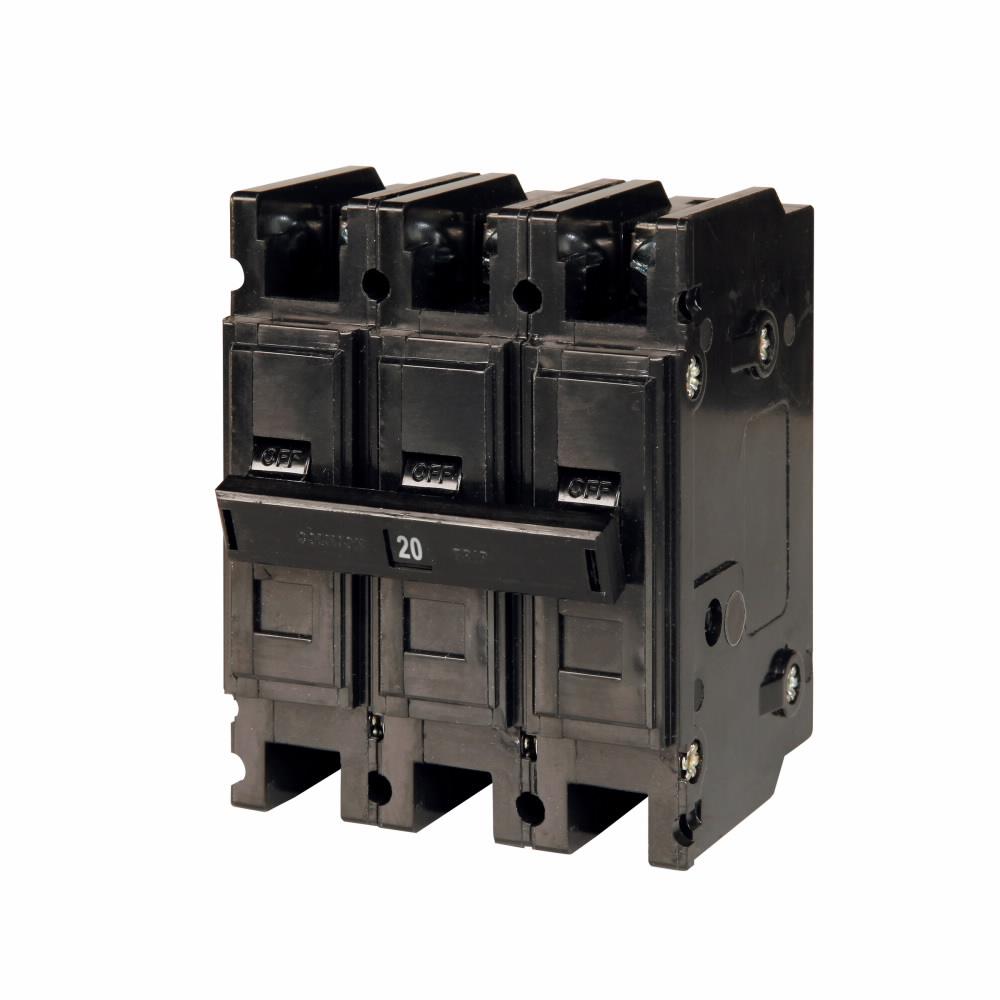

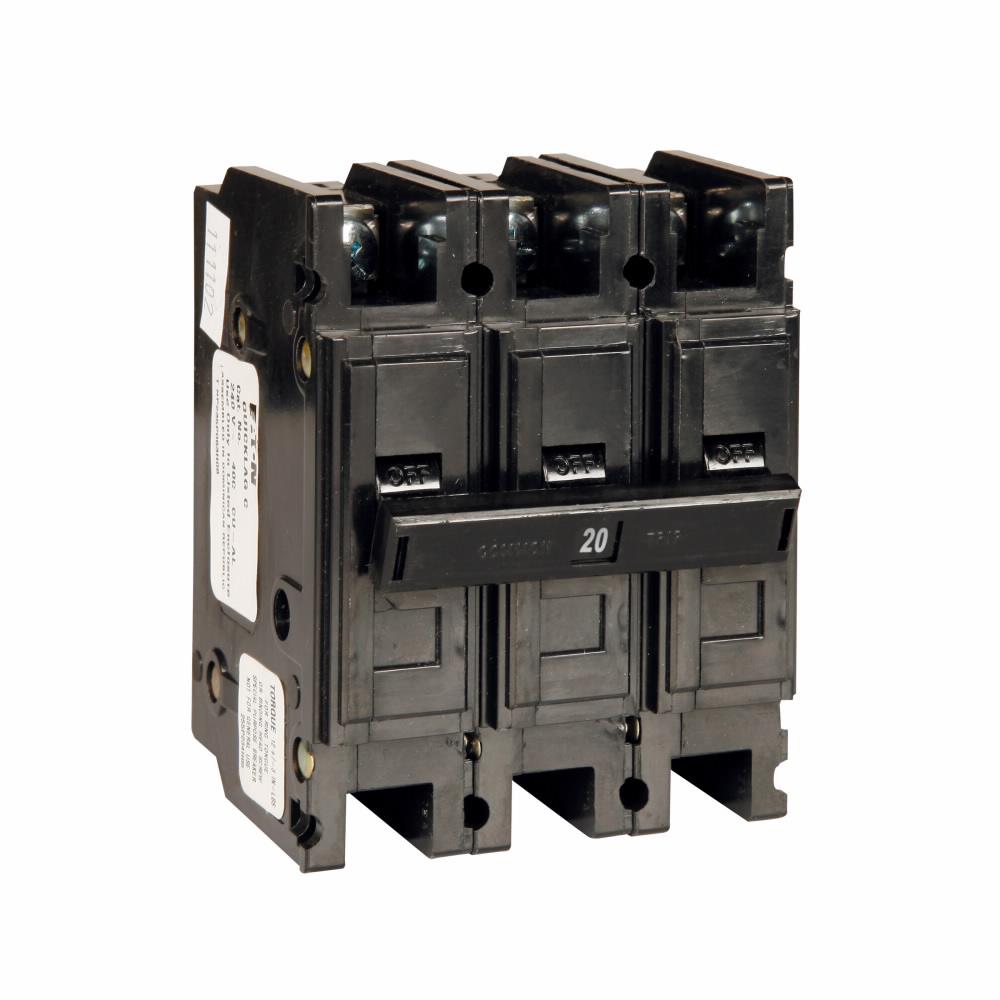

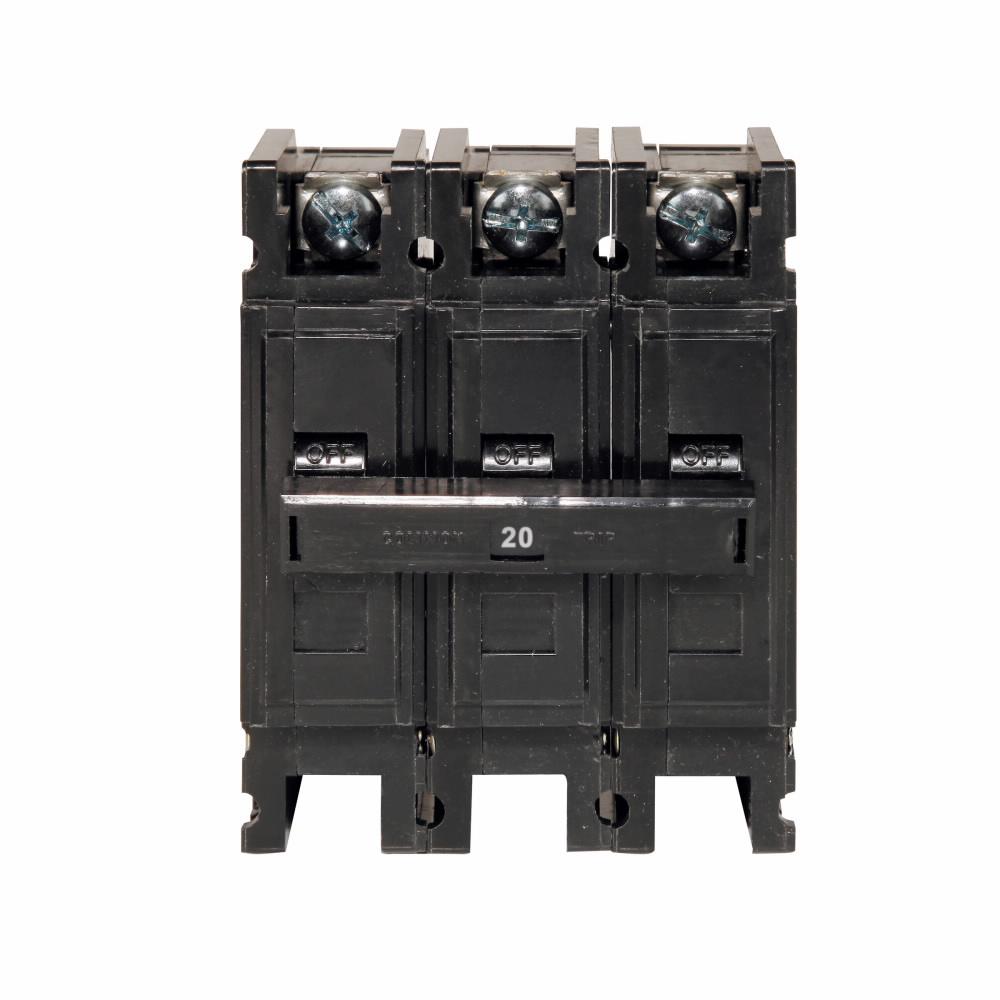

Eaton QC3020H Circuit Breaker – 20A – Feed-Thru – 240V AC – 10kA – Thermal-Magnetic – QC Series

The Eaton QC3020H is a 20A feed-thru circuit breaker from the Cutler-Hammer QC Series. It features a fixed thermal-magnetic, non-interchangeable trip and is rated for 240V AC at 40°C with a 10,000A interrupting rating.

The breaker accommodates 14–10 AWG aluminum or copper line conductors and uses ring terminals for electrical connections.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Circuit Breaker
• Catalog No.: QC3020H
• Product Family: QC Series
• Current Rating: 20A
• Voltage Rating: 240V AC
• Temperature Rating: 40°C
• Interrupting Rating: 10,000A
• Protection Type: Thermal-Magnetic
• Trip Type: Fixed, Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Ring Terminals
• Line Wire Size: 14–10 AWG Aluminum/Copper
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QC3020H
• Catalog Number: QC3020H
• Product Family: QC Series Circuit Breakers
• Series: QC
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Feed-Thru Circuit Breaker
• Model: QC3020H
• Current Rating: 20A
• upc:786679240069

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer QC Series electrical distribution equipment that accepts the QC3020H circuit breaker. The breaker provides 20A thermal-magnetic overcurrent protection for compatible 240V AC applications and accommodates 14–10 AWG aluminum or copper conductors.

Always verify the specific electrical equipment model, approved breaker type, system voltage, conductor size, terminal arrangement, interrupting rating, and installation requirements before installation.

Certifications:

• QC Series
• 20A Rated
• 240V AC Rated
• 10kA Interrupting Rating
• Thermal-Magnetic Protection
• Fixed Non-Interchangeable Trip
• Feed-Thru Configuration
• Ring Terminals
