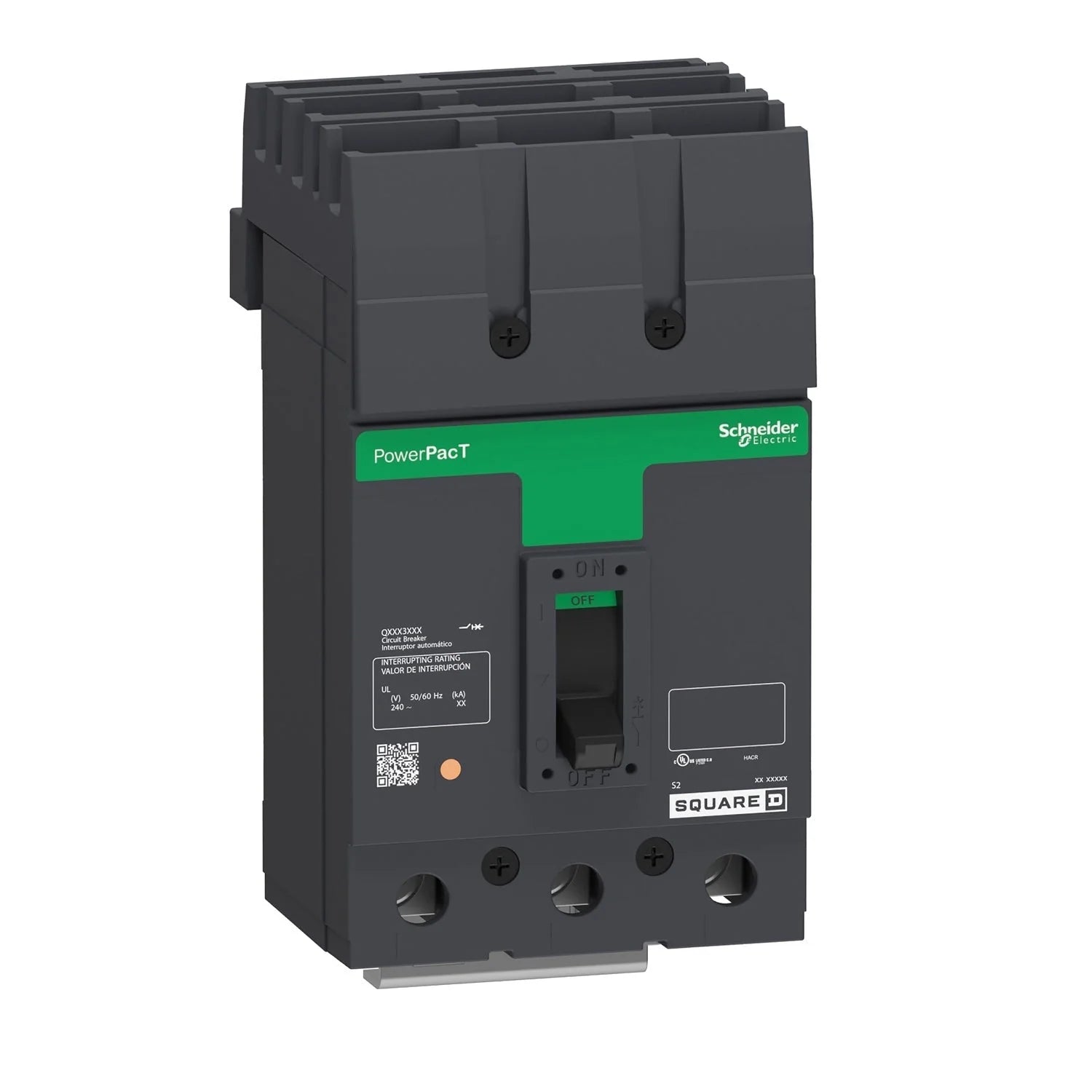

Square D QDA32125 125 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 25 kA@240 V – I-Line Plug-In – QDA Series

The Square D QDA32125 is a 125 Amp, 3-pole molded case circuit breaker from the Square D I-Line Series, Type QDA. It features an ABC phase connection and is rated for 240 V with a 25 kA interrupting rating at 240 V. The breaker has standard interrupting capacity, a non-interchangeable trip unit with LI (Long-Time and Instantaneous) trip functions, and thermal-magnetic protection. It is designed for I-Line style plug-in installation and includes load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: I-Line
• Type: QDA
• Catalog Number / MPN: QDA32125
• Primary Rating: 125 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Phase Connection: ABC
• Voltage: 240 V
• Interrupting Rating: 25 kA @ 240 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: I-Line Style Plug-In
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: QDA32125
• Series: I-Line
• Type: QDA
• Current Rating: 125 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: I-Line Style Plug-In
• Terminals: Load-Side Lug Terminals
• UPC: 785901702900

Compatibility

The Square D QDA32125 is designed for compatible Square D I-Line Type QDA panelboard applications.

Certifications

• UL Listed
