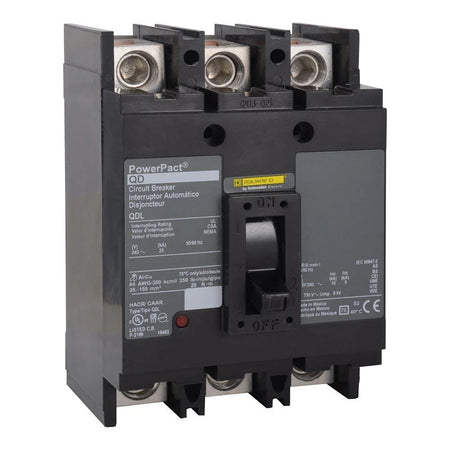

Square D QDL32100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 240V – 25kA @ 240V – Feed-Thru – PowerPact QDL Series

The Square D QDL32100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact QDL Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The QDL32100 is rated for 240V and provides a 25kA interrupting rating at 240V with standard interrupting capacity. It features a feed-thru configuration and is supplied complete with line-side and load-side lug terminals. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: QDL
• Type: QDL
• Catalog No.: QDL32100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 25kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QDL32100
• Catalog Number: QDL32100
• Model: QDL32100
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: QDL
• Type: QDL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:785901662402

Compatibility:

Designed for use with compatible Square D PowerPact QDL Series electrical distribution equipment that accepts QDL Series molded case circuit breakers. The QDL32100 provides 100A, 3-pole thermal-magnetic protection for compatible 240V, 3-phase electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact QDL Series
• 100A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 25kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
