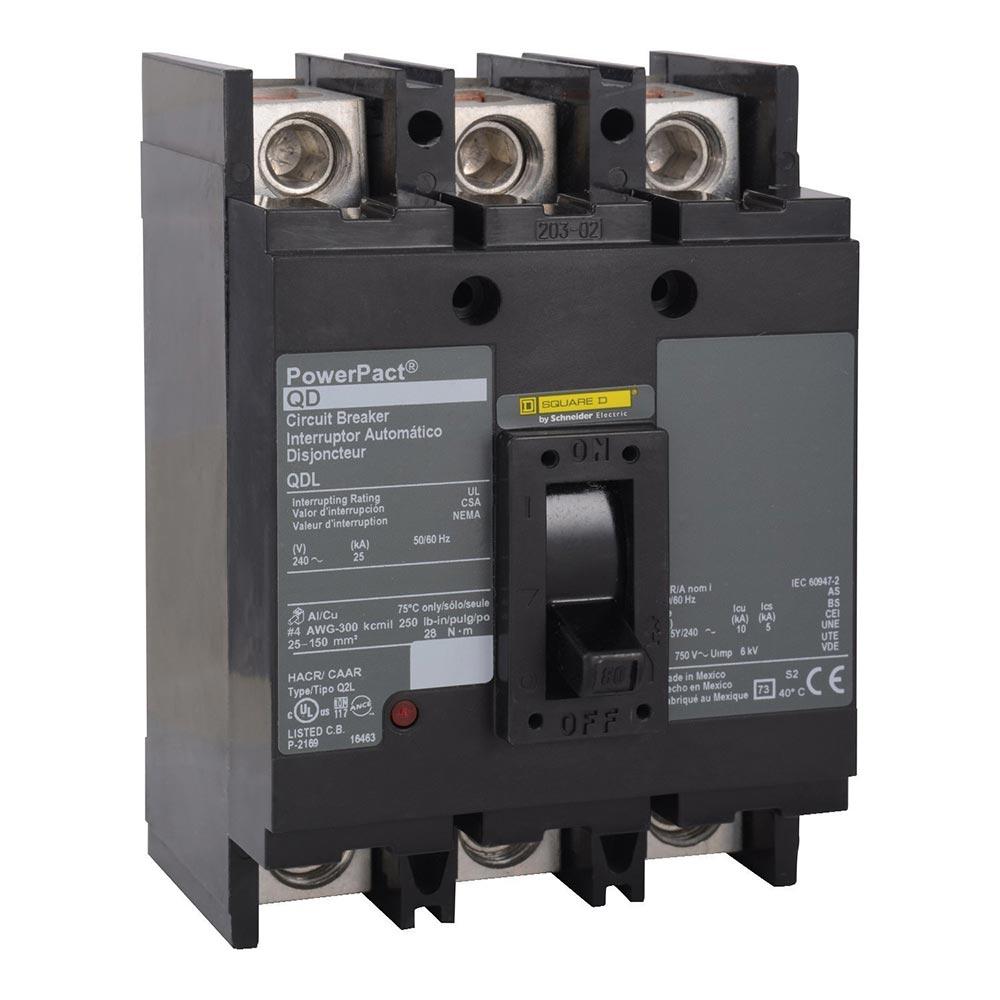

Square D QDL32200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V – 25kA @ 240V – Feed-Thru – PowerPact QDL Series

The Square D QDL32200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type QDL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The QDL32200 is rated for 240V with a 25kA interrupting rating at 240V. It has a standard interrupting capacity, uses a feed-thru configuration, and includes line-side and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: QDL
• Type: QDL
• Catalog No.: QDL32200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 25kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QDL32200
• Catalog Number: QDL32200
• Model: QDL32200
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: QDL
• Type: QDL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• UPC:785901662686

Compatibility:

Designed for use with compatible Square D PowerPact QDL Series electrical distribution equipment that accepts QDL Series molded case circuit breakers. The QDL32200 provides 200A, 3-pole, 3-phase thermal-magnetic protection for compatible 240V applications.

The breaker features Long-Time and Instantaneous (LI) trip functions, a non-interchangeable trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact QDL Series
• 200A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 25kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Genuine Square D / Schneider Electric Product
