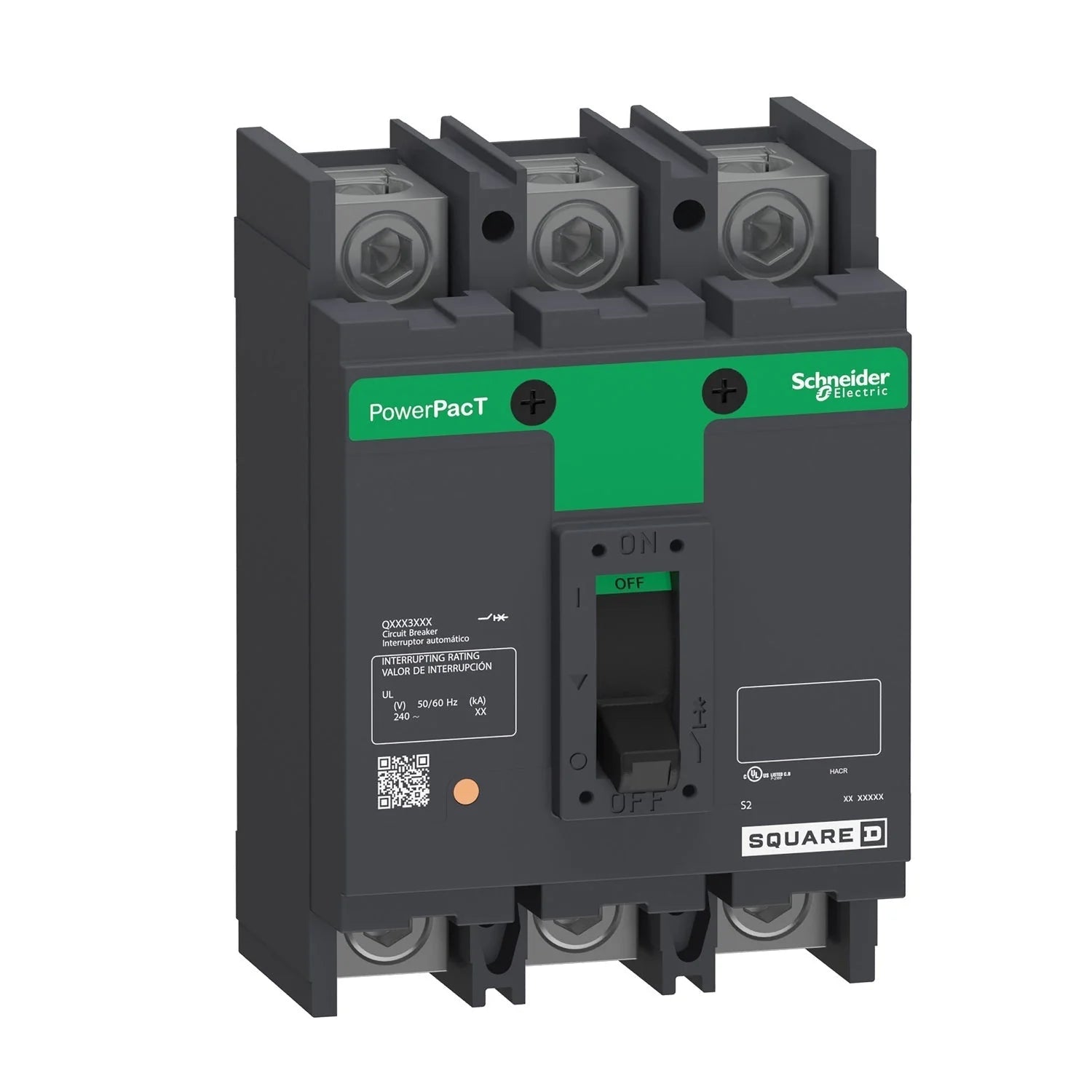

Square D QDP32100TM Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 240V – 25kA @ 240V – Bolt-On – PowerPact QDP Series

The Square D QDP32100TM is a 100A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type QDP Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The QDP32100TM is rated for 240V and provides a 25kA interrupting rating at 240V with standard interrupting capacity. It features a bolt-on mounting configuration, is supplied as a complete breaker, and includes a line-side lug terminal. The breaker is designed for top-feed main applications and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: QDP
• Type: QDP
• Catalog No.: QDP32100TM
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 25kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Line-Side Lug Terminal
• Feed Configuration: Top Feed Main
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QDP32100TM
• Catalog Number: QDP32100TM
• Model: QDP32100TM
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: QDP
• Type: QDP
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Configuration: Non-Interchangeable LI Trip
• UPC:785901879664

Compatibility:

Designed for use with compatible Square D PowerPact QDP Series electrical distribution equipment that accepts QDP Series bolt-on molded case circuit breakers. The QDP32100TM provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 240V, 3-phase electrical distribution applications.

The breaker features Long-Time and Instantaneous (LI) trip functions, a non-interchangeable trip, bolt-on mounting, and a top-feed main configuration with a line-side lug terminal. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, feed configuration, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact QDP Series
• 100A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 25kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Bolt-On Mounting
• Top Feed Main
• Line-Side Lug Terminal
• Complete Breaker
