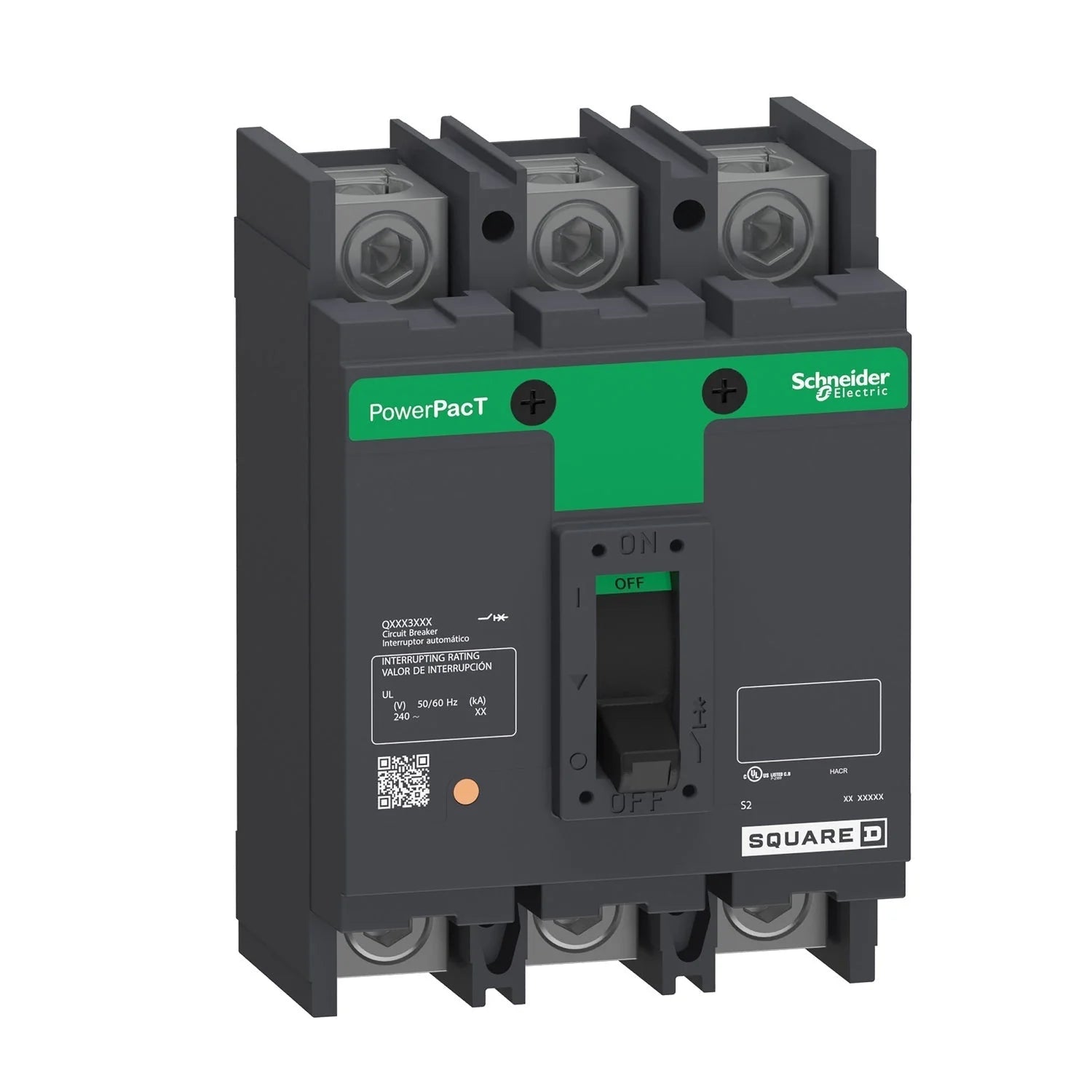

Square D QDP32150TM 150 Amp PowerPact QDP Molded Case Circuit Breaker – 3 Pole – 240V AC – 25 kA @ 240V – Thermal-Magnetic Trip

The Square D QDP32150TM is a PowerPact QDP molded case circuit breaker designed for three-phase electrical distribution and circuit protection. Rated at 150A and 240V AC, it provides a standard interrupting capacity of 25kA at 240V. The breaker features bolt-on mounting, a non-interchangeable thermal-magnetic trip unit, and LI protection functions for long-time and instantaneous overcurrent protection. Its top-feed main configuration includes line-side lug terminals.

Specifications

• Brand: Square D / Schneider Electric
• Product Series: PowerPact QDP
• Catalog Number: QDP32150TM
• Circuit Breaker Type: Molded Case Circuit Breaker (MCCB)
• Type: QDP
• Current Rating: 150A
• Number of Poles: 3
• Phase: 3-phase
• Voltage Rating: 240V AC
• Interrupting Capacity: 25kA at 240V AC
• Interrupting Class: Standard
• Mounting Type: Bolt-on
• Trip Unit: Non-interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Protection Type: Thermal-magnetic
• Terminal Configuration: Line-side lug terminals
• Feed Configuration: Top-feed main

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• MPN: QDP32150TM
• Product Family: PowerPact QDP
• Type Reference: QDP
• UPC:785901511892

Compatibility

Designed for compatible Square D PowerPact QDP bolt-on panelboard and distribution applications. Its three-pole configuration, top-feed main arrangement, and line-side lug terminals support installations requiring a 150A, 240V AC breaker with thermal-magnetic LI protection.

Certifications

• UL Rating: UL Listed
• Interrupting Classification: Standard interrupting capacity
