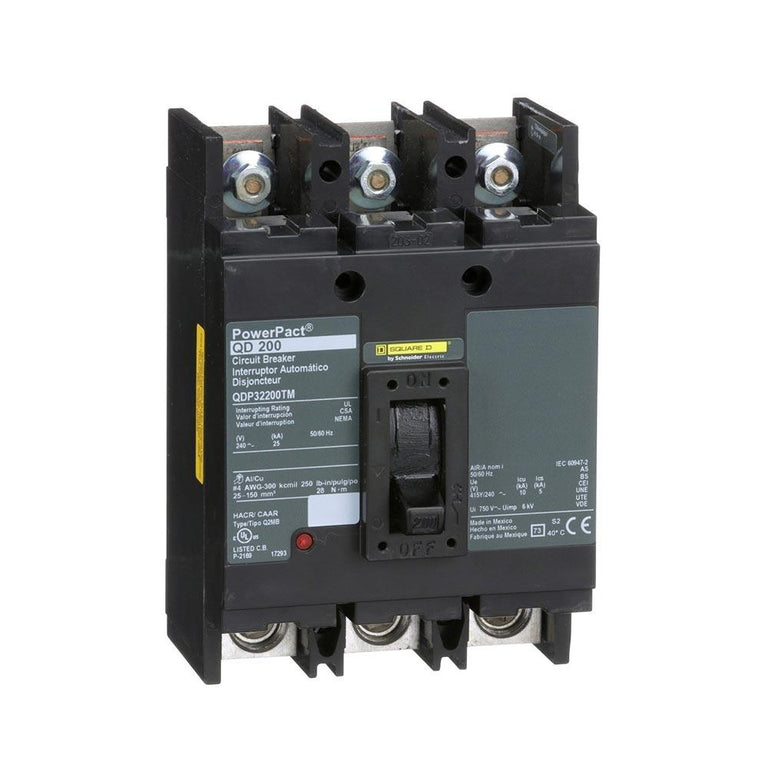

Square D QDP32200TM Molded Case Circuit Breaker – 200A – 3-Pole – 240V – 25kA @ 240V – Bolt-On – PowerPact QDP Series

The Square D QDP32200TM is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact QDP Series. It features thermal-magnetic protection with a non-interchangeable Long-Time and Instantaneous (LI) trip.

The breaker is rated for 240V with a 25kA interrupting rating at 240V. It uses a bolt-on configuration, includes a line-side lug terminal, and is designed as a top-feed main for compatible electrical distribution applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: QDP
• Type: QDP
• Catalog No.: QDP32200TM
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 25kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Bolt-On
• Terminal Configuration: Line-Side Lug Terminal
• Feed Configuration: Top Feed Main
• Application: Electrical Distribution and Overcurrent Protection
• Ratings: UL Listed
• Brand: Square D
• Authenticity: Authentic Square D / Schneider Electric Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QDP32200TM
• Catalog Number: QDP32200TM
• Product Family: Square D PowerPact
• Series: QDP
• Type: QDP
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: QDP32200TM
• Breaker Configuration: 3-Pole, 200A
• upc:785901671398

Compatibility:

Designed for use with compatible Square D PowerPact QDP Series electrical distribution equipment that accepts QDP molded case circuit breakers. The QDP32200TM provides 200A, 3-pole thermal-magnetic protection for compatible 240V applications with a 25kA interrupting rating at 240V.

The breaker features a bolt-on connection, non-interchangeable LI trip functions, line-side lug termination, and top-feed main configuration. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, feed arrangement, terminal requirements, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact QDP Series
• 200A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 25kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Bolt-On Mounting
• Line-Side Lug Terminal
• Top Feed Main
• Genuine Square D / Schneider Electric Product
