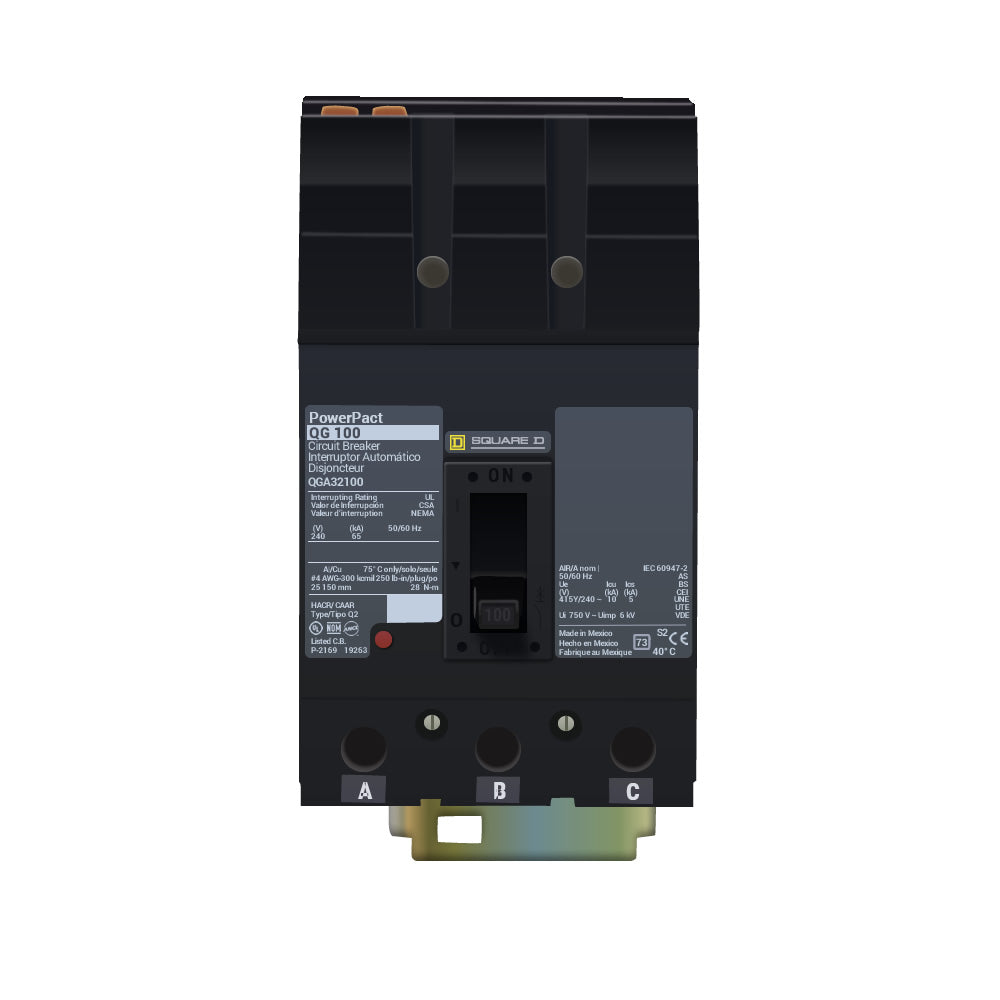

Square D QGA32100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 240V – 65kA @ 240V – I-Line Plug-In – QGA Series

The Square D QGA32100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the Square D QGA Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The QGA32100 is rated for 240V and provides a 65kA interrupting rating at 240V with high interrupting capacity. It features an I-Line style plug-in connection, an ABC phase connection, and a load-side lug terminal. The breaker is supplied as a complete unit for compatible Square D I-Line electrical distribution equipment.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: QGA
• Type: QGA
• Catalog No.: QGA32100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 240V
• Interrupting Rating: 65kA @ 240V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Lug Terminal
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QGA32100
• Catalog Number: QGA32100
• Model: QGA32100
• Product Family: Square D I-Line Circuit Breakers
• Series: QGA
• Type: QGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:785901705574

Compatibility:

Designed for use with compatible Square D I-Line electrical distribution equipment that accepts QGA Series molded case circuit breakers. The QGA32100 provides 100A, 3-pole thermal-magnetic protection for compatible 240V, 3-phase applications.

The breaker uses an I-Line style plug-in connection, ABC phase connection, and load-side lug terminal.

Certifications:

• UL Listed
• I-Line Circuit Breaker
• 100A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 65kA @ 240V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Style Plug-In
• ABC Phase Connection
