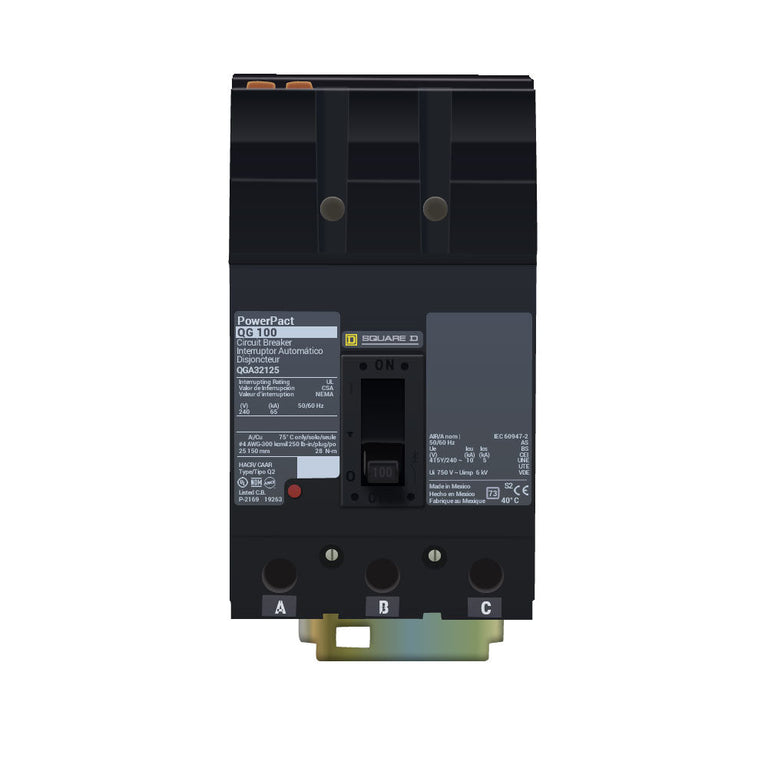

Square D QGA32125 Molded Case Circuit Breaker – 125A – 3-Pole / 3-Phase – 240V – 65kA @ 240V – I-Line Plug-In – QGA Series

The Square D QGA32125 is a 125A, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line Type QGA Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 240V and provides a 65kA interrupting rating at 240V with high interrupting capacity. It uses an I-Line style plug-in connection, has an ABC phase connection, and includes load-side lug terminals. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: QGA
• Type: QGA
• Catalog No.: QGA32125
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 240V
• Interrupting Rating: 65kA @ 240V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QGA32125
• Catalog Number: QGA32125
• Model: QGA32125
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line Molded Case Circuit Breakers
• Series: QGA
• Type: QGA
• Breaker Configuration: 3-Pole, 125A
• Phase Connection: ABC
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:785901705598

Compatibility:

Designed for use with compatible Square D I-Line electrical distribution equipment that accepts Type QGA I-Line style plug-in molded case circuit breakers. The QGA32125 provides 125A, 3-pole thermal-magnetic protection for compatible 240V electrical distribution applications.

The breaker features an ABC phase connection, non-interchangeable LI trip functions, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip requirements, terminal arrangement, and installation specifications before installation.

Certifications:

• UL Listed
• I-Line QGA Series
• 125A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 65kA @ 240V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Lug Terminals
