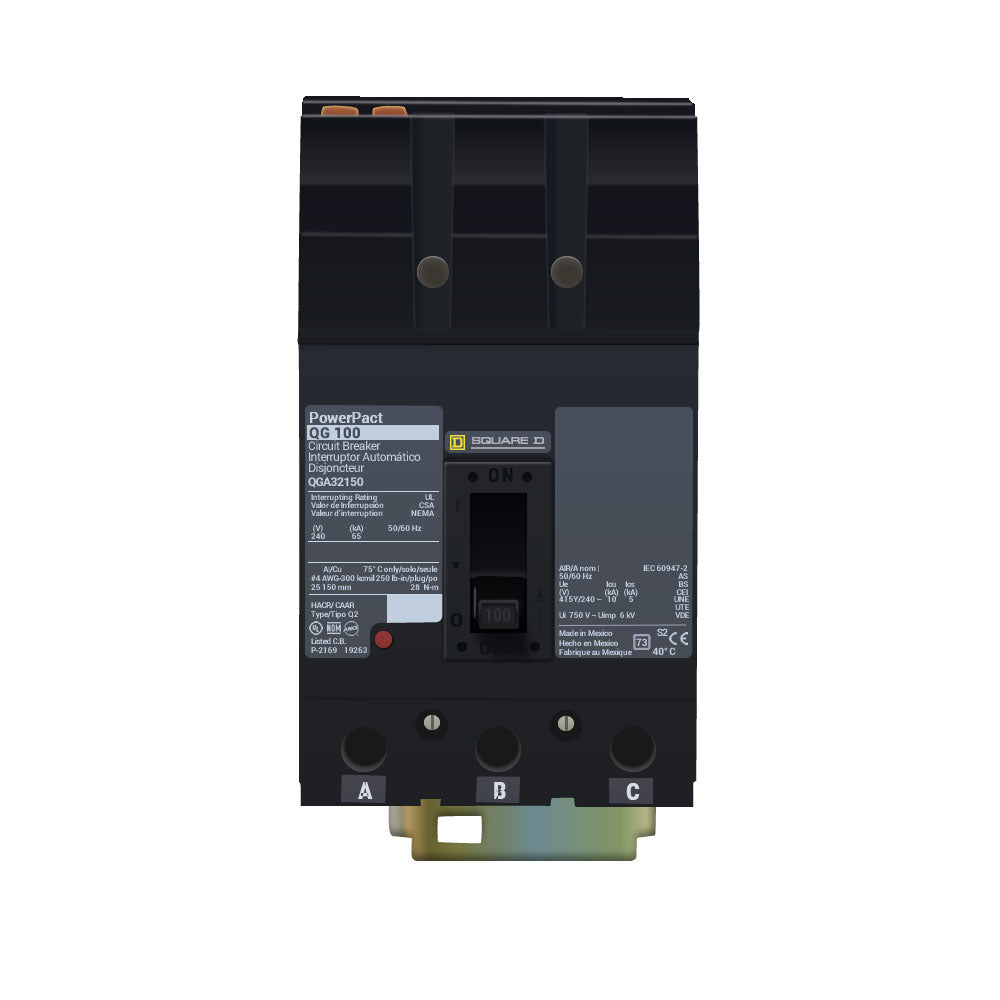

Square D QGA32150 150 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 65 kA@240 V – I-Line Style Plug-In – I-Line Series

The Square D QGA32150 is a 150 Amp, 3-pole molded case circuit breaker from the Square D I-Line Series, Type QGA. It is rated for 240 V with a 65 kA interrupting rating at 240 V and features high interrupting capacity. The breaker uses thermal-magnetic protection with a non-interchangeable trip unit and LI (Long-Time and Instantaneous) trip functions. It is designed for I-Line style plug-in mounting and includes load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: I-Line
• Type: QGA
• Catalog Number / MPN: QGA32150
• Primary Rating: 150 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Phase Connection: ABC
• Voltage: 240 V
• Interrupting Rating: 65 kA @ 240 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: I-Line Style Plug-In
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: QGA32150
• Series: I-Line
• Type: QGA
• Current Rating: 150 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Phase Connection: ABC
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: I-Line Style Plug-In
• Terminals: Load-Side Lug Terminals
• UPC: 785901705604

Compatibility

The Square D QGA32150 is designed for compatible Square D I-Line Type QGA electrical distribution applications.

Certifications

• UL Listed
