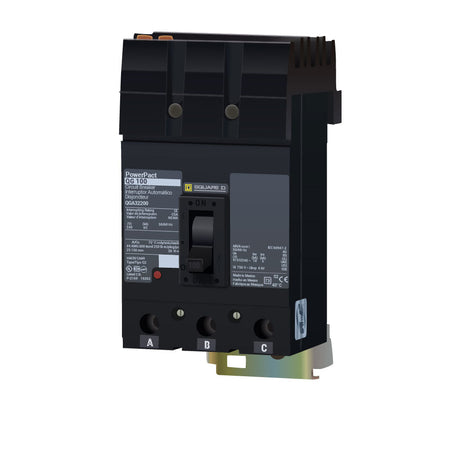

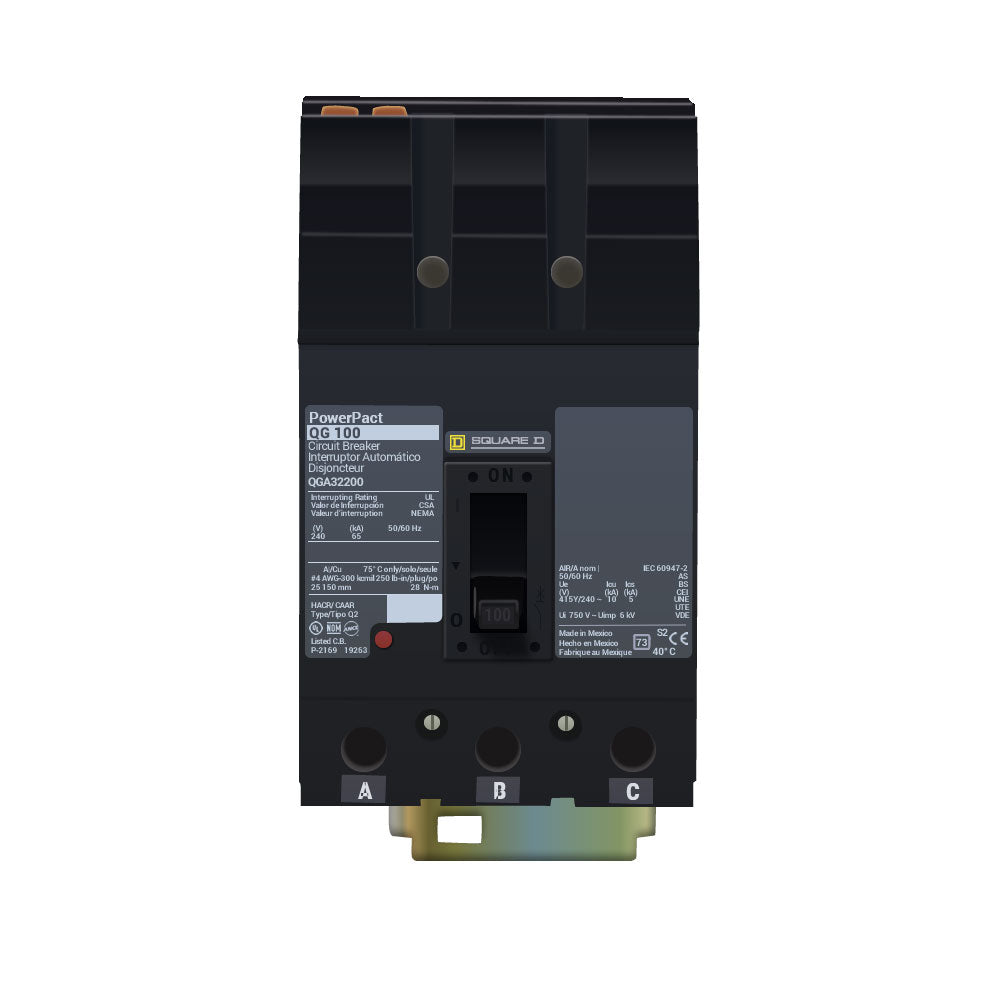

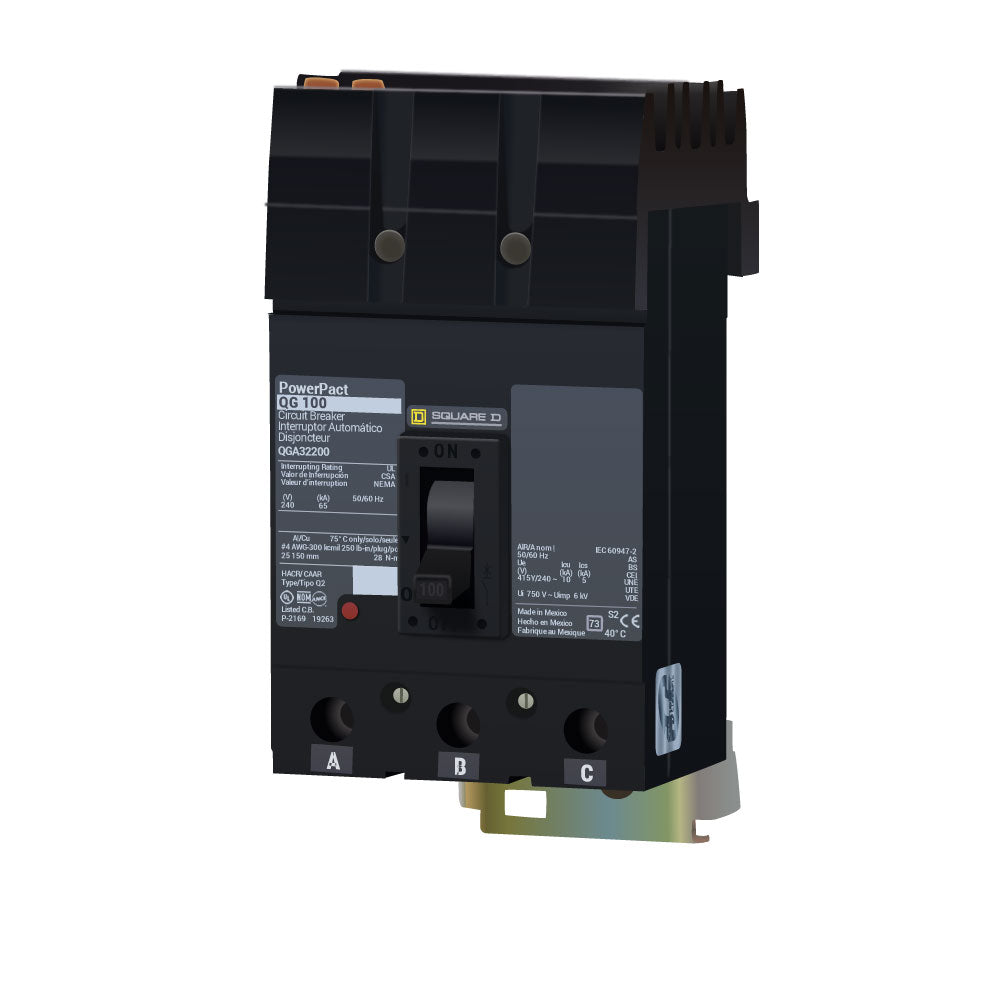

Square D QGA32200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V – 65kA @ 240V – I-Line Plug-In – Type QGA Series

The Square D QGA32200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line Type QGA Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The QGA32200 is rated for 240V with a 65kA interrupting rating at 240V. It uses an I-Line style plug-in connection with an ABC phase connection, includes a load-side lug terminal, and provides high interrupting capacity. It is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: Type QGA
• Type: QGA
• Catalog No.: QGA32200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 240V
• Interrupting Rating: 65kA @ 240V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Configuration: Load-Side Lug Terminal
• Application: Electrical Distribution and Overcurrent Protection
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: Square D
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QGA32200
• Catalog Number: QGA32200
• Product Family: Square D I-Line Molded Case Circuit Breakers
• Series: Type QGA
• Type: QGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: QGA32200
• Breaker Configuration: 3-Pole, 200A
• upc:785901814702

Compatibility:

Designed for use with compatible Square D I-Line electrical distribution equipment that accepts Type QGA I-Line style plug-in molded case circuit breakers. The QGA32200 provides 200A, 3-pole protection for compatible 240V, 3-phase applications and features thermal-magnetic LI protection with a non-interchangeable trip.

The breaker uses an I-Line style plug-in connection with an ABC phase connection and includes a load-side lug terminal. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip-unit requirements, terminal arrangement, and mounting requirements before installation.

Certifications:

• UL Listed
• Type QGA Series
• 200A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 65kA @ 240V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Lug Terminal
• Suitable for Reverse-Fed Applications
