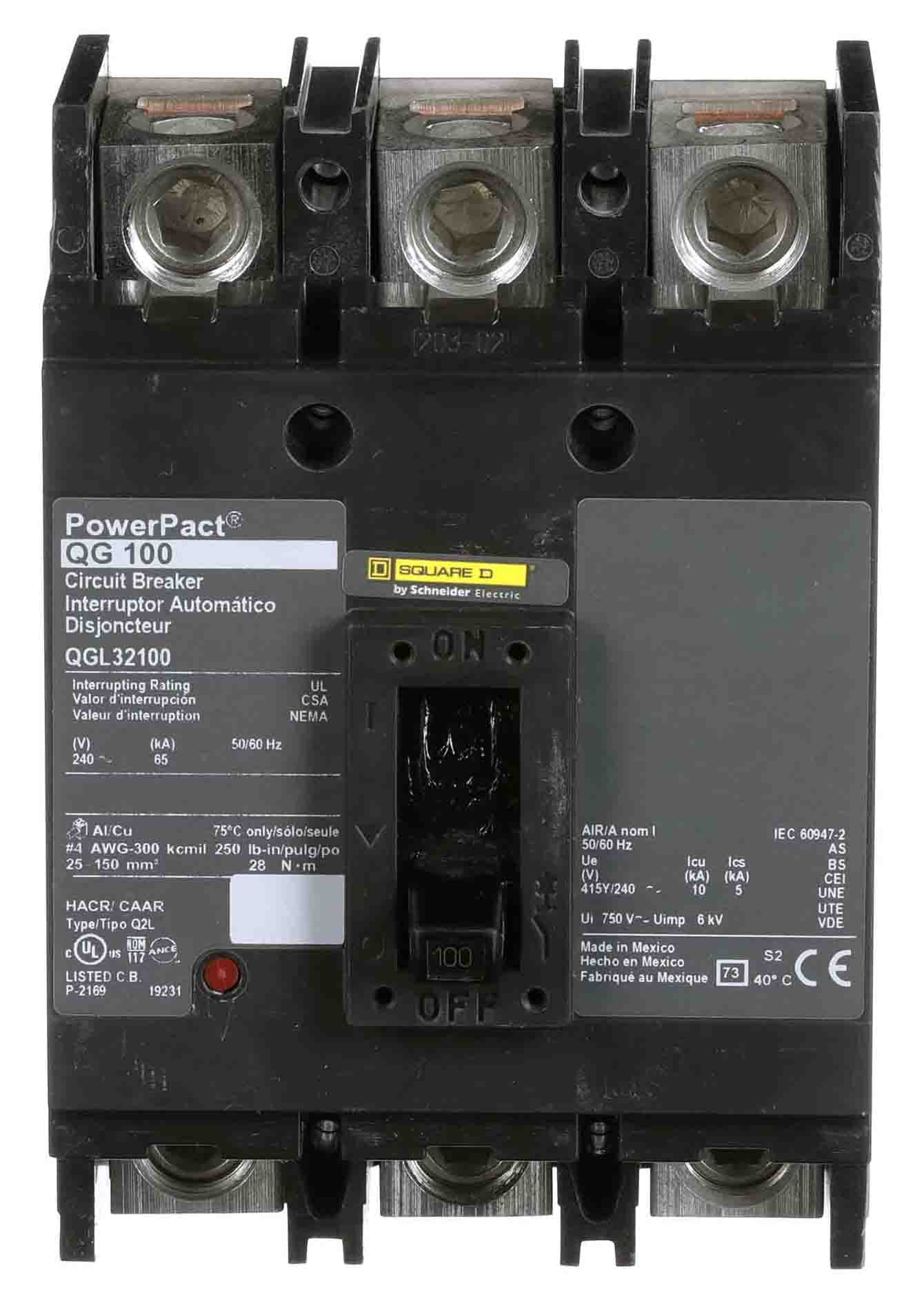

Square D QGL32100 100 Amp PowerPact Molded Case Circuit Breaker – 3 Pole – 240V AC – 65 kA @ 240V

The Square D QGL32100 is a PowerPact QGL molded case circuit breaker designed for three-phase electrical distribution applications. It features a 100A current rating, 240V AC voltage rating, and a high interrupting capacity of 65kA at 240V. The breaker has a feed-through configuration and is equipped with a non-interchangeable trip unit.

Specifications

• Brand: Schneider Electric / Square D
• Product Series: PowerPact
• Type: QGL
• MPN: QGL32100
• Current Rating: 100A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 240V AC
• Interrupting Capacity: 65kA at 240V
• Interrupting Rating: High
• Connection: Feed-through

Part Numbers & Identification

• Manufacturer Part Number: QGL32100
• Product Family: PowerPact QGL
• Product Category: Molded Case Circuit Breaker (MCCB)
• UPC:785901603504

Compatibility

Designed for compatible Square D PowerPact QGL panelboards and distribution equipment requiring a three-pole, 100A breaker with a 240V AC rating and feed-through configuration.

Certifications

• UL Rating: UL Listed
