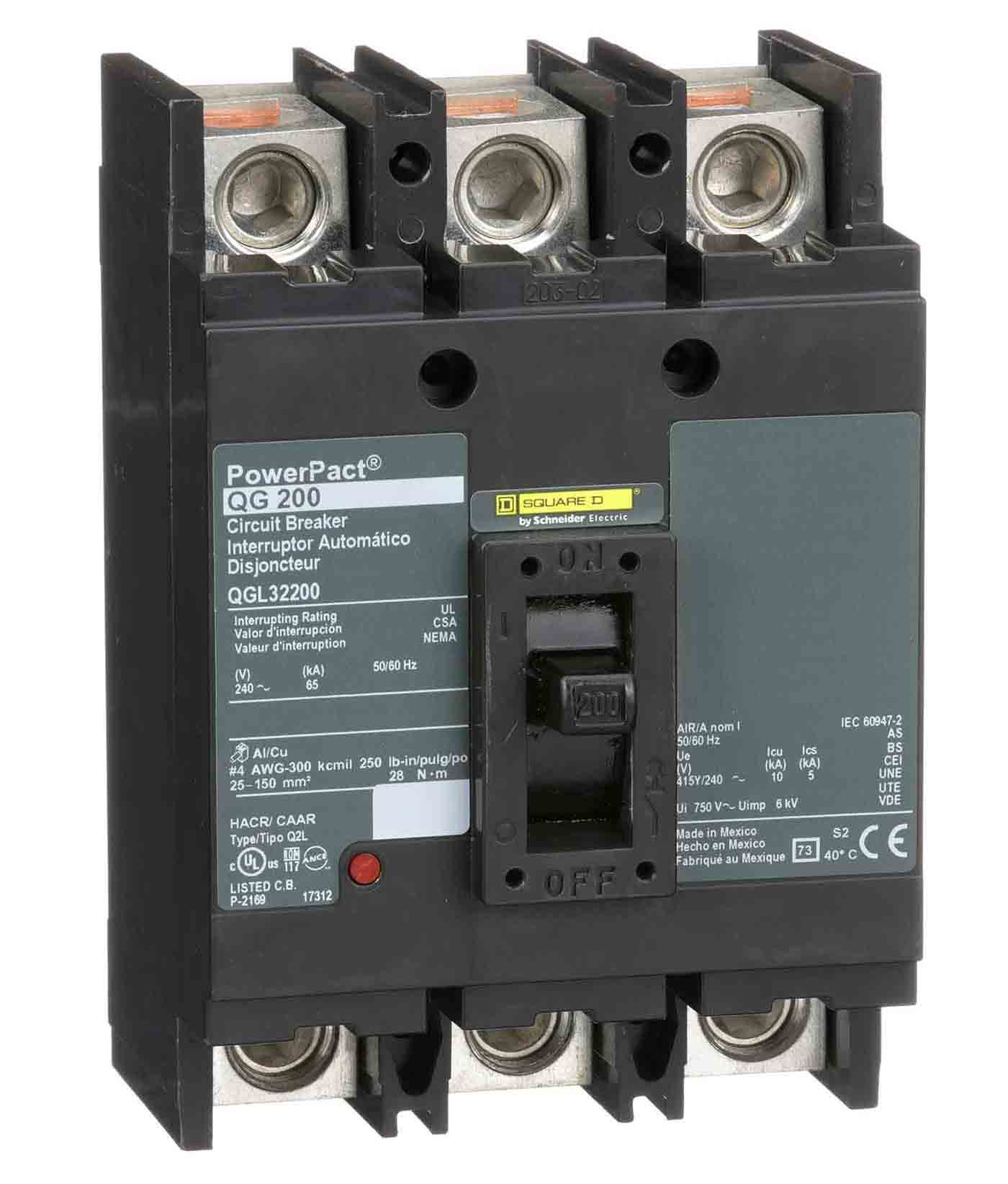

Square D QGL32200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V – 65kA @ 240V – Feed-Thru – PowerPact QGL Series

The Square D QGL32200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type QGL Series. It features a high interrupting capacity and a non-interchangeable trip for compatible electrical distribution applications.

The QGL32200 is rated for 240V and provides a 65kA interrupting rating at 240V. It uses a feed-thru configuration and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: QGL
• Type: QGL
• Catalog No.: QGL32200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 65kA @ 240V
• Interrupting Capacity: High
• Trip Type: Non-Interchangeable
• Connection / Configuration: Feed-Thru
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QGL32200
• Catalog Number: QGL32200
• Model: QGL32200
• Product Family: Square D PowerPact Circuit Breakers
• Series: QGL
• Type: QGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• UPC:785901705642

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact QGL Series electrical distribution equipment that accepts QGL Series molded case circuit breakers. The QGL32200 provides 200A, 3-pole protection for compatible 240V electrical distribution applications.

The breaker features a 65kA interrupting rating at 240V, high interrupting capacity, a non-interchangeable trip, and a feed-thru configuration. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, and mounting/connection arrangement before installation.

Certifications:

• UL Listed
