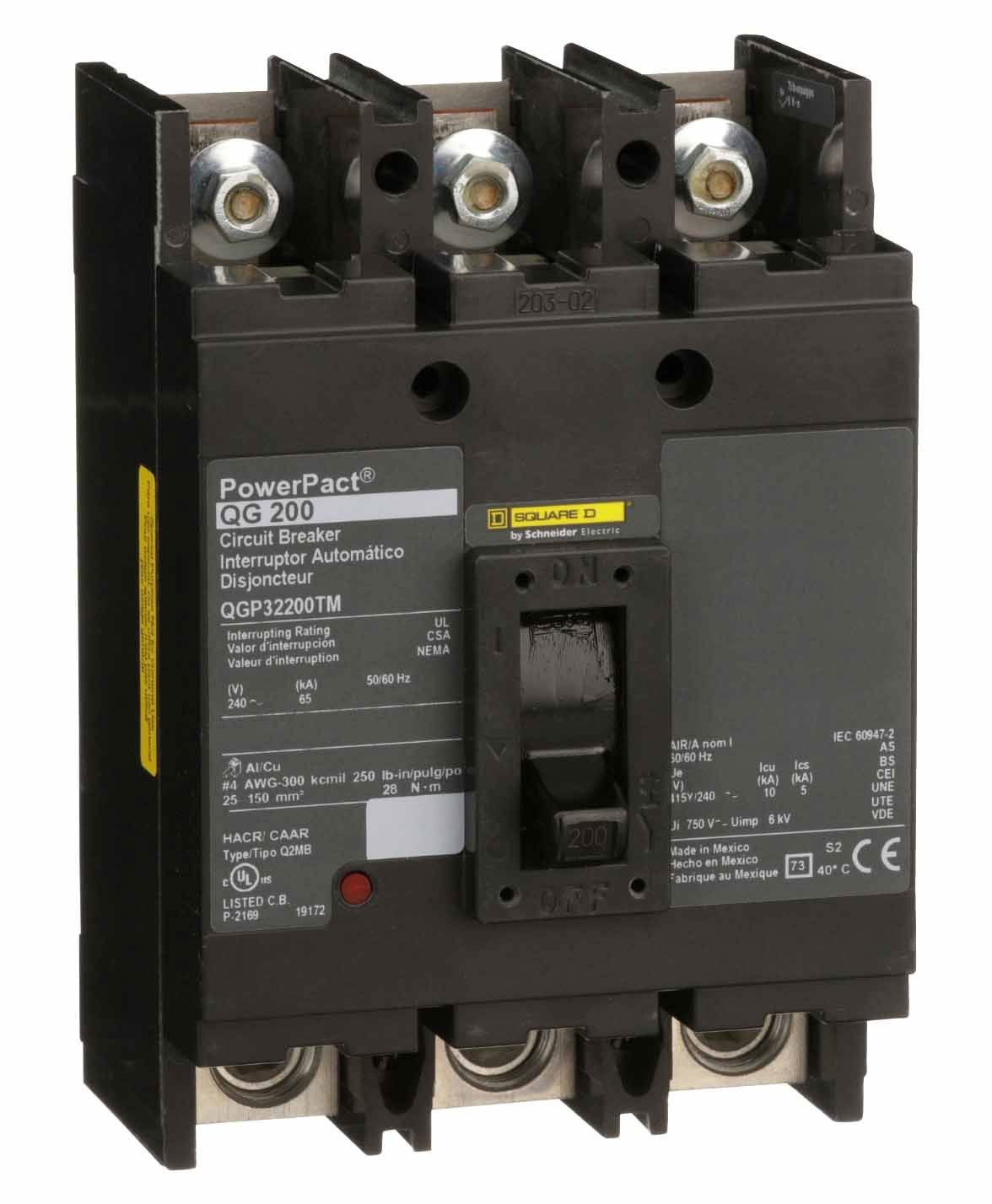

Square D QGP32200TM Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V – 65kA @ 240V – Bolt-On – Meter-Pak QGP Series

The Square D QGP32200TM is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D METER-PAK Type QGP Series. It is designed for use with compatible METER-PAK metering equipment and features very high interrupting capacity.

The QGP32200TM is rated for 240V and provides a 65kA interrupting rating at 240V. It uses a bolt-on mounting configuration and features Long-Time and Instantaneous (LI) trip functions with a non-interchangeable trip. The breaker has line-side lug terminals and is configured as a top-feed main.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: METER-PAK
• Series: QGP
• Type: QGP
• Catalog No.: QGP32200TM
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 65kA @ 240V
• Interrupting Capacity: Very High
• Protection Type: Not specified
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Terminal Type: Line-Side Lug Terminals
• Feed Configuration: Top Feed Main
• Application: METER-PAK Metering Equipment and Electrical Distribution
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QGP32200TM
• Catalog Number: QGP32200TM
• Model: QGP32200TM
• Product Family: Square D METER-PAK Circuit Breakers
• Series: QGP
• Type: QGP
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• UPC:785901434061

Compatibility:

Designed for use with compatible Square D METER-PAK metering equipment, specifically 225A MPL lever-bypass METER-PAK metering equipment. The QGP32200TM provides 200A, 3-pole protection for compatible 240V applications.

The breaker uses a bolt-on configuration, includes line-side lug terminals, and is configured as a top-feed main with non-interchangeable LI trip functions. Always verify the specific METER-PAK equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• METER-PAK QGP Series
• 200A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 65kA @ 240V Interrupting Rating
• Very High Interrupting Capacity
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Bolt-On Mounting
• Line-Side Lug Terminals
• Top Feed Main
