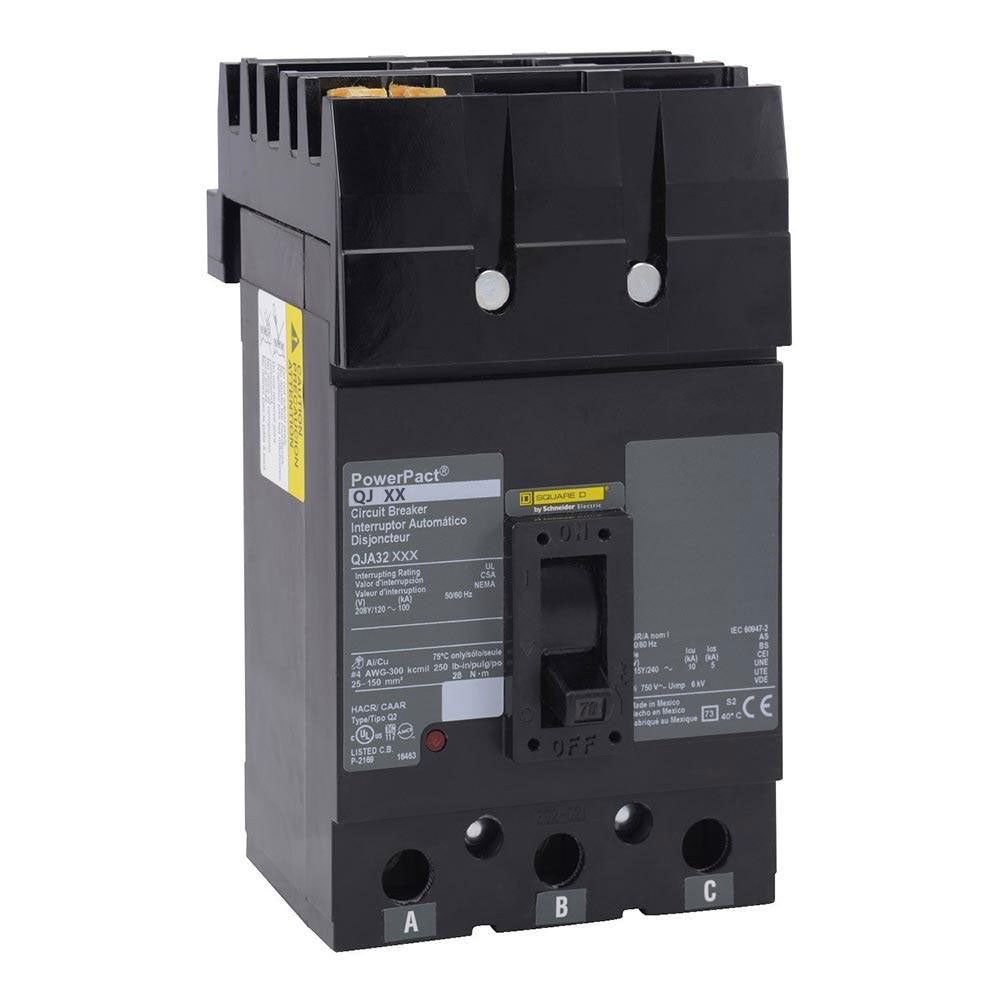

Square D QJA32200 200 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 100 kA@240 V – I-Line Plug-In – QJA Type

The Square D QJA32200 is a 200 Amp, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line product line, Type QJA. It features an ABC phase configuration, a 240 V rating, and 100 kA interrupting capacity at 240 V. The breaker includes a basic non-interchangeable 1.0 trip unit with Long-Time and Instantaneous (LI) protection functions, load-side lug terminals, and I-Line style plug-in mounting. It is a current-limiting, thermal-magnetic electronic molded case circuit breaker.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: I-Line
• Type: QJA
• Catalog Number / MPN: QJA32200
• Primary Rating: 200 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Phase Configuration: ABC
• Voltage: 240 V
• Interrupting Rating: 100 kA @ 240 V
• Interrupting Capacity: Current Limiting
• Trip Type: Thermal-Magnetic Electronic
• Trip Unit: Basic Non-Interchangeable 1.0 Trip
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: I-Line Style Plug-In
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: QJA32200
• Series: I-Line
• Type: QJA
• Current Rating: 200 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Electronic Molded Case Circuit Breaker
• Trip Unit: Basic Non-Interchangeable 1.0
• Trip Functions: LI – Long-Time and Instantaneous
• Phase Configuration: ABC
• Terminals: Load-Side Lug Terminals
• UPC: 785901705673

Compatibility

The Square D QJA32200 is designed for compatible Square D I-Line, Type QJA electrical distribution applications. Verify the specific I-Line panelboard, system voltage, mounting configuration, phase arrangement, and breaker compatibility before installation.

Certifications

• UL Listed
