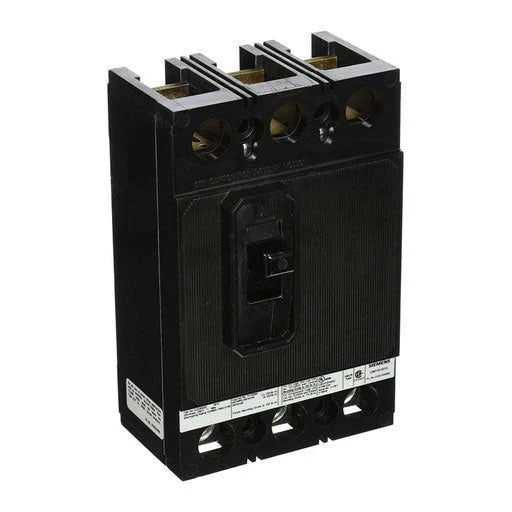

Siemens QJH23B070 70 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 22 kA@240 V – Bolt-On – QJ Frame

The Siemens QJH23B070 is a 70 Amp, 3-pole molded case circuit breaker from the Siemens QJ Frame, Type QJH2. It is rated for 240 V with a 22 kA interrupting capacity at 240 V and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions. The breaker includes a non-interchangeable trip unit, bolt-on mounting, and load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Frame: QJ
• Type: QJH2
• Catalog Number / MPN: QJH23B070
• Primary Rating: 70 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 22 kA @ 240 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: QJH23B070
• Frame: QJ
• Type: QJH2
• Current Rating: 70 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Load-Side Lug Terminals
• UPC: 783643201163

Compatibility

The Siemens QJH23B070 is designed for compatible Siemens QJ Frame, Type QJH2 molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
