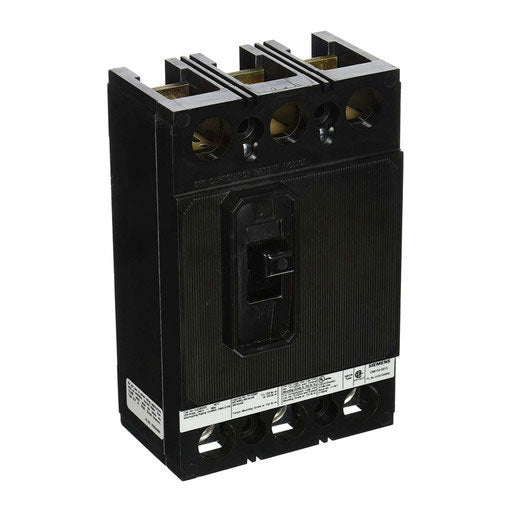

Siemens QJH23B090 90 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 22 kA@240 V – Bolt-On – QJ Series

The Siemens QJH23B090 is a 90 Amp, 3-pole molded case circuit breaker from the QJ Frame series. It is rated for 240 V with a 22 kA interrupting capacity at 240 V and features a thermal-magnetic trip mechanism. The breaker includes a non-interchangeable trip with LI (Long-Time and Instantaneous) trip functions and load-side lug terminals for bolt-on installation.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: QJ
• Frame: QJ
• Type: QJH2
• Catalog Number / MPN: QJH23B090
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 22 kA @ 240 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Configuration: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: QJH23B090
• Series: QJ
• Frame: QJ
• Type: QJH2
• Current Rating: 90 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Function: LI – Long-Time and Instantaneous
• UPC: 783643201187

Compatibility

The Siemens QJH23B090 is designed for compatible Siemens QJ Frame electrical distribution applications. Verify the specific panelboard, system voltage, mounting configuration, and breaker compatibility before installation.
