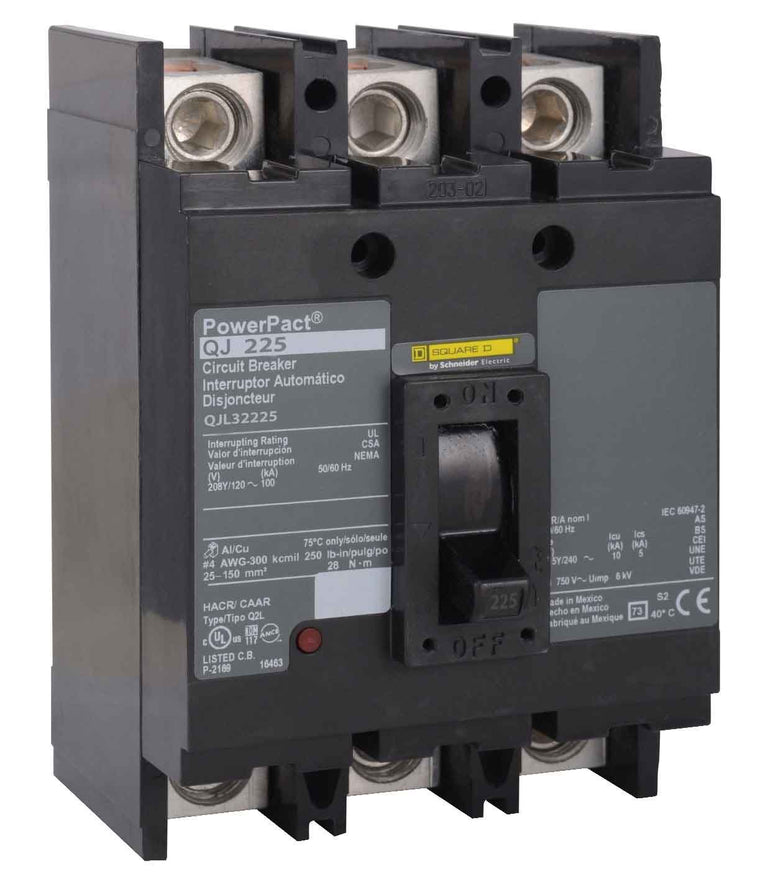

Square D QJL32225 225 Amp PowerPact QJL Molded Case Circuit Breaker – 3 Pole – 240V AC – 100 kA @ 240V

The Square D QJL32225 is a PowerPact QJL molded case circuit breaker designed for three-phase electrical distribution and circuit protection. Rated at 225A and 240V AC, it provides an extra-high interrupting capacity of 100kA at 240V. The breaker features a feed-through connection and a non-interchangeable trip unit, making it suitable for high-fault-current distribution applications.

Specifications

• Brand: Square D / Schneider Electric
• Product Series: PowerPact QJL
• Catalog Number: QJL32225
• Circuit Breaker Type: Molded Case Circuit Breaker (MCCB)
• Type: QJL
• Current Rating: 225A
• Number of Poles: 3
• Phase: 3-phase
• Voltage Rating: 240V AC
• Interrupting Capacity: 100kA at 240V AC
• Interrupting Class: Extra-high
• Connection Type: Feed-through
• Trip Unit: Non-interchangeable

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• MPN: QJL32225
• Product Family: PowerPact QJL
• Type Reference: QJL
• UPC:785901502104

Compatibility

Designed for compatible Square D PowerPact QJL feed-through distribution equipment. Suitable for three-phase, 240V AC installations requiring a 225A circuit breaker with extra-high interrupting capacity and a non-interchangeable trip unit.

Certifications

• UL Rating: UL Listed
• Interrupting Classification: Extra-high interrupting capacity
