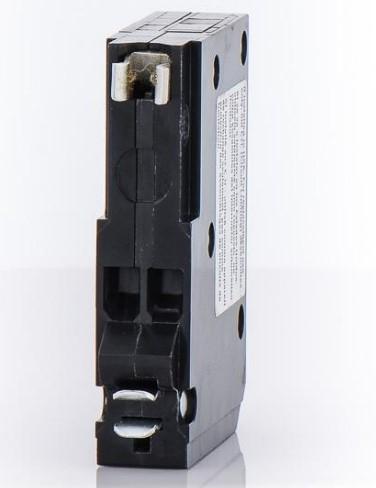

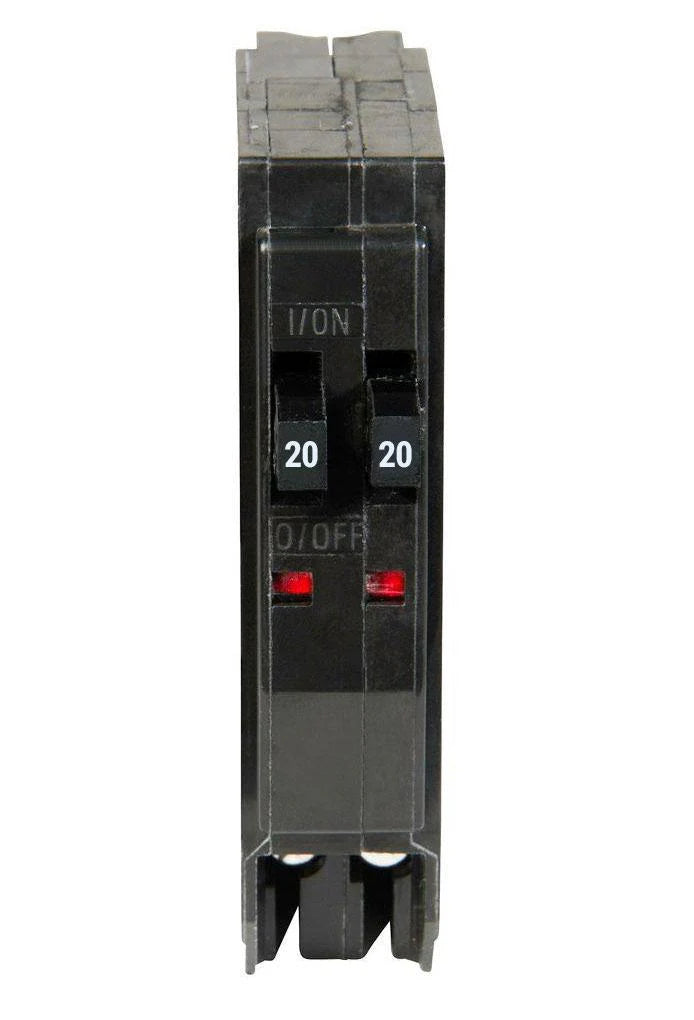

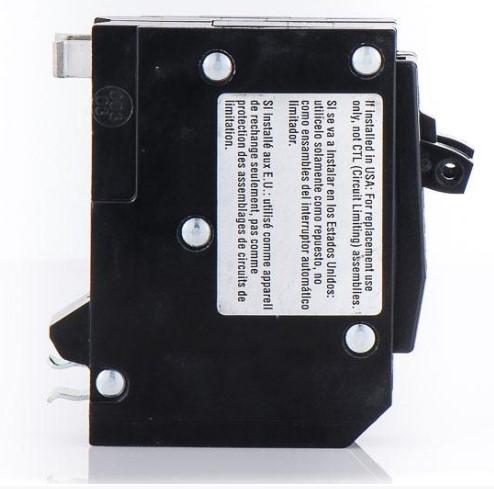

Square D QO2020 Tandem Circuit Breaker – 20A/20A – 2 × 1-Pole – 120/240VAC – 10kA – Plug-In – QO Series

The Square D QO2020 is a 20A/20A tandem circuit breaker designed to provide two independent 20-amp, single-pole circuits while occupying a single breaker space in compatible Square D QO load centers. This space-saving configuration is useful when additional branch circuits are required in a panel designed to accept tandem breakers.

The QO2020 features plug-in mounting, thermal-magnetic circuit protection, and Square D Visi-Trip indication for easier identification of a tripped circuit. This version features the no-hook / non-rejection configuration and is designed for residential electrical distribution applications.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Tandem Circuit Breaker
• Series: QO
• Catalog Number: QO2020
• Current Rating: 20A / 20A
• Circuit Configuration: 2 × 1-Pole Circuits
• Number of Panel Spaces: 1
• Voltage Rating: 120/240VAC
• Phase: Single Phase
• Interrupting Rating: 10kA
• Trip Technology: Thermal Magnetic
• Mounting Type: Plug-In
• Configuration: Tandem / Space-Saver
• Hook / Rejection Feature: No Hook
• Connection Type: Pressure Plate
• Wire Range: 14–8 AWG Copper or Aluminum
• Approx. Height: 3.2 in
• Approx. Width: 0.7–0.75 in
• Approx. Depth: 2.9 in
• Application: Residential branch circuit protection

Part Numbers & Identification

• Manufacturer Part Number (MPN): QO2020
• Catalog Number: QO2020
• Alternate Part Numbers: QO2020C, QO2020CP
• Alternate Model: Q02020
• Product Family: QO Tandem Circuit Breaker
• Brand: Square D
• Manufacturer: Schneider Electric
• UPC:785901400943

Compatibility

Designed for use in compatible Square D QO single-phase load centers specifically listed to accept tandem circuit breakers. Always verify the load center labeling and approved breaker type before installation.

Certifications

• UL Listed
• CSA Certified
