QO3125SL - Square D 125A 3 Pole 240VAC Circuit Breaker Sub Feed Lug Kit
Couldn't load pickup availability
Ask an expert
Description

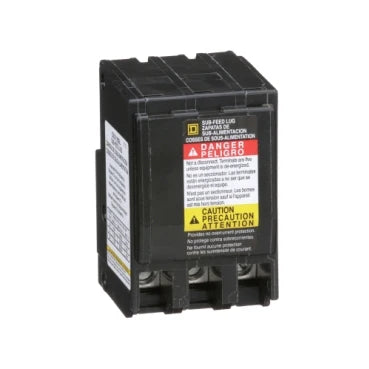

QO3125SL
QO3125SL is a 125 Amp, 3 pole circuit breaker sub feed lug kit by Square D designed for reliable power distribution in three-phase systems.This Square D QO3125SL sub feed lug kit supports up to 125 Amps with a 240 VAC voltage rating and a 10kA interrupting rating. It is plug-in mountable and compatible with wire sizes from AWG 12 to AWG 2/0 copper or aluminum. The product is engineered for use with QO Load Centers and NQOD merchandised panelboards.
- Key Specifications
- Amperage: 125A
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Plug-in
- Interrupt Rating: 10kA @ 240 VAC
- Wire Size Range: AWG 12 to AWG 2/0 (Copper/Aluminum)
- Series/Frame: QO
- Compatible with QO Load Centers and NQOD Panelboards
- Certifications: CSA, cULus, Prop 65, REACH, RoHS
Specifications
- Part Number: QO3125SL
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO Series
- Type : QO
- Voltage : 240 AC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 785901031338
- GTIN : 00785901031338
- Country of Origin : Mexico
- Dimensions : 2.241 in x 3.500 in
- Weight : 1
- Certification : CSA;cURus
- Wire Size : AWG 12 to AWG 2/0, Cu/Al
- Vendor My Circuit Breakers
