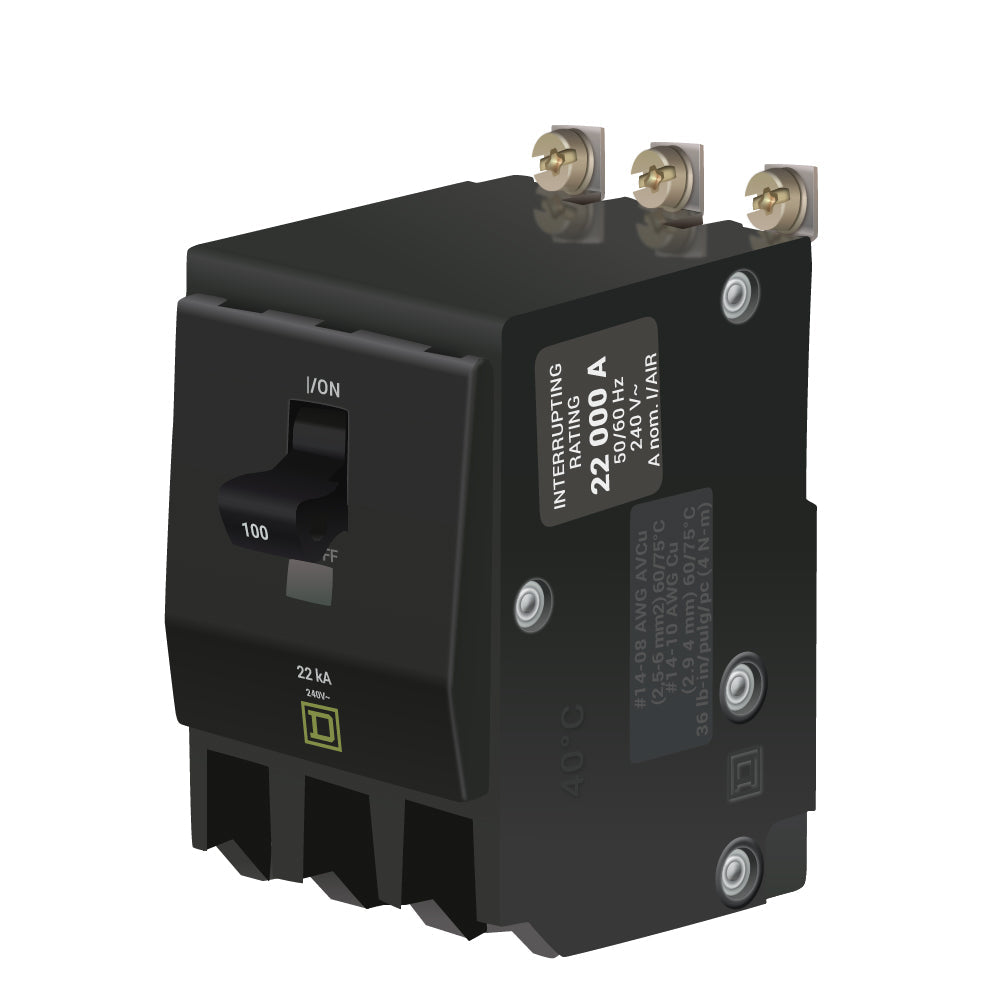

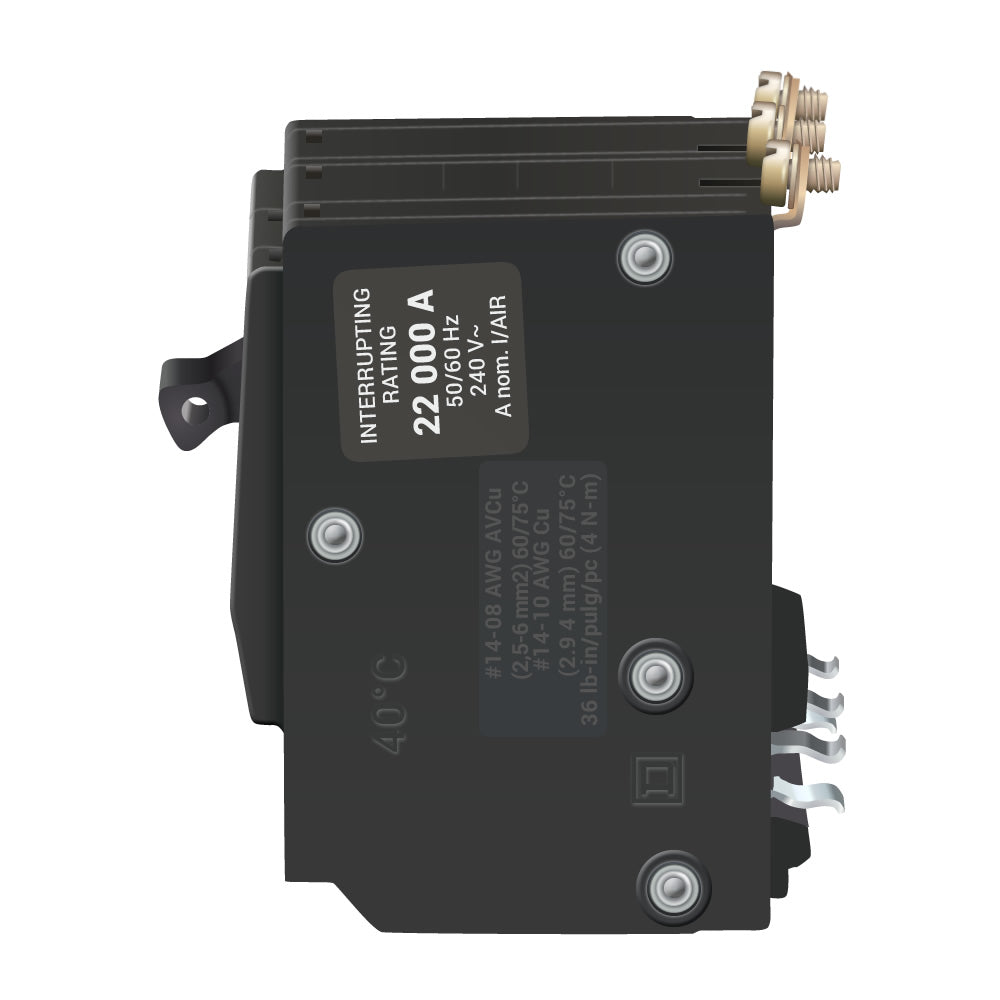

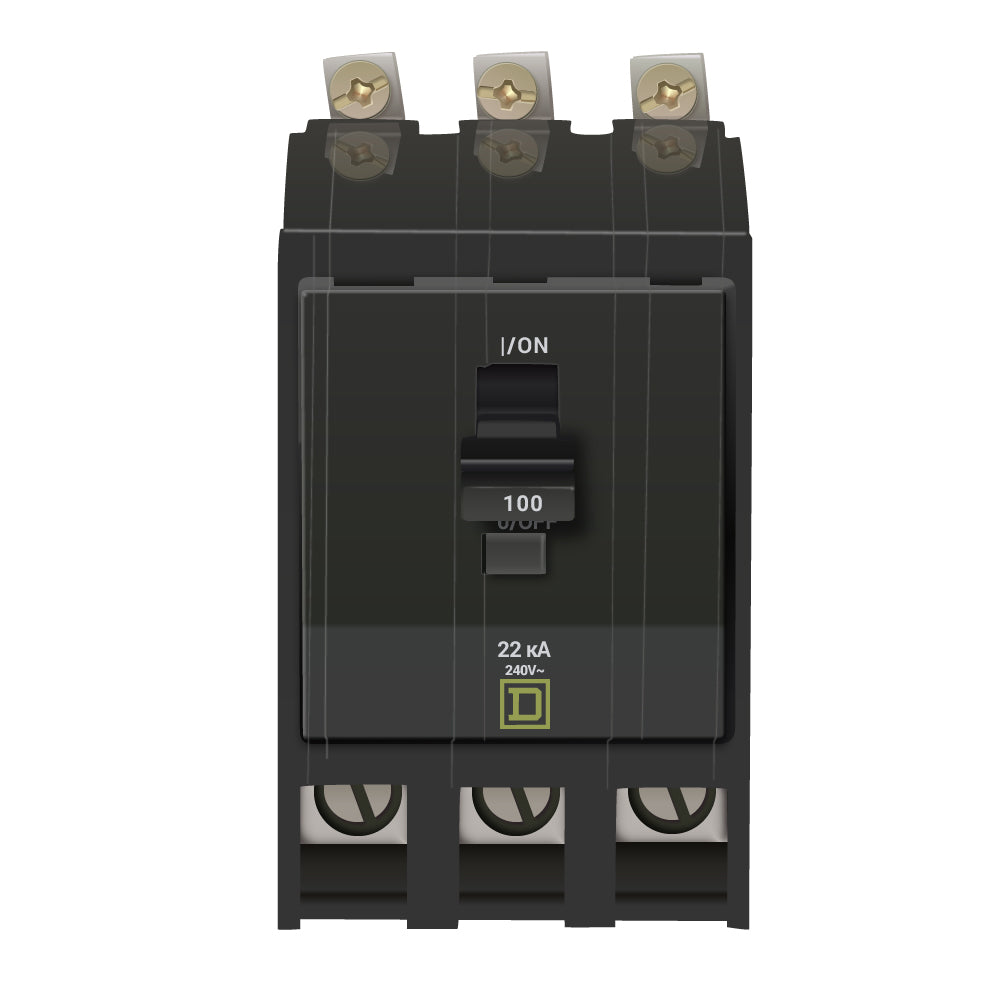

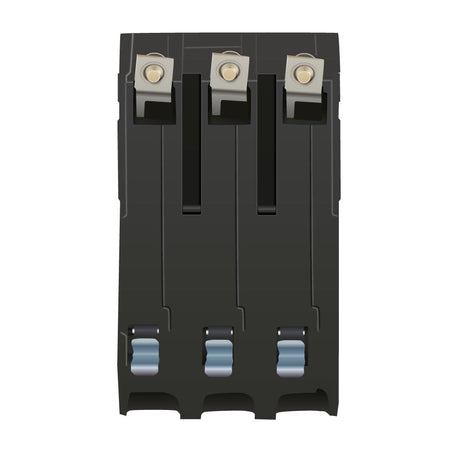

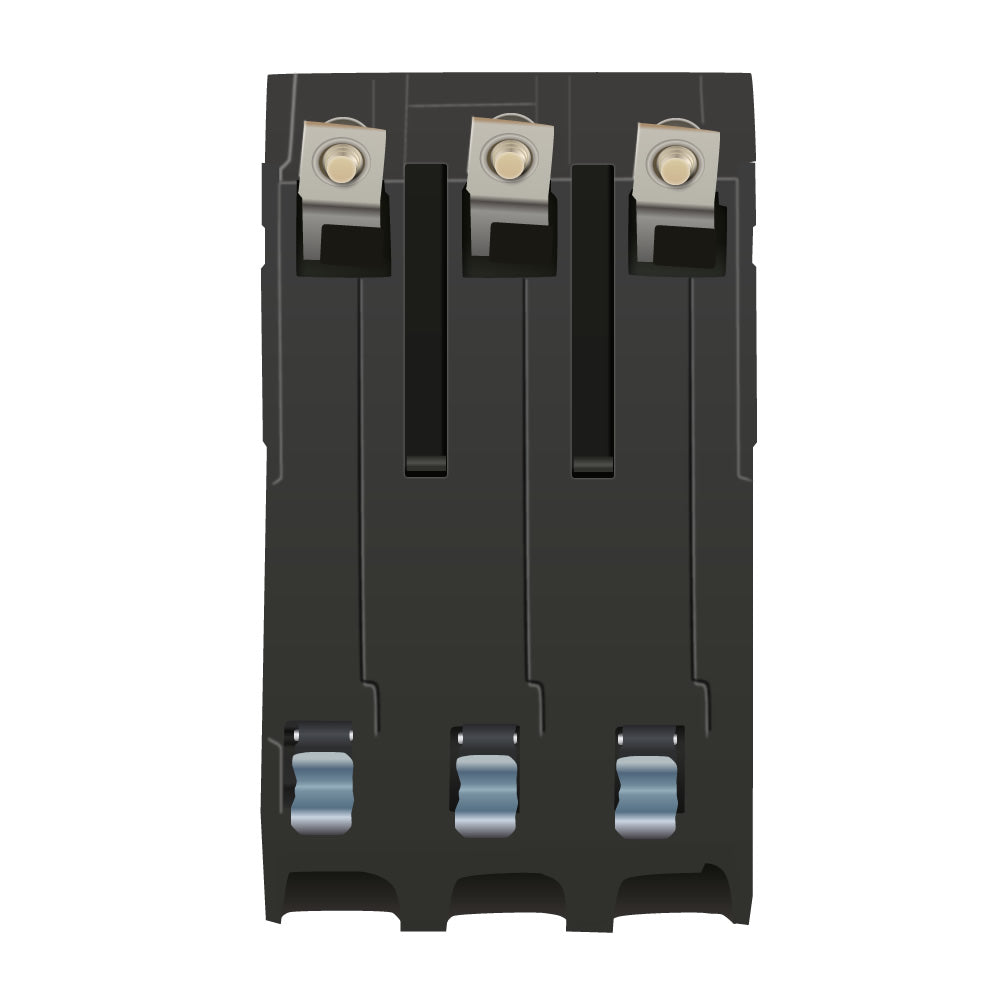

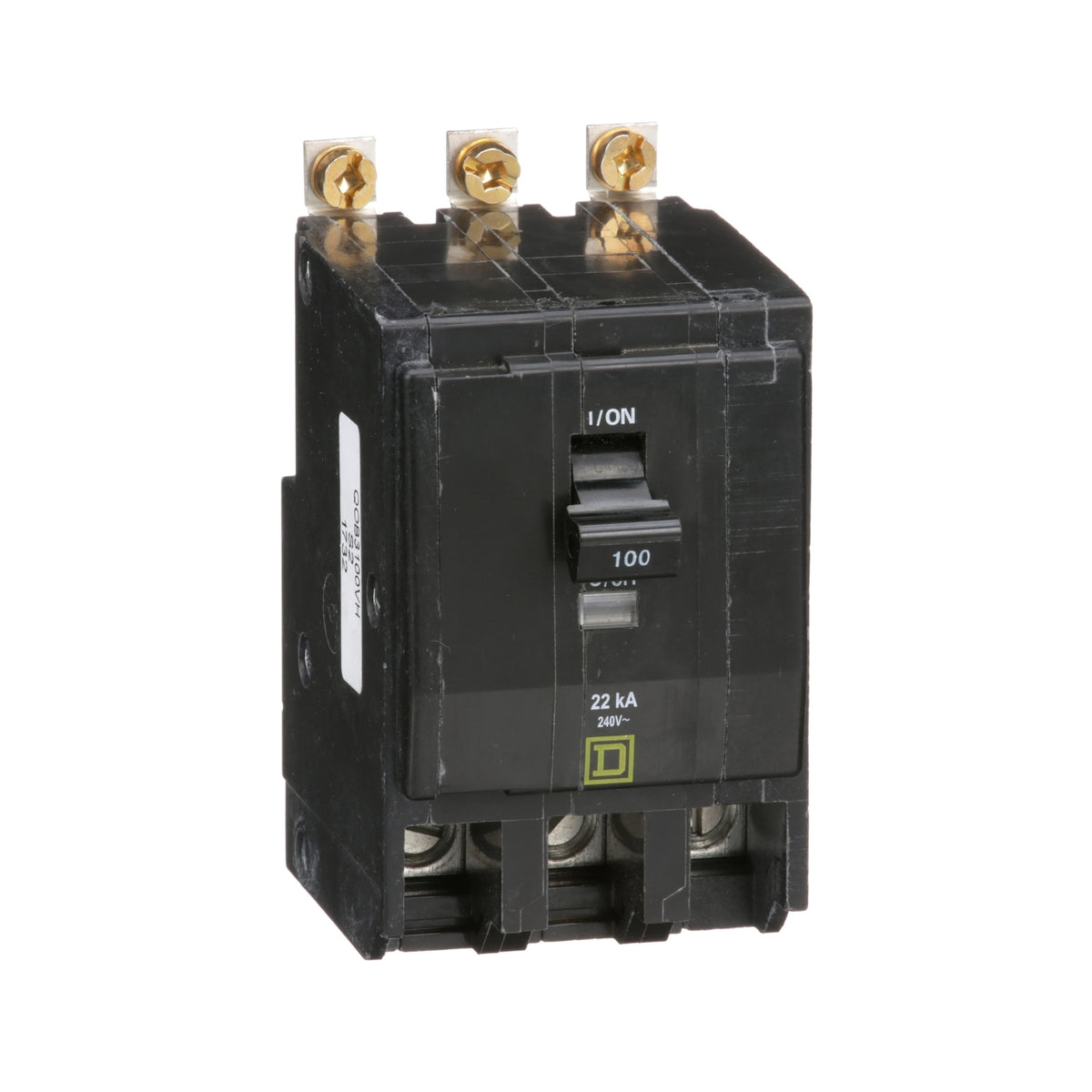

Square D QOB3100VH Circuit Breaker – 100A – 3-Pole – 240V – 22kA – Bolt-On – QO Series

The Square D QOB3100VH is a 100A, 3-pole bolt-on miniature circuit breaker designed for compatible Square D QO electrical distribution equipment. It is rated for 120/240V and 240V AC systems and provides a 22kA interrupting rating at the specified system voltages.

The breaker features HACR rating, Visi-Trip indication, and box-type lugs for copper or aluminum conductors. It occupies 3 panel spaces and is rated for operation at a 40°C ambient temperature.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Miniature Circuit Breaker
• Series: QO
• Catalog No.: QOB3100VH
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 120V AC, 120/240V AC, 240V AC
• Voltage Rating: 240V AC
• Interrupting Rating: 22kA
• Interrupting Rating at 120/240V AC: 22kA, 50/60Hz
• Interrupting Rating at 240V AC: 22kA, 50/60Hz
• Interrupting Rating at 120V AC: 22kA, 50/60Hz
• Circuit Breaker Type: Standard
• Mounting Type: Bolt-On
• Ratings: HACR Rated
• Electrical Connection: Box Lugs
• Trip Indication: Visi-Trip
• Number of Panel Spaces: 3
• Wire Range: 4 AWG–2/0 AWG Copper or Aluminum
• Ambient Rating: 104°F (40°C)

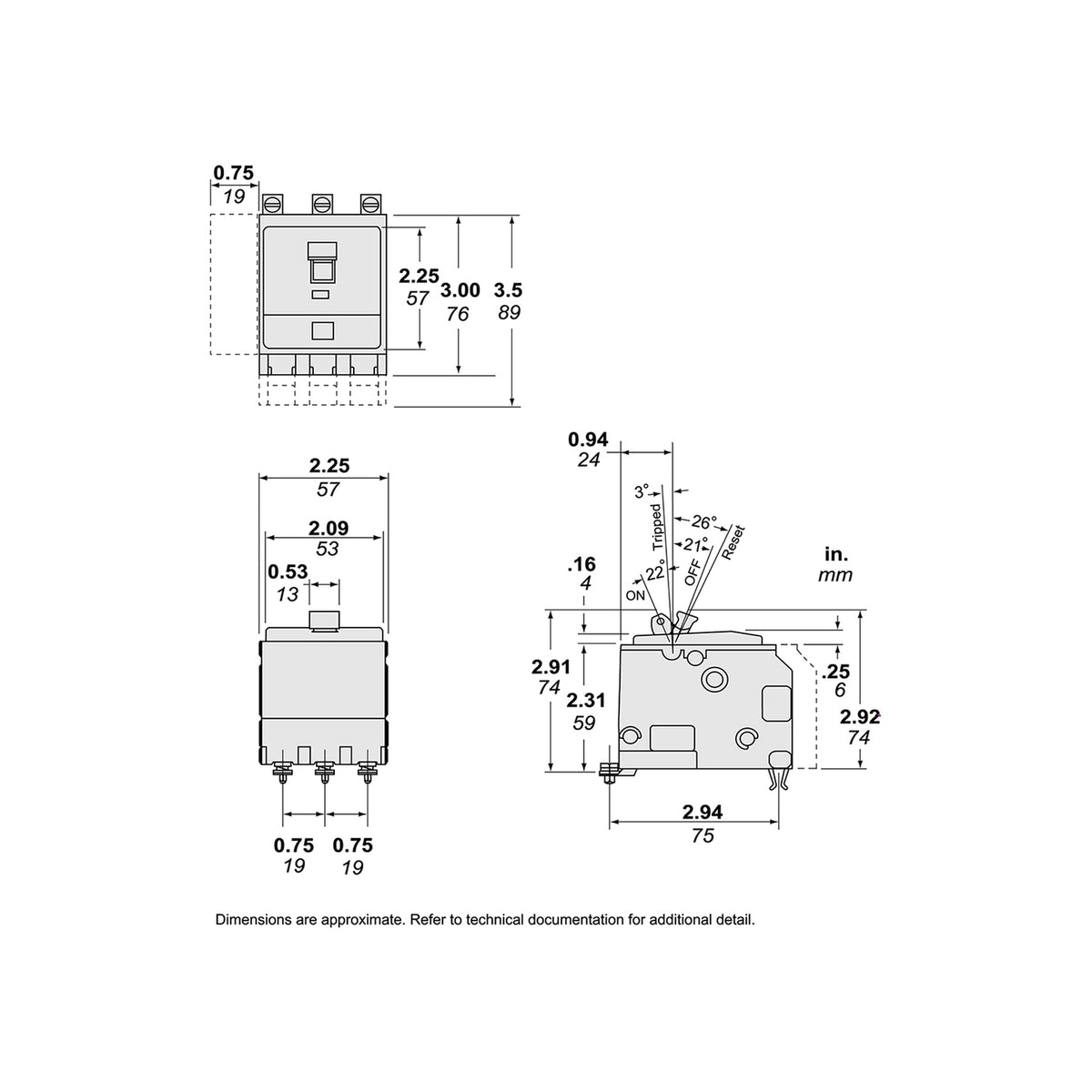

• Dimensions (H × W × L): 3.5 × 2.25 × 2.91 in
• Application: Branch Circuit Protection
• Authenticity: Authentic Square D Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): QOB3100VH
• Catalog Number: QOB3100VH
• Alternate Model: Q0B3100VH
• Product Family: QO / QOB Series
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: 100A Circuit Breaker
• Model: QOB3100VH
• upc:785901054801

Compatibility

Designed for use with compatible Square D QO Series electrical distribution equipment that accepts QOB bolt-on circuit breakers. The QOB3100VH is suitable for compatible 100A, 3-pole, 120/240V and 240V AC applications.

Always verify the exact panelboard or load center model, system voltage, interrupting requirements, conductor size, panel space requirements, and approved breaker combinations before installation.

Certifications

• CSA Certified
• UL Listed
• HACR Rated
• Authentic Square D Product
