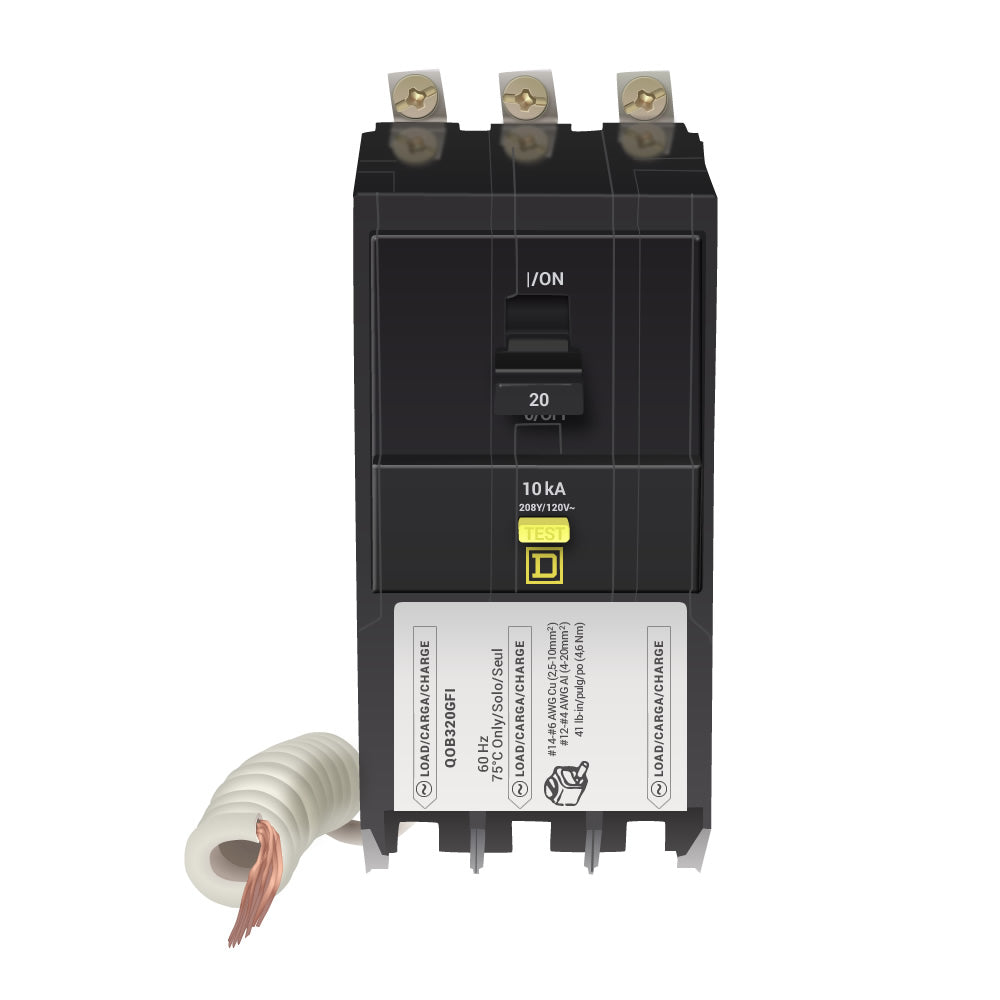

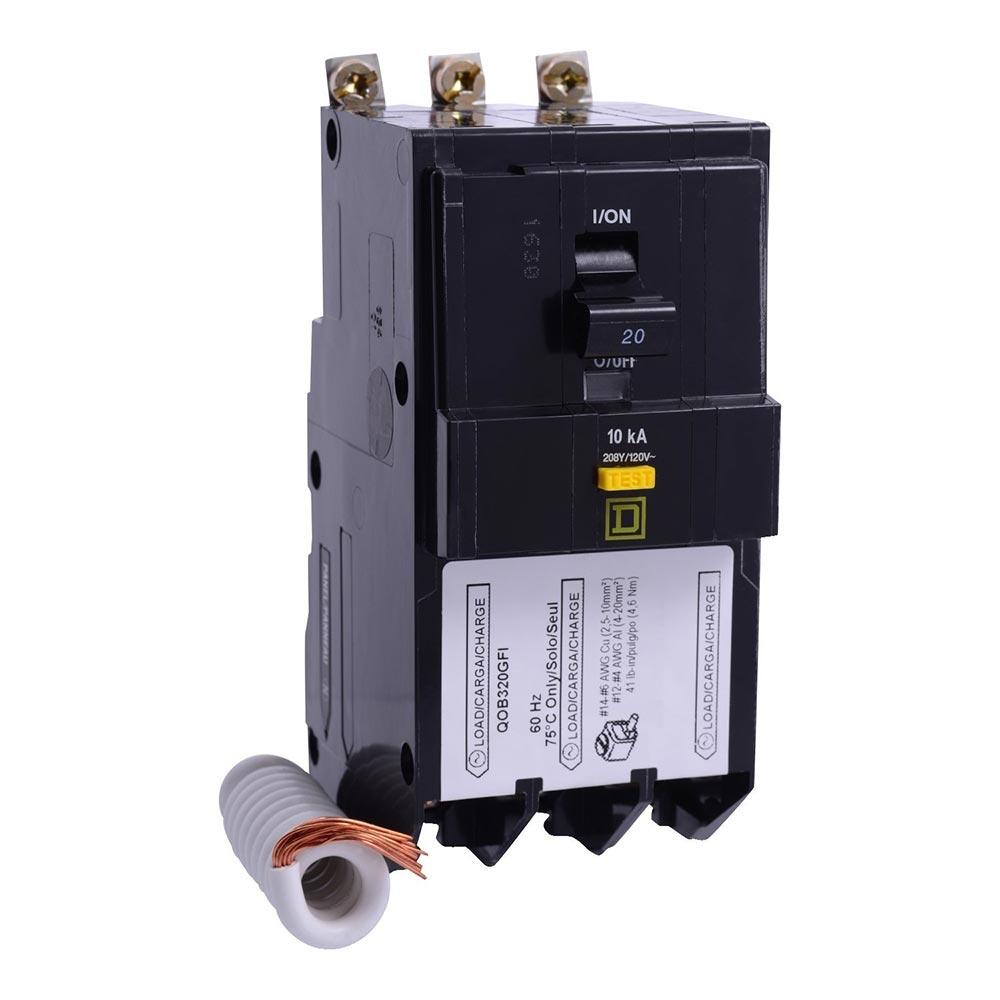

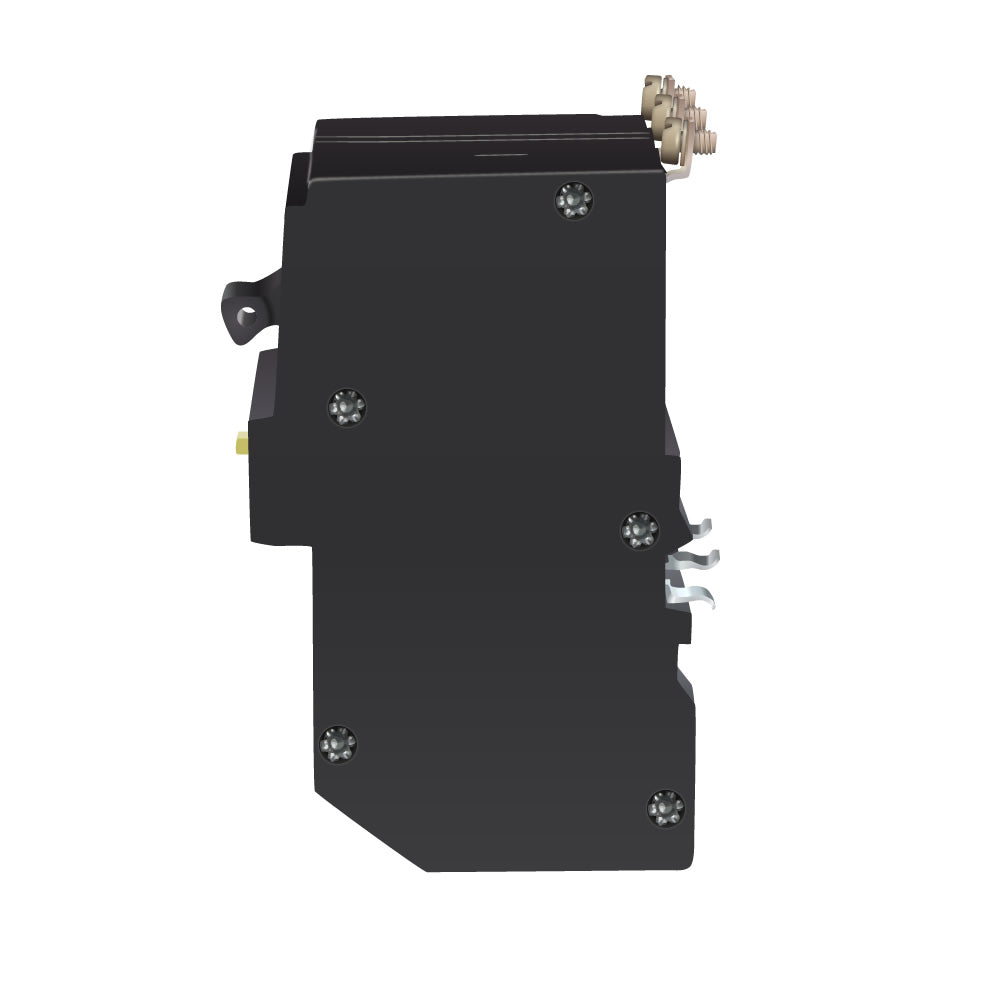

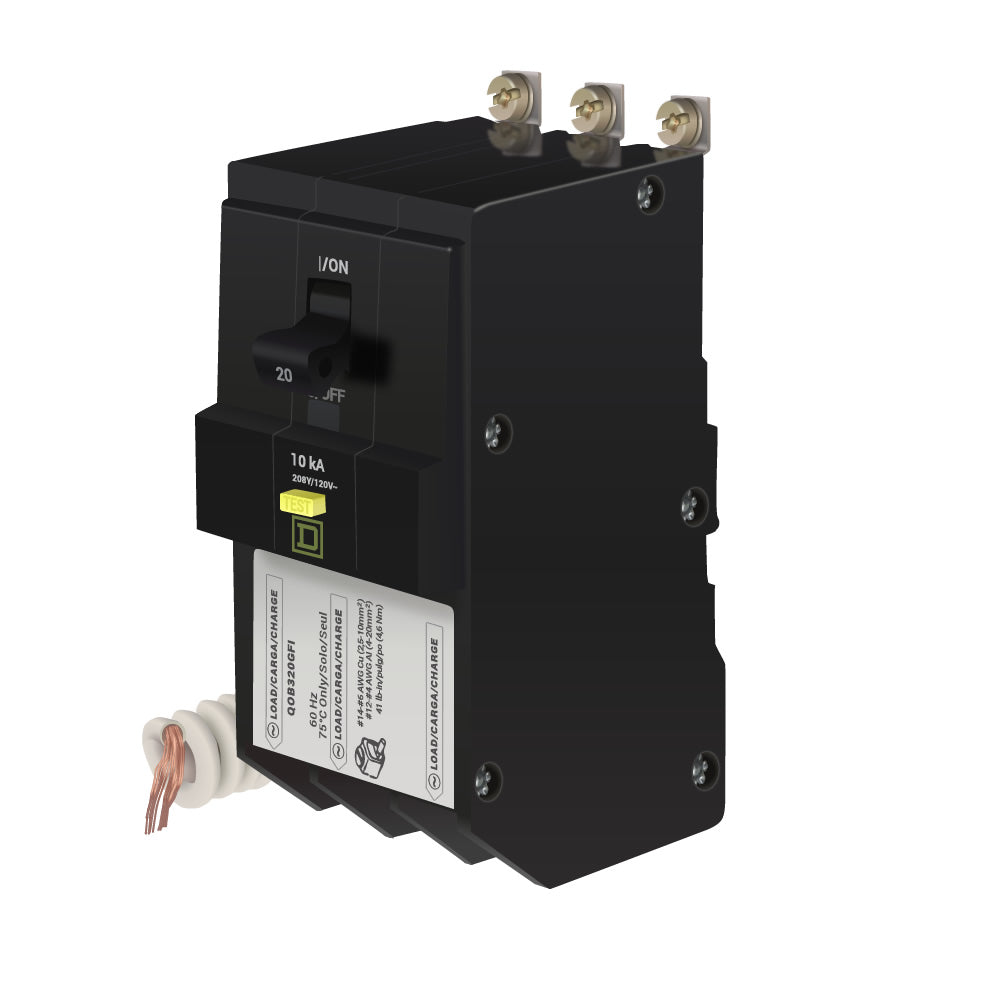

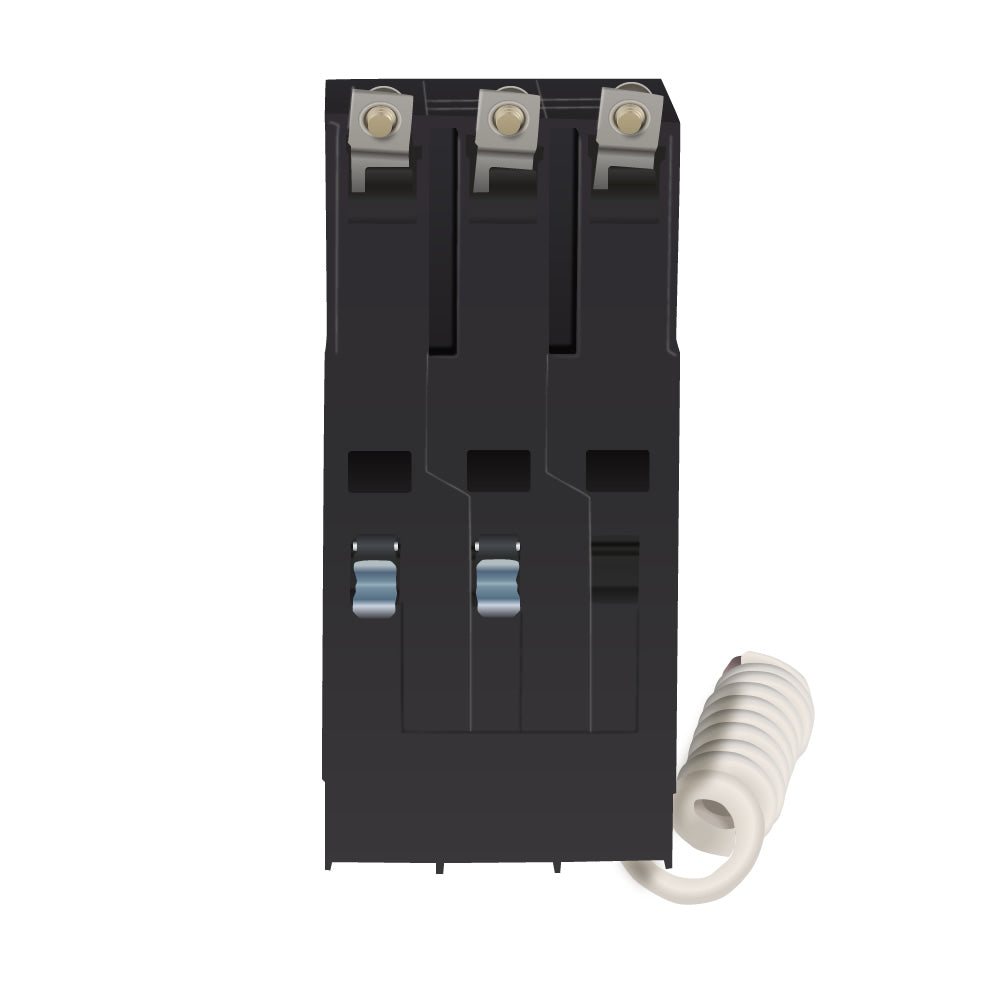

Square D QOB320GFI GFCI Circuit Breaker – 15A – 3-Pole – 208Y/120VAC – 10kA – Bolt-On – QO/QOB Series

The Square D QOB320GFI is a 3-pole GFCI circuit breaker designed to provide overcurrent protection, switching, and ground-fault protection in compatible electrical systems. The detailed specifications provided rate this breaker at 15A at 208Y/120VAC with a 10kA breaking capacity and bolt-on mounting.

The breaker features a thermal-magnetic trip mechanism, quick-make and quick-break operation, positive handle indication, and VisiTrip trip indication. It includes a 6mA ground-fault protection device with pigtail and is designed for compatible QO/QOB applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: GFCI Circuit Breaker
• Catalog No.: QOB320GFI
• Product Family: QO / QOB Series
• Current Rating: 15A @ 208Y/120VAC
• Number of Poles: 3-Pole
• Voltage Rating: 208Y/120VAC
• Breaking Capacity: 10kA
• Mounting Type: Bolt-On
• Protection Type: Thermal-Magnetic with Ground-Fault Protection
• Ground-Fault Protection: 6mA
• Ground-Fault Connection: Pigtail
• Trip Mechanism: Over-Center, Trip-Free Toggle
• Operating Action: Quick-Make / Quick-Break
• Trip Indication: VisiTrip
• Handle Indication: Positive Handle Indication
• Application: Overcurrent Protection, Switching, and Ground-Fault Protection
• Applicable Systems: AC and DC systems

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QOB320GFI
• Catalog Number: QOB320GFI
• Product Family: Square D QO / QOB Series
• Series: QO / QOB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: GFCI Circuit Breaker
• Model: QOB320GFI
• Breaker Configuration: 3-Pole
• Ground-Fault Configuration: 6mA GFCI with Pigtail
• upc:785901732228

Compatibility:

Designed for use with compatible Square D QO/QOB electrical distribution equipment accepting bolt-on QO/QOB circuit breakers. The QOB320GFI provides thermal-magnetic overcurrent protection together with 6mA ground-fault protection and is intended for compatible AC/DC circuit applications.

Always verify the exact panelboard or load center model, approved breaker type, system voltage, current rating, pole configuration, interrupting rating, and ground-fault requirements before installation.

Certifications:

• UL Listed
• UL File: E84967
• CSA Certified
• CSA Master Contract: 153555
• QO / QOB Series
• 3-Pole
• 15A @ 208Y/120VAC
• 10kA Breaking Capacity
• Bolt-On Mounting
• 6mA Ground-Fault Protection
• VisiTrip Trip Indication
