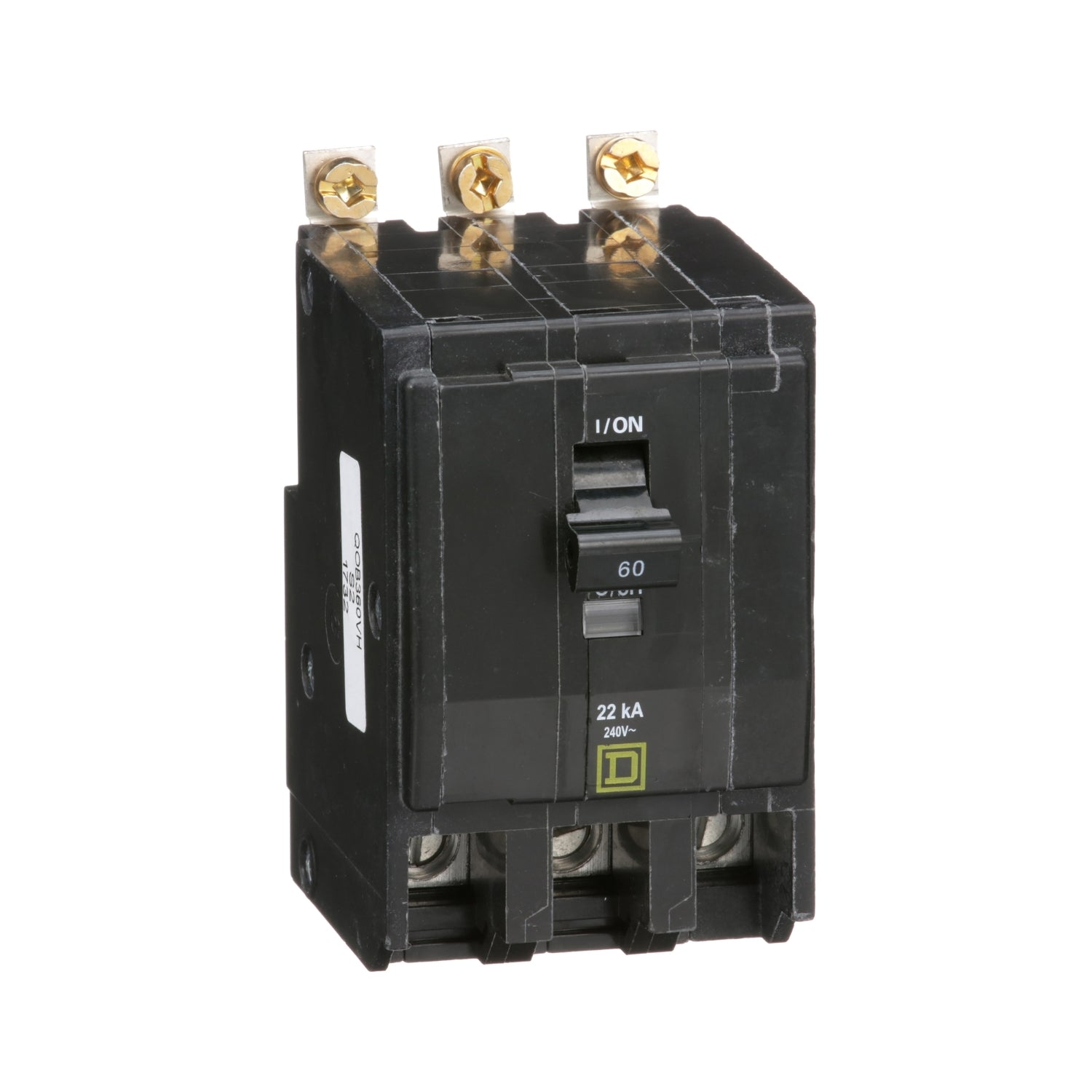

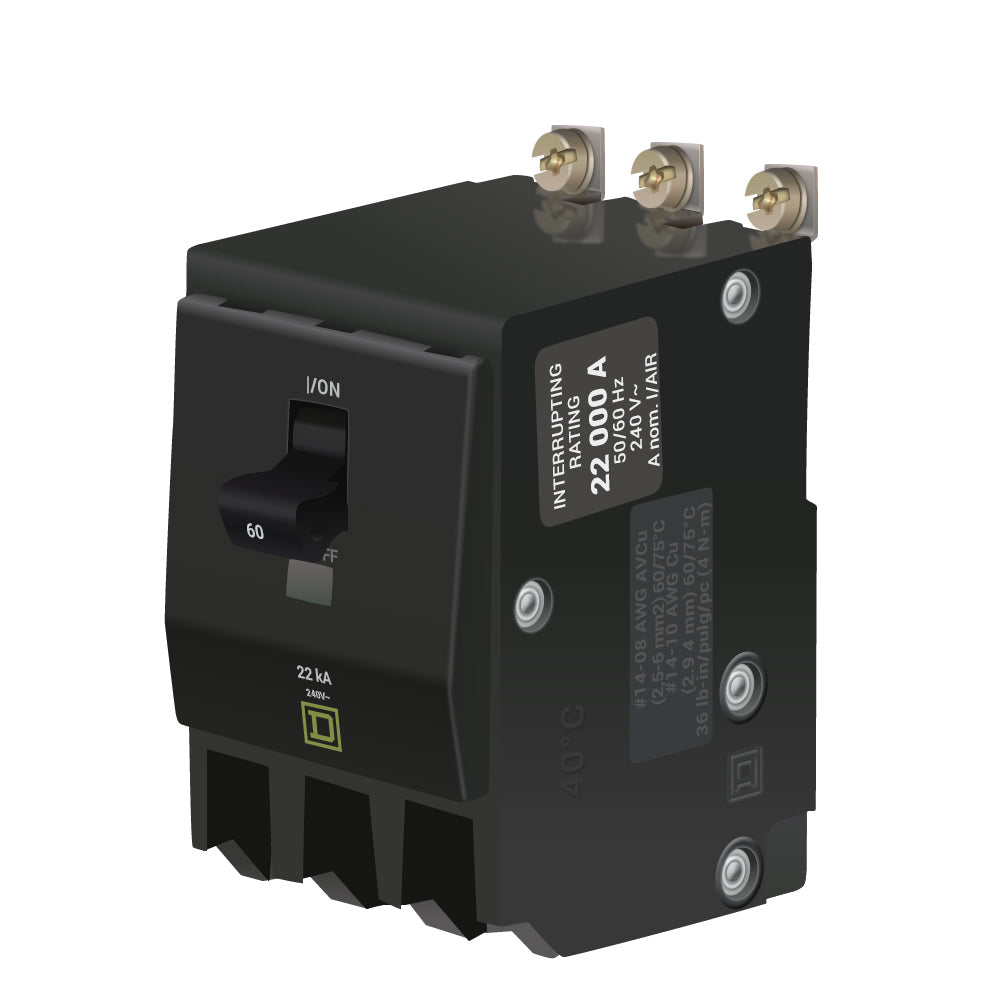

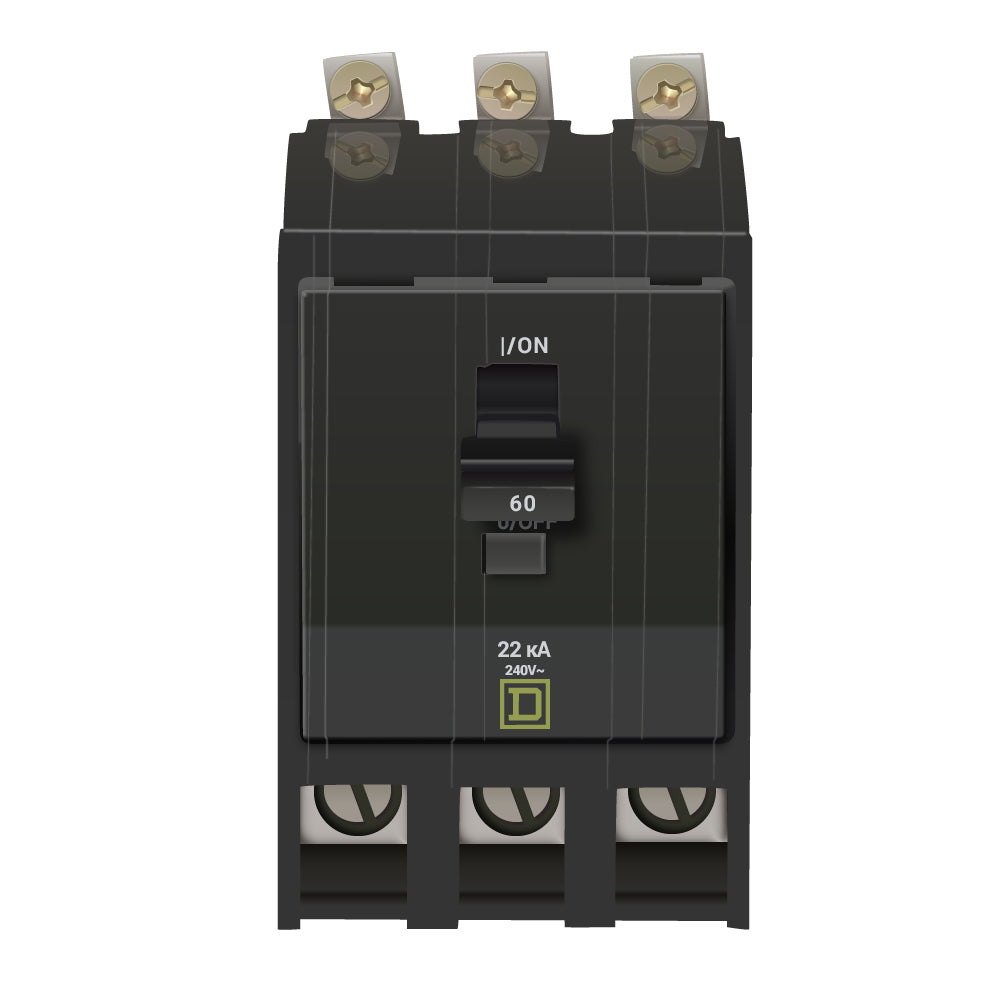

Square D QOB360VH Circuit Breaker – 60A – 3-Pole – 120/240V – 22kA – Bolt-On – QO Series

The Square D QOB360VH is a 60A, 3-pole bolt-on circuit breaker designed for compatible QO Series electrical distribution equipment. It has a 120/240V AC system voltage rating and a 22kA interrupting rating at 120/240V, 240V, and 120V AC at 50/60 Hz. The breaker features thermal-magnetic protection, box-lug terminals, and accommodates 8–2 AWG copper or aluminum wire.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Miniature Circuit Breaker
• Series: QO
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 120V AC, 120/240V AC, 240V AC
• Interrupting Rating: 22kA
• Circuit Breaker Type: Standard
• Trip Technology: Thermal-Magnetic
• Ratings: HACR Rated
• Mounting Type: Bolt-On
• Electrical Connection: Box Lugs
• Wire Size: 8–2 AWG Copper or Aluminum
• Number of Panel Spaces: 3
• Ambient Rating: 104°F (40°C)
• Dimensions (H × W × L): 3.12" × 2.25" × 2.91"
• Application: Circuit protection for compatible QO Series electrical distribution equipment
• Authenticity: Authentic Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QOB360VH
• Catalog Number: QOB360VH
• Alternate Model: Q0B360VH
• Product Family: QO Series Circuit Breakers
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: 60A Circuit Breaker
• upc:785901054832

Compatibility:

Designed for use with compatible Square D QO Series electrical distribution equipment that accepts 3-pole bolt-on circuit breakers. The QOB360VH is suitable for 60A, 3-phase, 120/240V AC applications and features box-lug terminals for 8–2 AWG copper or aluminum conductors. Always verify the specific panelboard or load center model, approved breaker type, voltage, and wiring requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• HACR Rated
• Authentic Square D Product
