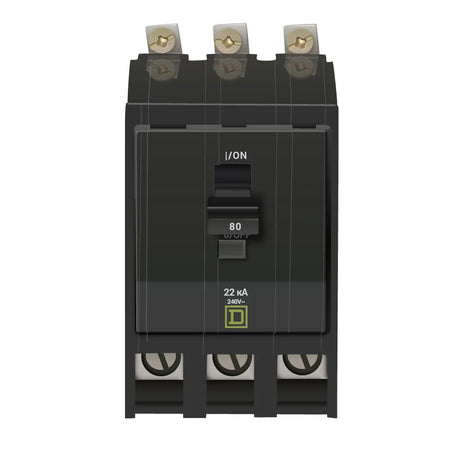

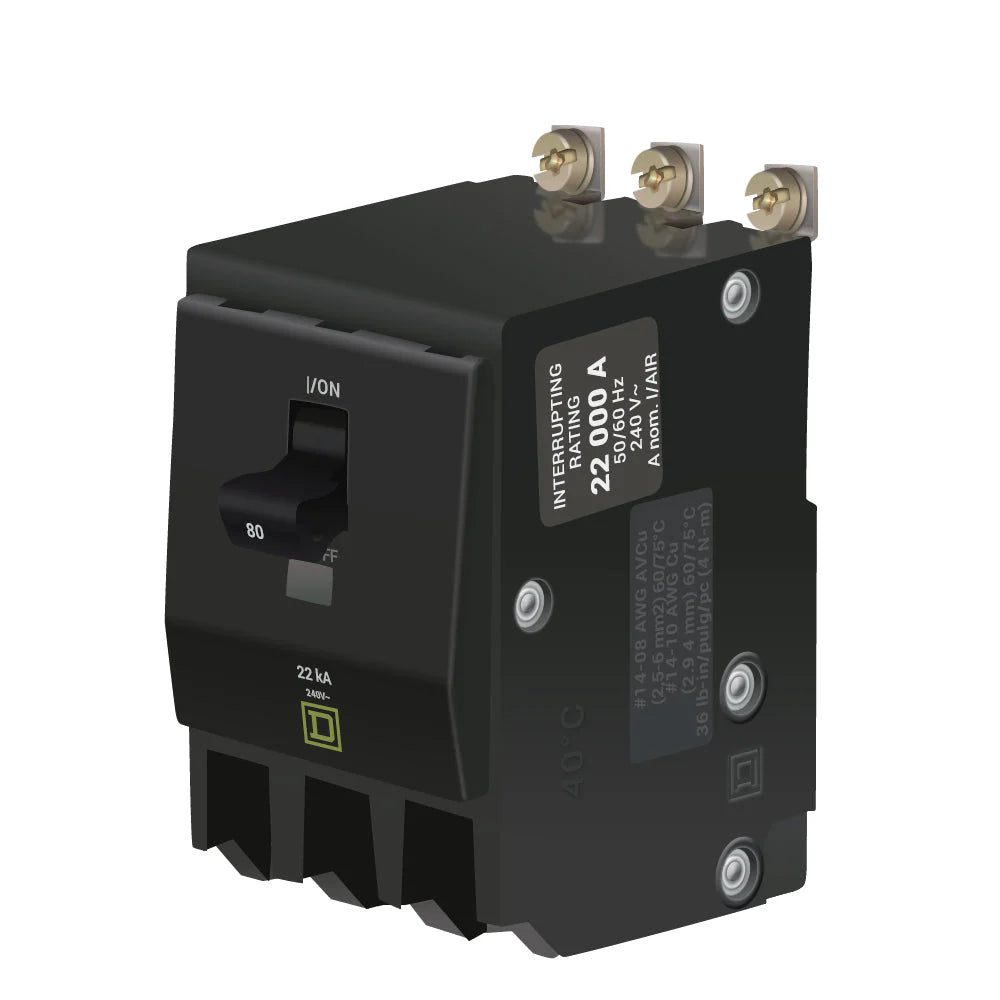

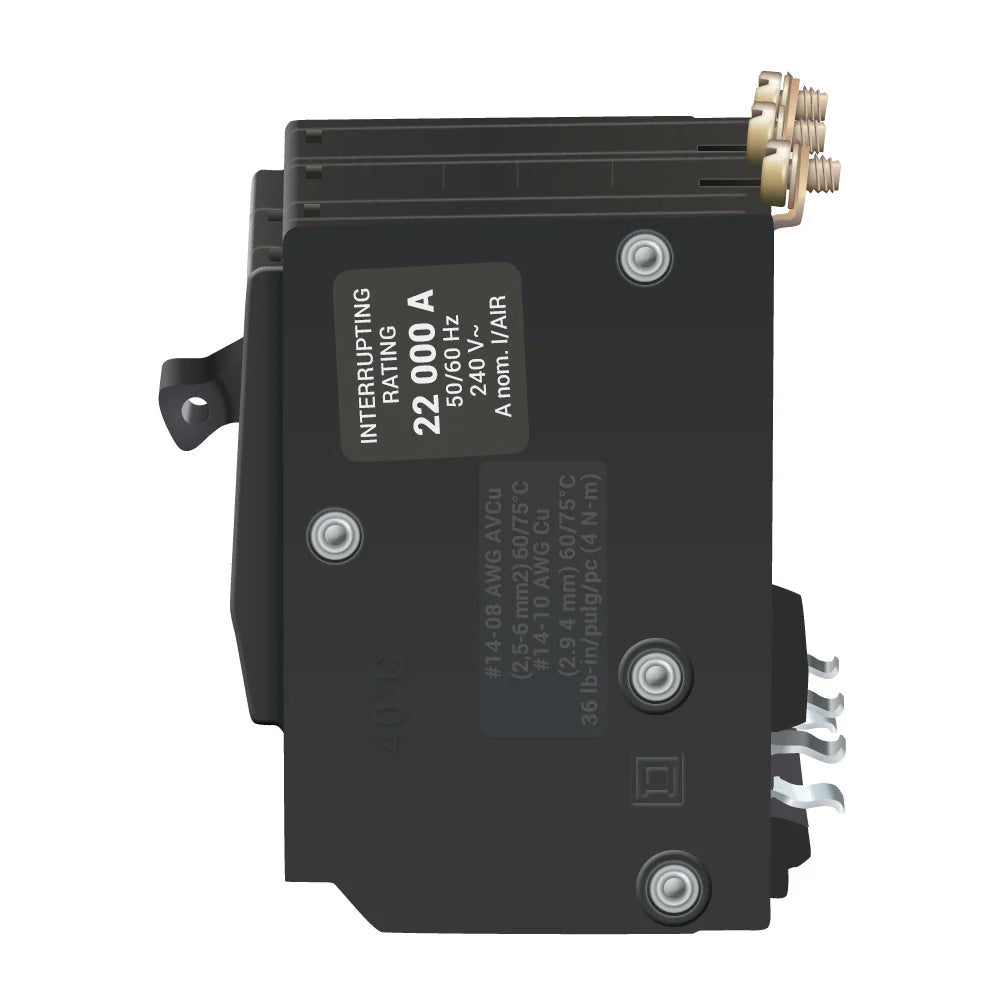

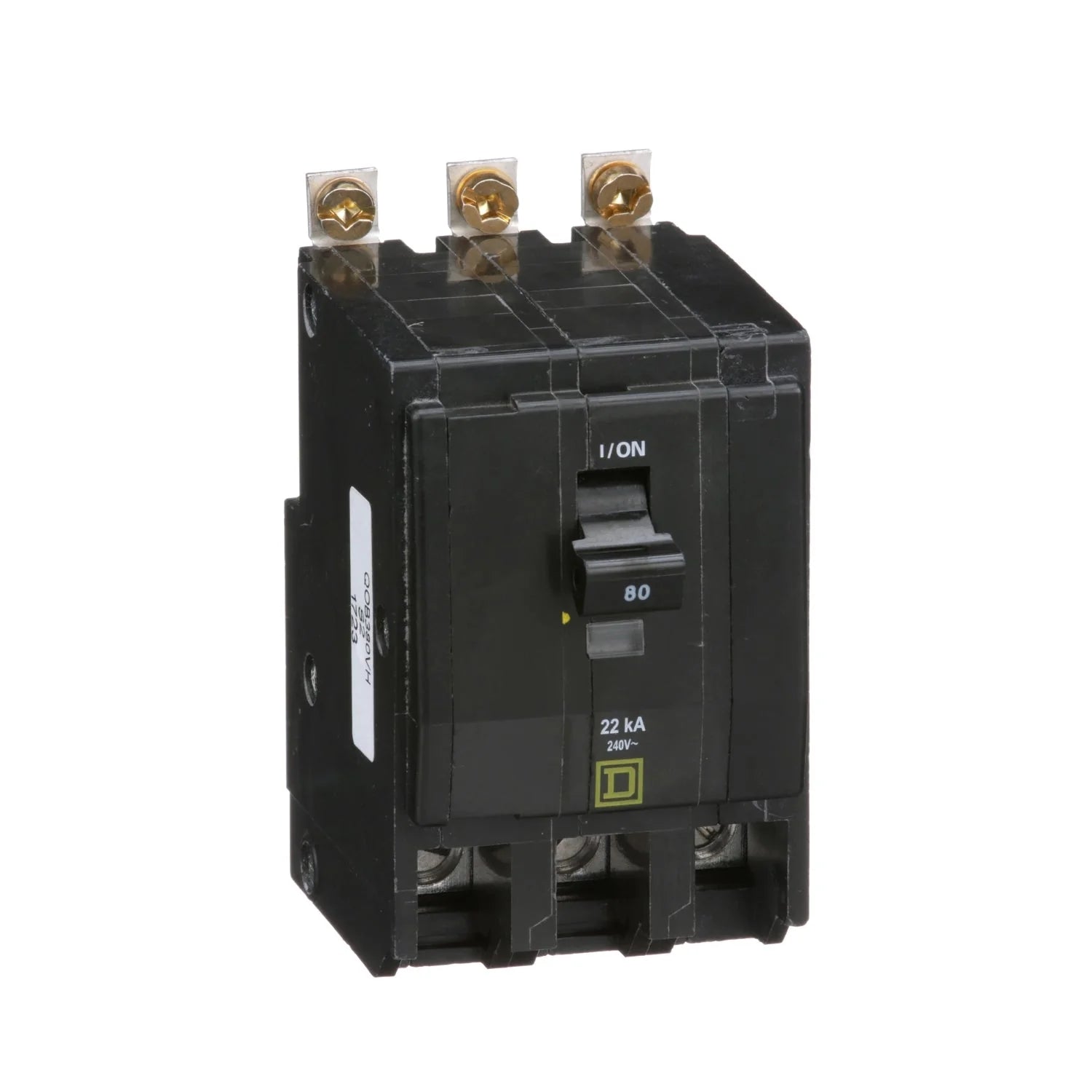

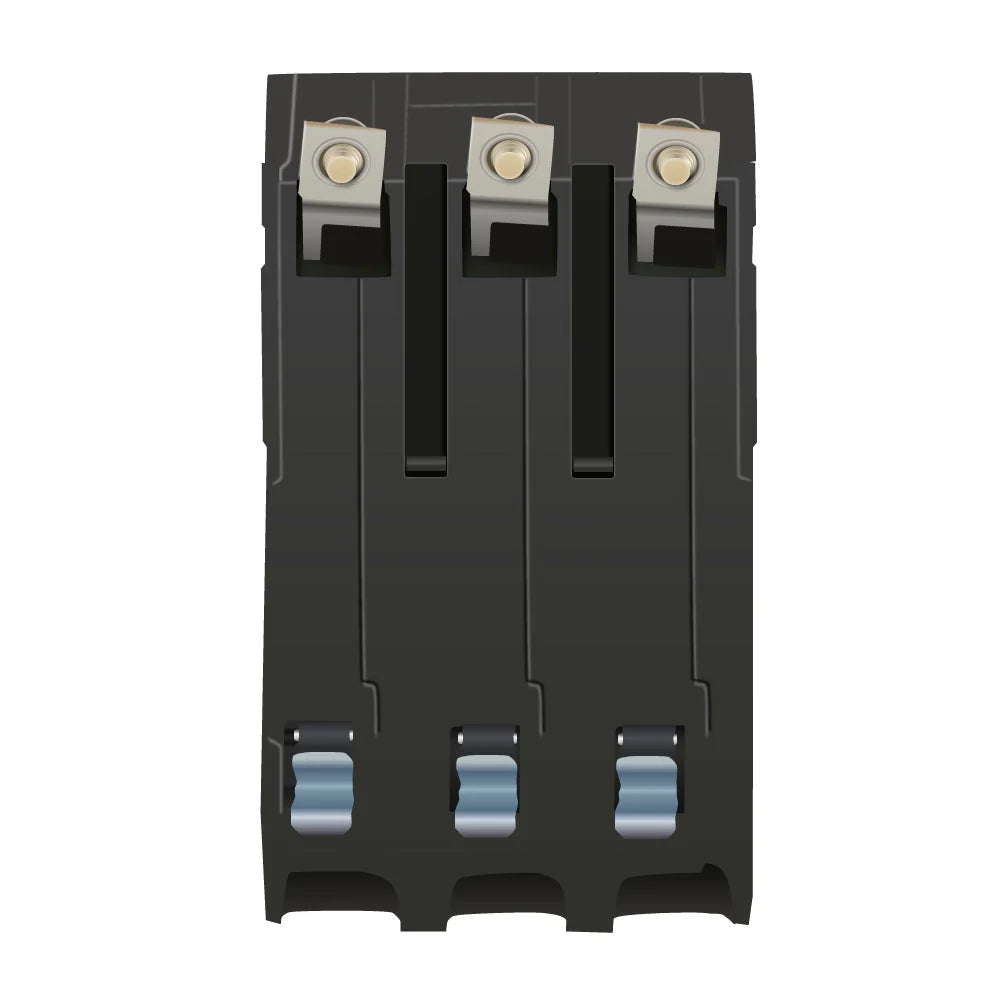

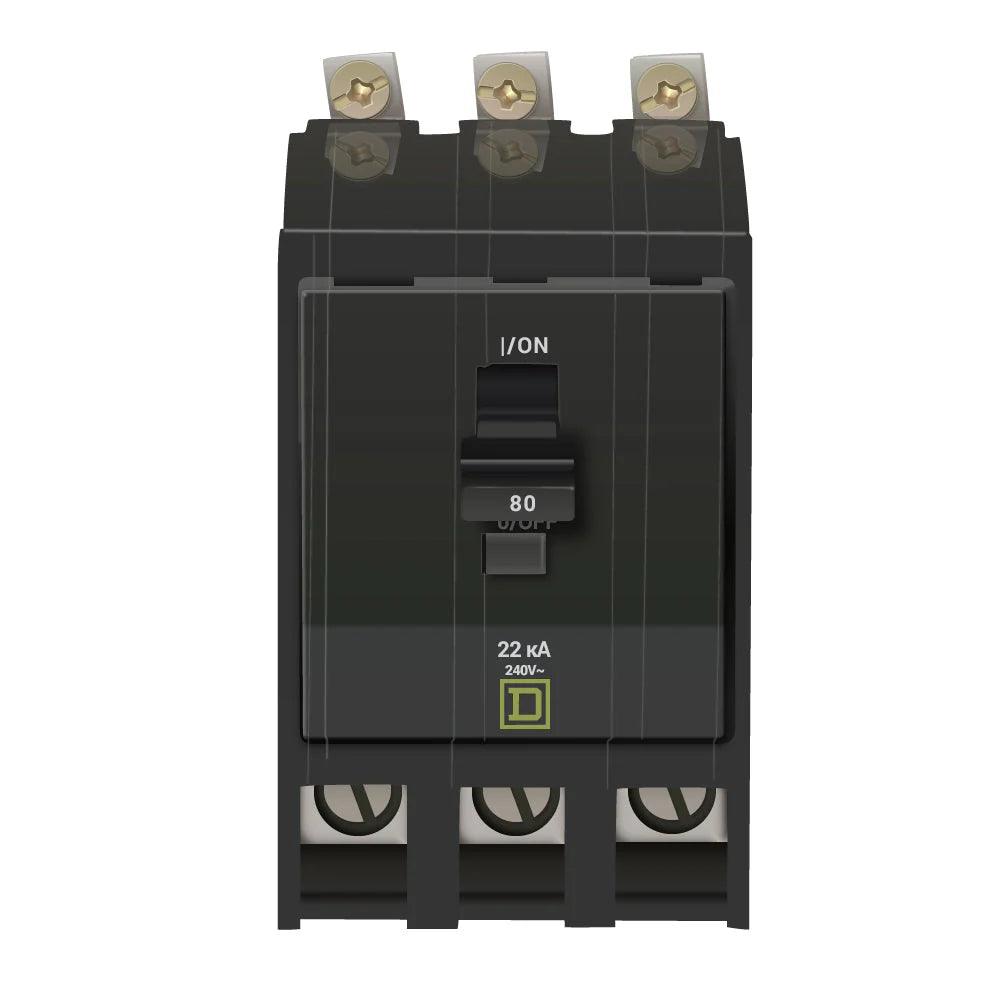

Square D QOB380VH Circuit Breaker – 80A – 3-Pole / 3-Phase – 240V – 22kA @ 240V – Bolt-On – QOB Series

The Square D QOB380VH is an 80A, 3-pole, 3-phase bolt-on molded case miniature circuit breaker from the Square D QOB Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The breaker has a maximum voltage rating of 240V and provides a standard interrupting rating of 22kA at 240V. It is designed for use with compatible QOB Series load centers.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Miniature Circuit Breaker
• Product Family: QOB
• Series: QOB
• Catalog No.: QOB380VH
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 240V
• Interrupting Rating: 22kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Application: Electrical Distribution and Overcurrent Protection
• Used With: QOB Series Load Centers
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QOB380VH
• Catalog Number: QOB380VH
• Model: QOB380VH
• Product Family: Square D QOB Circuit Breakers
• Series: QOB
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Miniature Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• UPC:785901054856

Compatibility:

Designed for use with compatible Square D QOB Series load centers that accept QOB Series bolt-on circuit breakers. The QOB380VH provides 80A, 3-pole thermal-magnetic protection for compatible 240V electrical distribution applications.

The breaker features Long-Time and Instantaneous (LI) trip functions and a 22kA interrupting rating at 240V. Always verify the specific load center model, approved breaker type, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• 80A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 22kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Bolt-On Mounting
• QOB Series
• Compatible with QOB Series Load Centers
